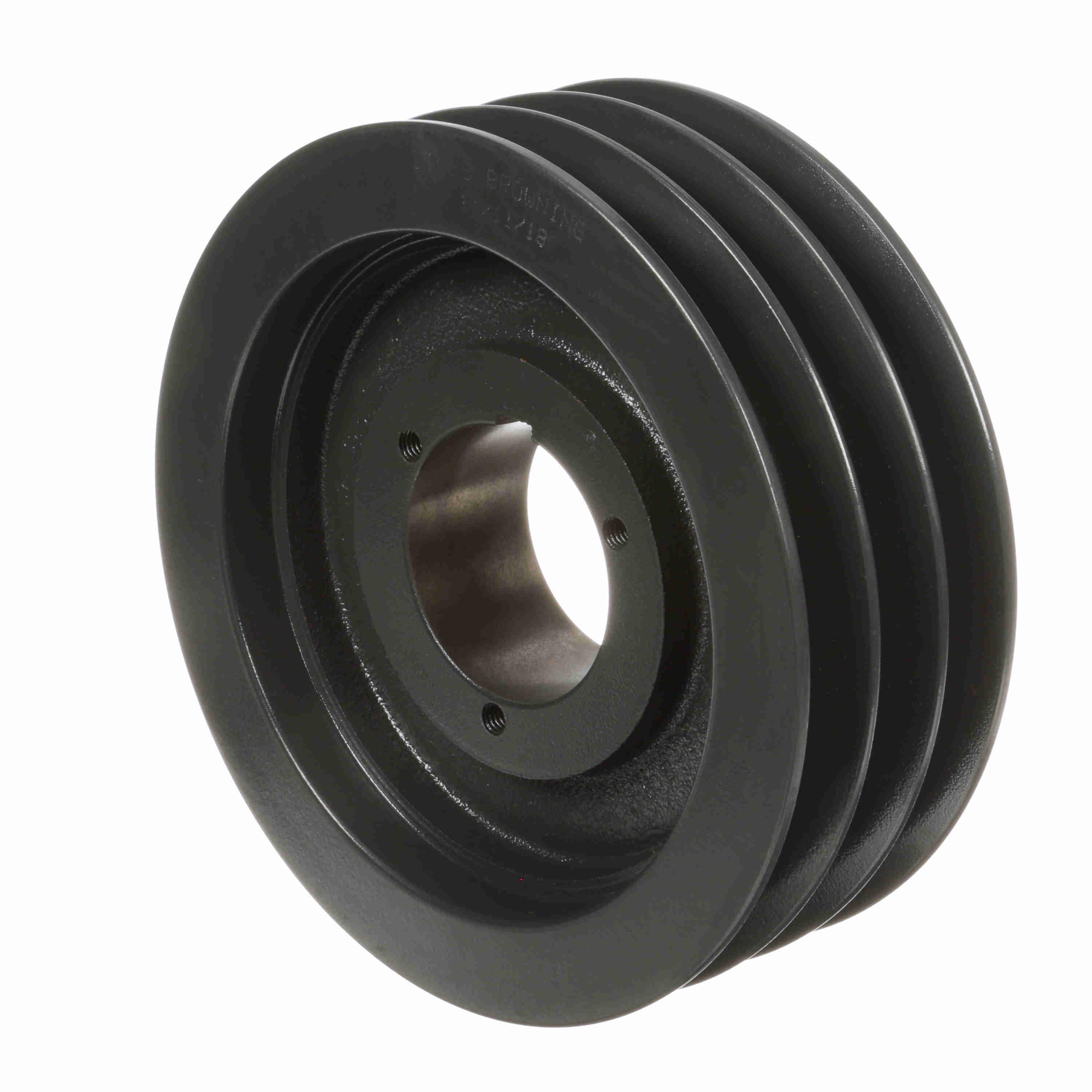

BROWNING 1009497 3TC88 V-Belt Sheave, Multiple, Bushed Bore, 3 Groove, Cast Iron, 9.2 in OD, 3/4 to 2-11/16 in Bore Dia, Q1 Bushing Type
9 1/5"
Get it by Monday, Aug 17
€887.07 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | C Series |
| Bore Dia. | 3/4" to 2 11/16" |
| Bore Type | Split Taper |
| Bushing Type | Q1 |
| Face Width | 3 1/4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 8 4/5" |
| Min. Pitch Dia. | 8 4/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 3 |
| Outside Dia. | 9 1/5" |
| Overall Length | 3 17/32" |
| Pitch Dia. | 9 1/5" |
| Product Datasheet | browning-1097849.pdf |
| Series | TC Series |
| Suitable For Use With | Gripbelt C Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type 13 Web |
Shipping Info:
| Ship weight (kg) | 9.88 |
| Ship height (cm) | 23.37 |
| Ship length (cm) | 8.97 |
| Ship width (cm) | 23.37 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Type | Pitch Dia. | Max. Pitch Dia. | Min. Pitch Dia. | Material | Face Width | Bore Dia. | Belt Series | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1009331 | Type 13 Web | 8 3/5" | 8 1/5" | 8 1/5" | Cast Iron | 3 1/4" | 3/4" to 2 11/16" | C Series | €805.62 | |
 |
1009828 | Type 13 Arm | 10 2/5" | 10" | 10" | Cast Iron | 3 1/4" | 3/4" to 2 11/16" | C Series | €870.50 | |
 |
1010222 | Type 13 Arm | 16 2/5" | 16" | 16" | Cast Iron | 3 1/4" | 3/4" to 2 11/16" | C Series | €1,295.50 | |
 |
1009554 | Type 13 Web | 9 2/5" | 9" | 9" | Cast Iron | 3 1/4" | 3/4" to 2 11/16" | C Series | €662.30 | |
 |
1010164 | Type 13 Arm | 13 2/5" | 13" | 13" | Cast Iron | 3 1/4" | 3/4" to 2 11/16" | C Series | €1,468.27 | |
 |
1009992 | Arm Type 13 | 11 2/5" | 11" | 11" | Cast Iron | 3 1/4" | 3/4" to 2 11/16" | C Series | €992.15 | |
 |
1009448 | Type 13 Web | 9" | - | - | Cast Iron | 3 1/4" | 3/4" to 2 11/16" | - | €854.14 |
