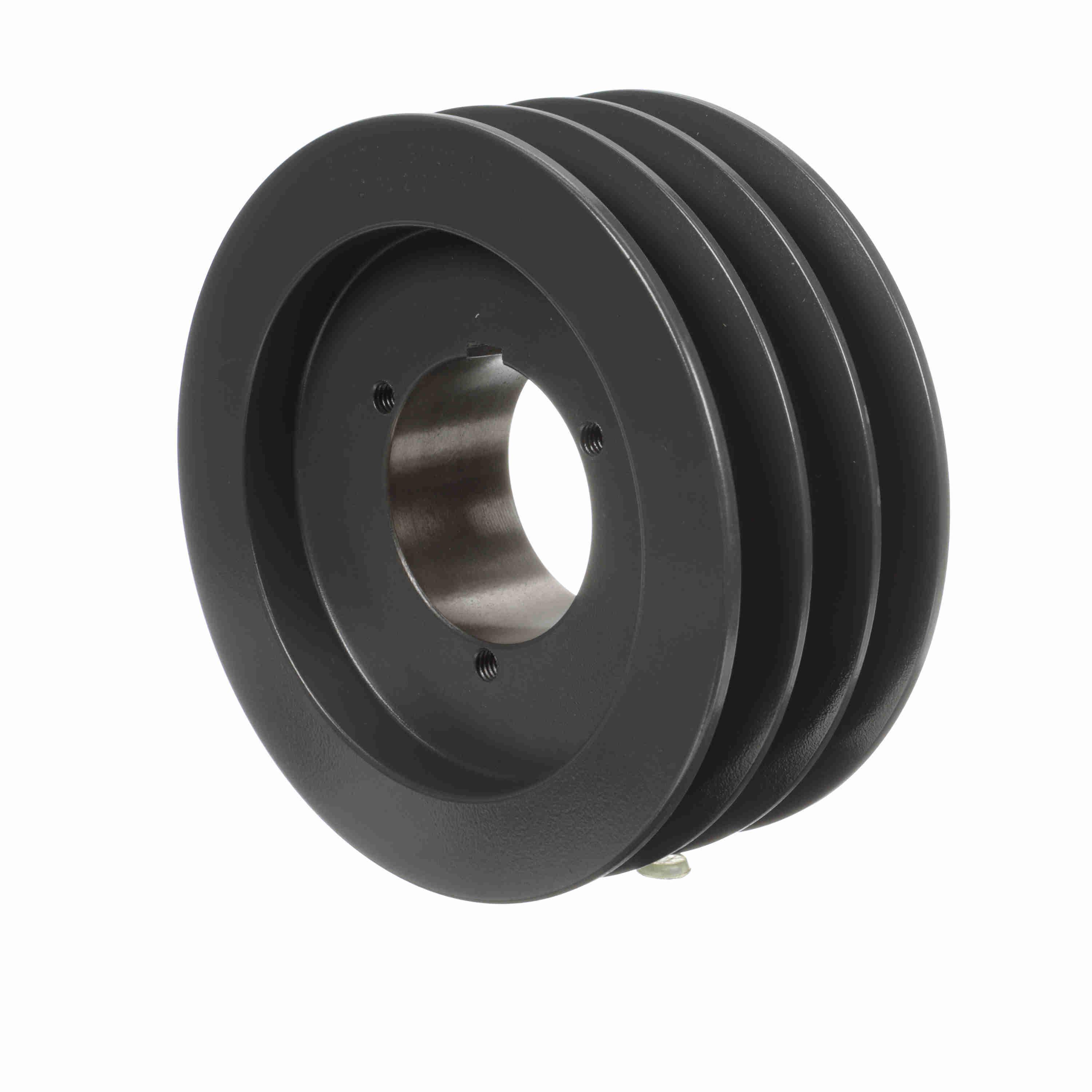

BROWNING 1009109 3TC74 V-Belt Sheave, Multiple, Bushed Bore, 3 Groove, Cast Iron
7 4/5"
Get it by Tuesday, Dec 23
€508.51 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | C Series |
| Bore Dia. | 3/4" to 2 11/16" |
| Bore Type | Split Taper |
| Bushing Type | Q1 |
| Face Width | 3 1/4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 7 2/5" |
| Min. Pitch Dia. | 7 2/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 3 |
| Outside Dia. | 7 4/5" |
| Overall Length | 3 17/32" |
| Pitch Dia. | 7 4/5" |
| Series | TC Series |
| Suitable For Use With | Gripbelt C Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type 13 Web |
| Weight | 19.1 lbs. |
Shipping Info:
| Ship weight (kg) | 8.68 |
| Ship height (cm) | 19.81 |
| Ship length (cm) | 8.97 |
| Ship width (cm) | 19.81 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Overall Length | Type | Bore Type | Material | Bore Dia. | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1009331 | 8 3/5" | 3 17/32" | Type 13 Web | Split Taper | Cast Iron | 3/4" to 2 11/16" | 3 1/4" | €805.62 | |
 |
1009828 | 10 2/5" | 3 17/32" | Type 13 Arm | Split Taper | Cast Iron | 3/4" to 2 11/16" | 3 1/4" | €870.50 | |
 |
1010222 | 16 2/5" | 3 17/32" | Type 13 Arm | Split Taper | Cast Iron | 3/4" to 2 11/16" | 3 1/4" | €1,295.50 | |
 |
1009554 | 9 2/5" | 3 17/32" | Type 13 Web | Split Taper | Cast Iron | 3/4" to 2 11/16" | 3 1/4" | €662.30 | |
 |
1010164 | 13 2/5" | 3 17/32" | Type 13 Arm | Split Taper | Cast Iron | 3/4" to 2 11/16" | 3 1/4" | €1,468.27 | |
 |
1009992 | 11 2/5" | 3 37/64" | Arm Type 13 | Split Taper | Cast Iron | 3/4" to 2 11/16" | 3 1/4" | €992.15 | |
 |
1009448 | 9" | 3 17/32" | Type 13 Web | Split Taper | Cast Iron | 3/4" to 2 11/16" | 3 1/4" | €854.14 |
