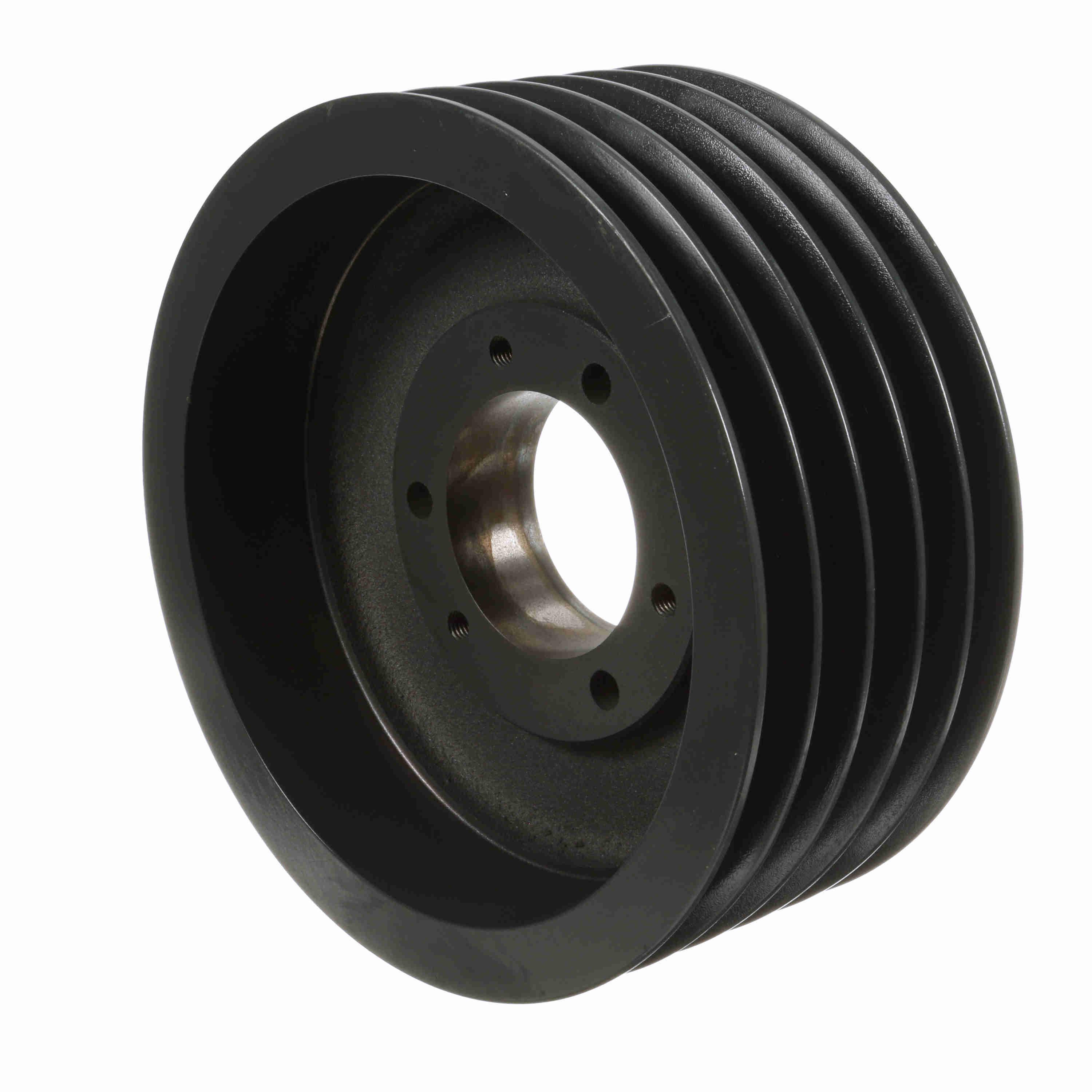

BROWNING 1006659 5C120E V-Belt Sheave, Multiple, Bushed Bore, 5 Groove, Cast Iron, 12.4 in OD, 0.88 to 3.5 in Bore Dia, E Bushing Type, Type A Web
12 2/5"
22/25" to 3 1/2"
Get it by Monday, Aug 17
€1,610.83 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | C Series |
| Bore Dia. | 22/25" to 3 1/2" |
| Bore Type | QD |
| Bushing Bore Range | 7/8" to 3 1/2" |
| Bushing Type | E |
| Face Width | 5 1/4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 12" |
| Min. Pitch Dia. | 12" |
| Min. Plain Bore | No |
| No. Of Grooves | 5 |
| Outside Dia. | 12 2/5" |
| Pitch Dia. | 12 2/5" |
| Product Datasheet | browning-1097849.pdf |
| Suitable For Use With | Gripbelt C Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type A Web |
Shipping Info:
| Ship weight (kg) | 21.7 |
| Ship height (cm) | 31.5 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 31.5 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Pitch Dia. | Bore Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Bore Type | Bushing Type | Bushing Bore Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1006691 | 18 2/5" | 22/25" to 3 1/2" | Type A Arm | 18" | 18" | QD | E | 7/8" to 3 1/2" | €2,332.37 | |
|
1006709 | 20 2/5" | 1" to 4" | Type D Arm | - | - | QD | F | - | €2,521.43 | |
 |
1006634 | 10.9" | 22/25" to 3 1/2" | Type A Web | 10 1/2" | 10 1/2" | QD | E | 7/8" to 3 1/2" | €1,640.86 | |
 |
1006667 | 13 2/5" | 22/25" to 3 1/2" | Type A Arm | 13" | 13" | QD | E | 7/8" to 3 1/2" | €1,725.48 | |
|
1008374 | 24 2/5" | 1" to 4" | Type D Arm | 24" | 24" | QD | F | - | €3,265.31 | |
|
1006675 | 14 2/5" | 22/25" to 3 1/2" | Type A Arm | - | - | QD | E | - | €2,016.34 | |
|
1006683 | 16 2/5" | 22/25" to 3 1/2" | Type A Arm | - | - | QD | E | - | €2,193.90 |
