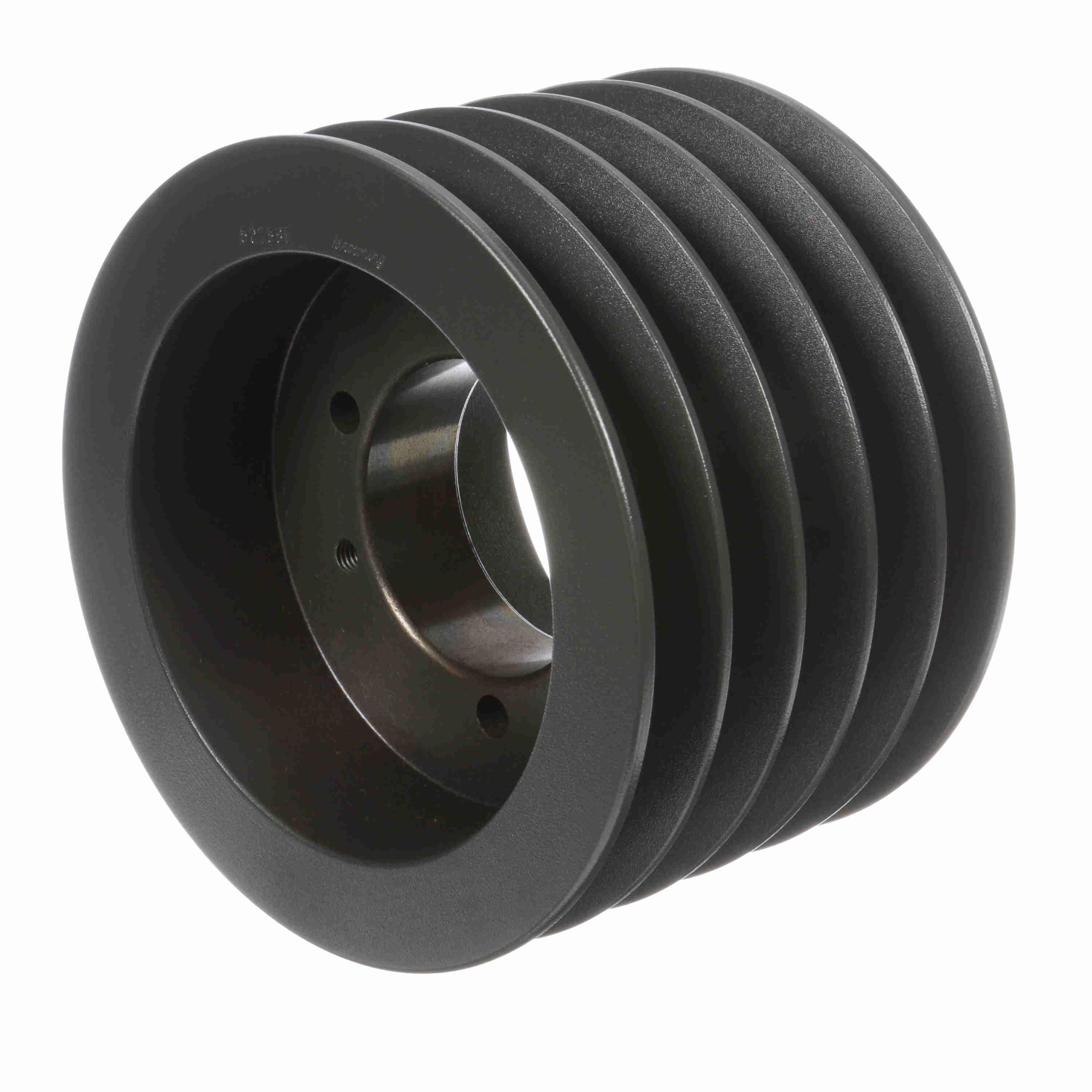

BROWNING 1006576 5C75SF V-Belt Sheave, Multiple, Bushed Bore, 5 Groove, Cast Iron
7.9"
1/2" to 2 15/16"
Get it by Tuesday, Dec 23
€1,171.44 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | C Series |
| Bore Dia. | 1/2" to 2 15/16" |
| Bore Type | QD |
| Bushing Type | SF |
| Face Width | 5 1/4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 7 1/2" |
| Min. Pitch Dia. | 7 1/2" |
| Min. Plain Bore | No |
| No. Of Grooves | 5 |
| Outside Dia. | 7.9" |
| Pitch Dia. | 7.9" |
| Suitable For Use With | Gripbelt C Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type A Solid |
| Weight | 10.678 Kg |
Shipping Info:
| Ship weight (kg) | 10.58 |
| Ship height (cm) | 15.88 |
| Ship length (cm) | 21.59 |
| Ship width (cm) | 21.59 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Type | Outside Dia. | Bore Dia. | Type | Overall Length | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1006691 | QD | 18 2/5" | 22/25" to 3 1/2" | Type A Arm | - | Cast Iron | 5 1/4" | €2,332.37 | |
|
1006709 | QD | 20 2/5" | 1" to 4" | Type D Arm | - | Cast Iron | 5 1/4" | €2,521.43 | |
 |
1006634 | QD | 10.9" | 22/25" to 3 1/2" | Type A Web | - | Cast Iron | 5 1/4" | €1,640.86 | |
 |
1006667 | QD | 13 2/5" | 22/25" to 3 1/2" | Type A Arm | - | Cast Iron | 5 1/4" | €1,725.48 | |
|
1008374 | QD | 24 2/5" | 1" to 4" | Type D Arm | - | Cast Iron | 5 1/4" | €3,265.31 | |
|
1006675 | QD | 14 2/5" | 22/25" to 3 1/2" | Type A Arm | - | Cast Iron | 5 1/4" | €2,016.34 | |
|
1006683 | QD | 16 2/5" | 22/25" to 3 1/2" | Type A Arm | - | Cast Iron | 5 1/4" | €2,193.90 |
