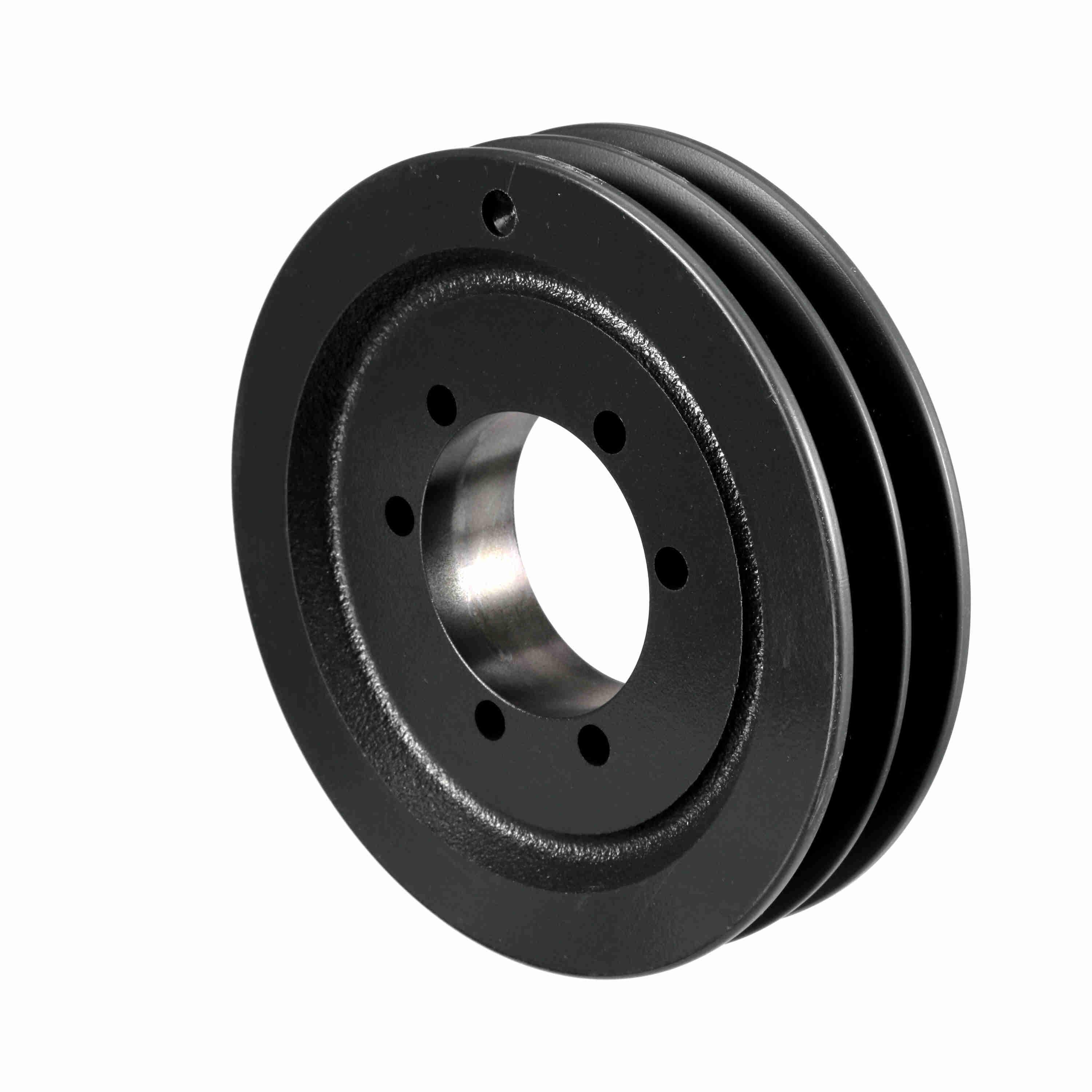

BROWNING 1004316 2B70SK V-Belt Sheave, Multiple, Bushed Bore, 2 Groove, Cast Iron
Item: BA2TXWModel: 1004316Cross Ref: 2B70SK
7 In Stock
7.35"
Ships within 2 days via
€255.44 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 1/2" to 2 5/8" |
| Bore Type | QD |
| Bushing Type | SK |
| Face Width | 1 3/4" |
| Hub Projection | 21/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 7" |
| Min. Pitch Dia. | 6 3/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 2 |
| Outside Dia. | 7.35" |
| Overall Length | 2 13/32" |
| Pitch Dia. (a) | 6 4/5" |
| Pitch Dia. (b) | 7.3" |
| Suitable For Use With | Gripbelt A And B Cross Section Belts |
| System Of Measurement | Imperial |
| Type | Type D1 |
| Weight | 4.883 Kg |
Shipping Info:
| Ship weight (kg) | 4.97 |
| Ship height (cm) | 18.67 |
| Ship length (cm) | 6.12 |
| Ship width (cm) | 18.67 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Type | Overall Length | Bore Type | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1004290 | 6.95" | 1/2" to 2" | Type D2 | 2.075" | QD | Cast Iron | 1 3/4" | €248.39 | |
 |
1004415 | 18 3/4" | 1/2" to 2 5/8" | Type D3 | 2 7/32" | QD | Cast Iron | 1 3/4" | €592.33 | |
 |
1004142 | 3.95" | 1/2" to 1 5/8" | Type D1 | 2.2625" | QD | Cast Iron | 1 3/4" | €183.52 | |
 |
1004431 | 25.35" | 1/2" to 2 15/16" | Type D3 | 2 9/32" | QD | Cast Iron | 1 3/4" | €1,062.50 | |
 |
1004282 | 6 3/4" | 1/2" to 2" | Type D2 | 1.79375" | QD | Cast Iron | 1 3/4" | €244.80 | |
 |
1004456 | 38.35" | 1/2" to 2 15/16" | Type D3 | 2 9/32" | QD | Cast Iron | 1 3/4" | €4,285.74 | |
|
1004423 | 20.35" | 1/2" to 2 15/16" | Type D3 | 2 9/32" | QD | Cast Iron | 1 3/4" | €1,175.92 |
