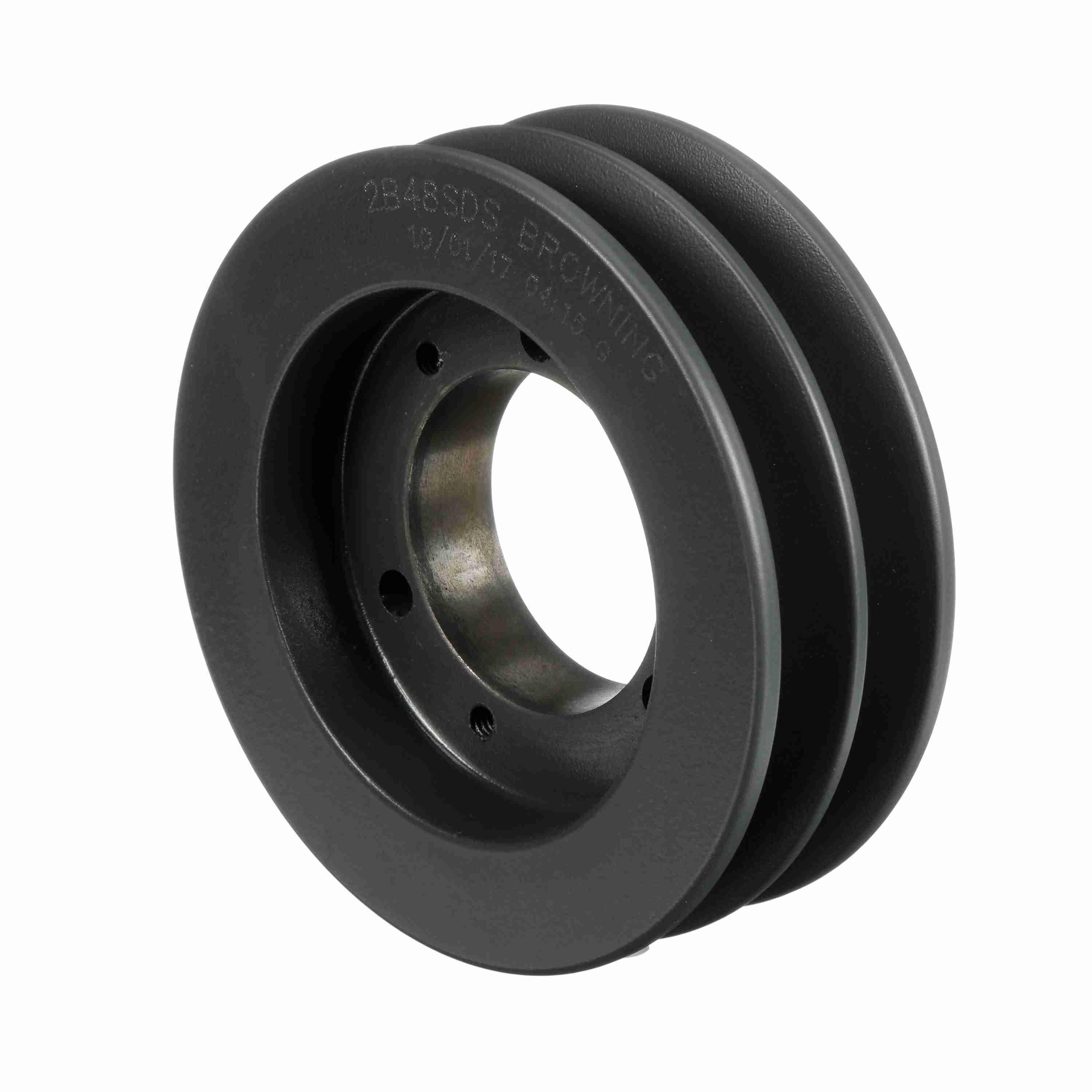

BROWNING 1004209 2B48SDS V-Belt Sheave, Multiple, Bushed Bore, 2 Groove, Cast Iron, 5.15 in OD, 1/2 to 2 in Bore Dia, 4.6 in A/5.1 in B Pitch Dia, SDS Bushing Type
Item: BA4QEYModel: 1004209Cross Ref: 2B48SDS
7 In Stock
5.15"
Ships within 2 days via
€187.19 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 1/2" to 2" |
| Bore Type | QD |
| Bushing Type | SDS |
| Face Width | 1 3/4" |
| Hub Projection | 0.04375" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 4 4/5" |
| Min. Pitch Dia. | 4 2/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 2 |
| Outside Dia. | 5.15" |
| Overall Length | 1.79375" |
| Pitch Dia. | 4 3/5" |
| Pitch Dia. (b) | 5.1" |
| Product Datasheet | browning-1097849.pdf |
| Suitable For Use With | Gripbelt A And B Cross Section Belts |
| System Of Measurement | Imperial |
| Type | Type D1 |
Shipping Info:
| Ship weight (kg) | 1.89 |
| Ship height (cm) | 4.83 |
| Ship length (cm) | 18.29 |
| Ship width (cm) | 18.29 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Pitch Dia. | Bore Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Pitch Dia. (b) | Bushing Type | Hub Projection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1004290 | 6 2/5" | 1/2" to 2" | Type D2 | 6 3/5" | 6 1/5" | 6.9" | SDS | 0.325" | €248.39 | |
 |
1004415 | 18 1/5" | 1/2" to 2 5/8" | Type D3 | 18 2/5" | 18" | 18.7" | SK | 3/64" | €592.33 | |
 |
1004142 | 3 2/5" | 1/2" to 1 5/8" | Type D1 | - | - | 3.9" | SH | 0.5125" | €183.52 | |
 |
1004431 | 24 4/5" | 1/2" to 2 15/16" | Type D3 | 25" | 24 3/5" | 25.3" | SF | 17/32" | €1,062.50 | |
 |
1004282 | 6 1/5" | 1/2" to 2" | Type D2 | - | - | 6.7" | SDS | 0.04375" | €244.80 | |
 |
1004456 | 37 4/5" | 1/2" to 2 15/16" | Type D3 | 38" | 37 3/5" | 38.3" | SF | 17/32" | €4,285.74 | |
|
1004423 | 19 4/5" | 1/2" to 2 15/16" | Type D3 | 20" | 19 3/5" | 20.3" | SF | 17/32" | €1,175.92 |
