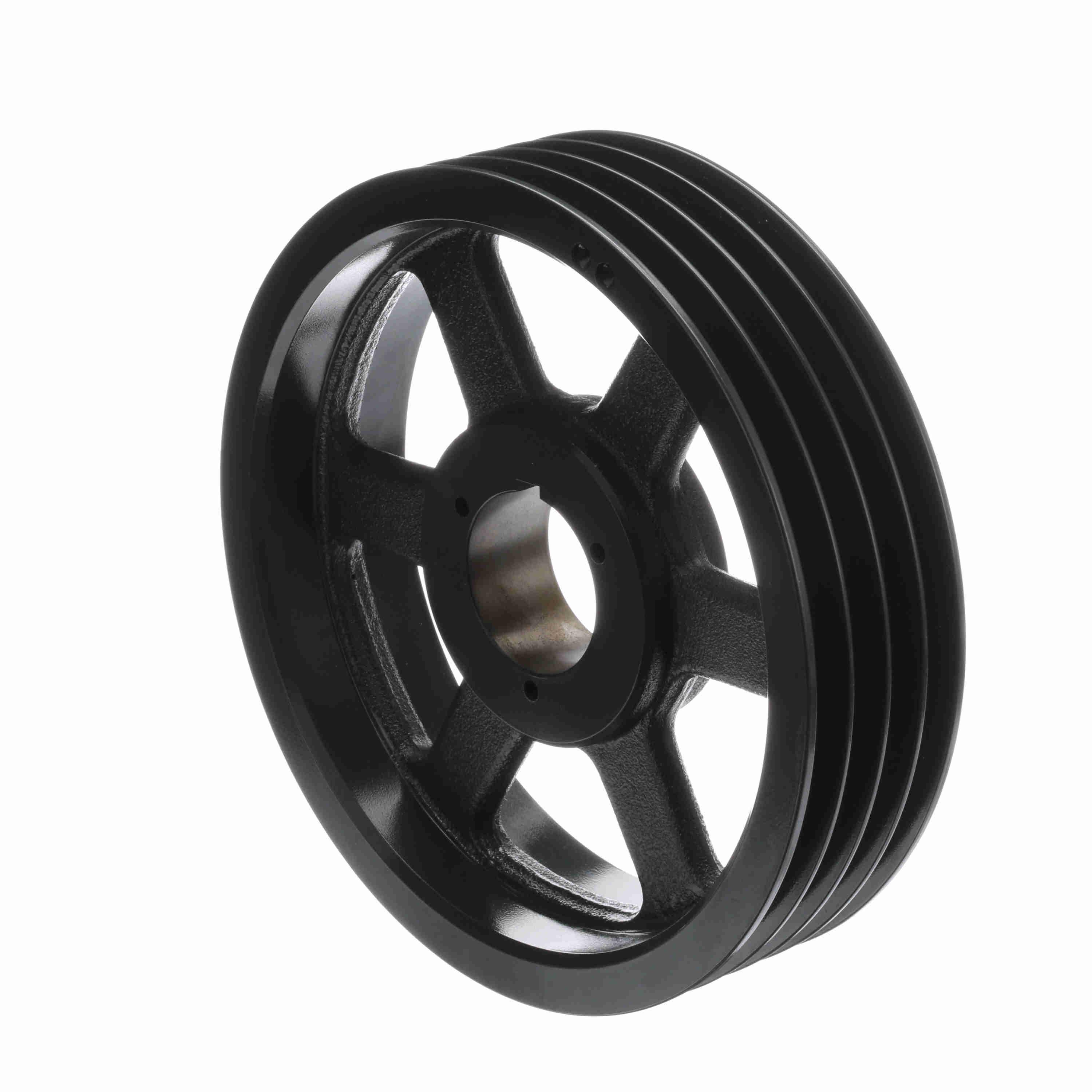

BROWNING 1002716 4TB124 V-Belt Sheave, Multiple, Bushed Bore, 4 Groove, Cast Iron
12 3/4"
Get it by Thursday, Dec 25
€479.32 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 3/4" to 2 11/16" |
| Bore Type | Split Taper |
| Bushing Type | Q1 |
| Face Width | 3 1/4" |
| Hub Projection | 3/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 12 2/5" |
| Min. Pitch Dia. | 12" |
| Min. Plain Bore | No |
| No. Of Grooves | 4 |
| Outside Dia. | 12 3/4" |
| Overall Length | 3 37/64" |
| Pitch Dia. (a) | 12 1/5" |
| Pitch Dia. (b) | 12.7" |
| Series | TB Series |
| Suitable For Use With | Gripbelt A And B Cross Section Belts |
| System Of Measurement | Imperial |
| Type | Arm Type 13 |
| Weight | 13.507 Kg |
Shipping Info:
| Ship weight (kg) | 13.39 |
| Ship height (cm) | 32.39 |
| Ship length (cm) | 9.09 |
| Ship width (cm) | 32.39 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Face Width | Overall Length | Type | Bore Type | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1001395 | 4.35" | 1/2" to 1 3/4" | 3 1/4" | 4 1/8" | Type 5 | Split Taper | Cast Iron | €378.58 | |
 |
1001874 | 5.95" | 1/2" to 1 3/4" | 3 1/4" | 3 29/64" | Type 13 Web | Split Taper | Cast Iron | €559.21 | |
 |
1002054 | 6.55" | 1/2" to 1 3/4" | 3 1/4" | 3 1/2" | Type 13 Web | Split Taper | Cast Iron | €593.79 | |
|
1002179 | 6.95" | 1/2" to 1 3/4" | 3 1/4" | 3 29/64" | Type 13 Web | Split Taper | Cast Iron | €444.90 | |
 |
1002773 | 13.95" | 3/4" to 2 11/16" | 3 1/4" | 3 37/64" | Arm Type 13 | Split Taper | Cast Iron | €617.27 | |
 |
1002831 | 15 3/4" | 3/4" to 2 11/16" | 3 1/4" | 3 17/32" | Type 13 Arm | Split Taper | Cast Iron | €796.75 | |
 |
1002294 | 7.35" | 3/4" to 2 11/16" | 3 1/4" | 3 37/64" | Type 13 Web | Split Taper | Cast Iron | €382.13 |
