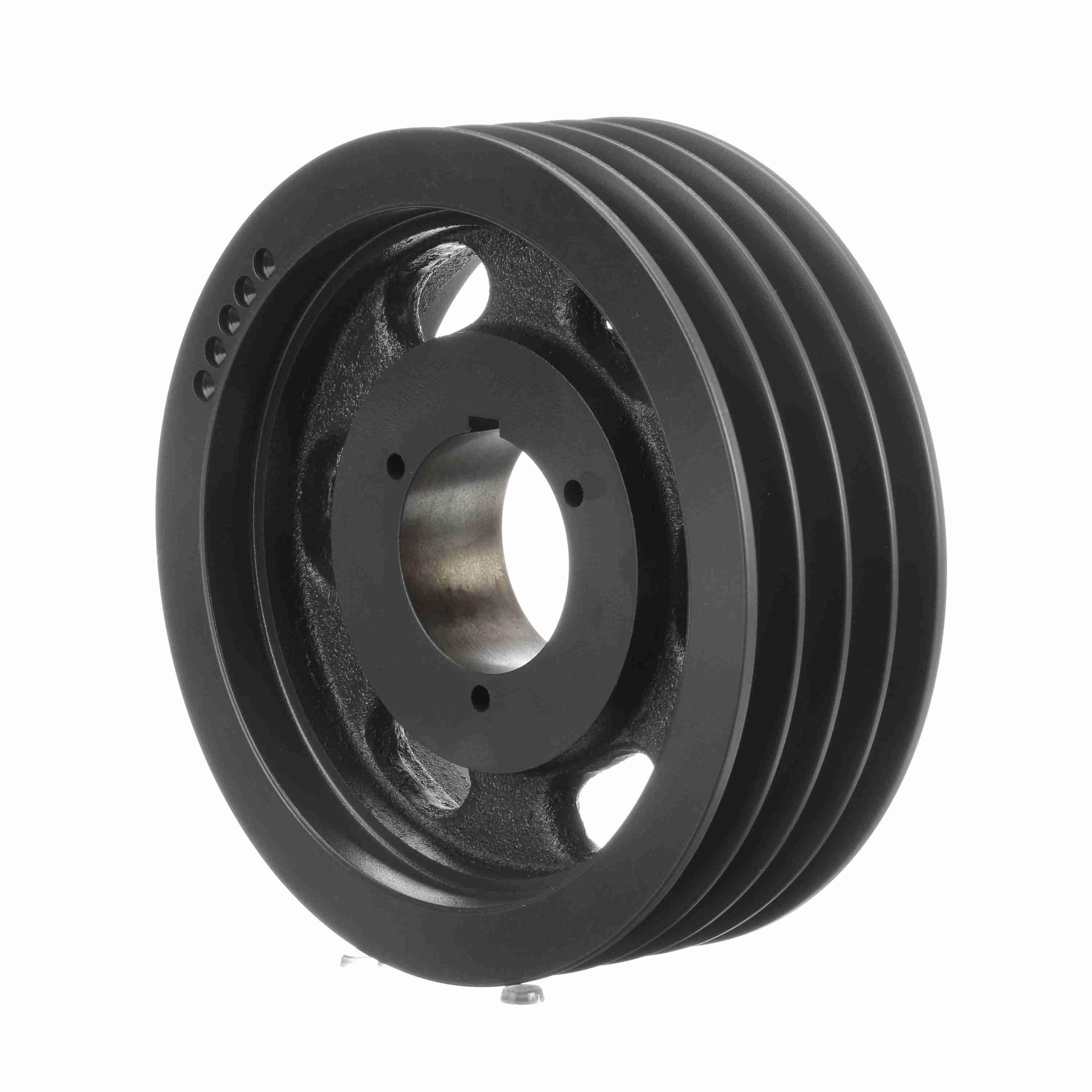

BROWNING 1002591 4TB94 V-Belt Sheave, Multiple, Bushed Bore, 4 Groove, Cast Iron, 9-3/4 in OD, 3/4 to 2-11/16 in Bore Dia, 9.2 in A/9.7 in Pitch Dia
9 3/4"
Get it by Friday, Aug 14
€443.81 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 3/4" to 2 11/16" |
| Bore Type | Split Taper |
| Bushing Type | Q1 |
| Face Width | 3 1/4" |
| Hub Projection | 3/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 9 2/5" |
| Min. Pitch Dia. | 9" |
| Min. Plain Bore | No |
| No. Of Grooves | 4 |
| Outside Dia. | 9 3/4" |
| Overall Length | 3 37/64" |
| Pitch Dia. | 9 1/5" |
| Pitch Dia. (b) | 9.7" |
| Series | TB Series |
| Suitable For Use With | Gripbelt A And B Cross Section Belts |
| System Of Measurement | Imperial |
| Type | Arm Type 13 |
Shipping Info:
| Ship weight (kg) | 9.92 |
| Ship height (cm) | 24.77 |
| Ship length (cm) | 9.09 |
| Ship width (cm) | 24.77 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Face Width | Bore Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Pitch Dia. (b) | Bushing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1001395 | 3 4/5" | 3 1/4" | 1/2" to 1 3/4" | Type 5 | 4" | 3 3/5" | 4.3" | P1 | €378.58 | |
 |
1001874 | 5 2/5" | 3 1/4" | 1/2" to 1 3/4" | Type 13 Web | 5 3/5" | 5 1/5" | 5.9" | P1 | €559.21 | |
 |
1002054 | 6" | 3 1/4" | 1/2" to 1 3/4" | Type 13 Web | - | - | 6 1/2" | P1 | €593.79 | |
|
1002179 | 6 2/5" | 3 1/4" | 1/2" to 1 3/4" | Type 13 Web | - | - | 6.9" | P1 | €444.90 | |
 |
1002773 | 13 2/5" | 3 1/4" | 3/4" to 2 11/16" | Arm Type 13 | 13 3/5" | 13 1/5" | 13.9" | Q1 | €617.27 | |
 |
1002831 | 15 1/5" | 3 1/4" | 3/4" to 2 11/16" | Type 13 Arm | - | - | 15.7" | Q1 | €796.75 | |
 |
1002294 | 6 4/5" | 3 1/4" | 3/4" to 2 11/16" | Type 13 Web | 7" | 6 3/5" | 7.3" | Q1 | €382.13 |
