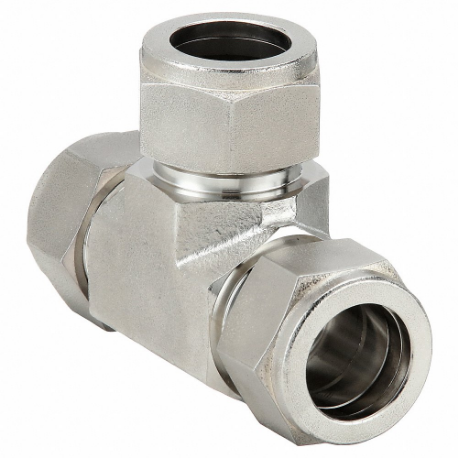

BRENNAN INDUSTRIES N2603-08-08-08-SS Instrumentation Fittings, 316 Stainless Steel, Compression x Compression x Compression
Item: CP2NDRModel: N2603-08-08-08-SSCross Ref: 782KG0
7 In Stock
Ships within 2 days via
€155.30 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fitting |
| Application | Gas, Hydraulic, Tubing Systems |
| Compatible Fitting Brands | Parker A-Lok, Swagelok |
| Compatible Tube Hardness | 90 HRB |
| Compatible Tube Wall Thickness | 0.041" |
| Fits Brand | Parker A-Lok, Swagelok |
| Fitting Material | Stainless Steel |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outside Dia. | 1/2" |
| Fitting Side B Connection Type | Compression |
| Fitting Side B Tube Outside Dia. | 1/2" |
| Fitting Side C Connection Type | Compression |
| Fitting Side C Tube Outside Dia. | 1/2" |
| Hex Size | 22 mm |
| Length | 2.844" |
| Material | Stainless Steel |
| Material Grade | Grade 316 |
| Max. Operating Pressure | 2111 psi |
| Max. Operating Temp. | 1200°F |
| Mfr. Series | Brennan Instrumentation Series |
| Min. Operating Temp. | 20°F |
| Overall Length | 2 27/32" |
| Series | BRENNAN INSTRUMENTATION Series |
| Specific Fitting Shape | TEE |
| System Of Measurement | Imperial |
| Thread Size A | 3/4"-16 |
| Thread Size B | 3/4"-20 |
| Thread Size C | 3/4"-20 |
| Tube Fitting Material | Stainless Steel |
| Tube Size | Not Applicable |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Hex Size | Max. Operating Temp. | Min. Operating Temp. | Max. Operating Pressure | Overall Length | Thread Size B | Thread Size A | Thread Size C | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| N2603-04-04-04-SS | 14 mm | 100°F | 20°F | 4020 psi | 2 1/8" | 7/16"-20 | 7/16"-20 | 7/16"-20 | €82.87 | |
| N2603-06-06-06-SS | 17 mm | 100°F | 20°F | 3326 psi | 2 13/32" | 9/16"-20 | 9/16"-18 | 9/16"-20 | €95.33 | |
| N2603-12-12-12-SS | 28.5 mm | 1200°F | 20°F | 2436 psi | 3 5/32" | 1-20 | 1 1/16"-12 | 1"-20 | €311.51 | |
| N2603-16-16-12-SS | 1 1/2" | 100°F | -20°F | 3146 psi | 3 27/32" | - | - | - | €660.45 | |
| N2603-06-04-04-SS | 11/16" | 100°F | -20°F | 3326 psi | 2 11/32" | - | - | - | €89.53 | |
| N2603-12-12-08-SS | 1 1/8" | 100°F | -20°F | 3146 psi | 3 5/32" | - | - | - | €299.20 | |
| N2603-08-04-04-SS | 7/8" | 100°F | -20°F | 4020 psi | 2 21/32" | - | - | - | €127.69 |
