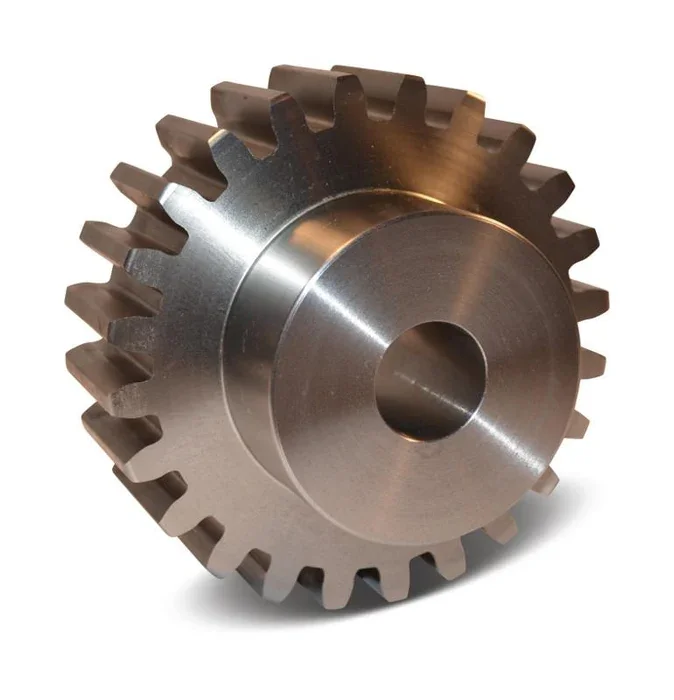

BOSTON GEAR NB22B-1/2 Spur Gear, 16 Diametral Pitch, 14 1/2 Deg. Pressure Angle, 22 Teeth, Steel
Item: AK3CCYModel: NB22B-1/2
7 In Stock
Ships within 2 days via
€105.60 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spur Gear |
| Bore Dia. | 1/2" |
| Bore Type | Bored To Size |
| Diametral Pitch | 16 |
| Face Width | 1/2" |
| Hardened Teeth | Without Hardened Teeth |
| Hub Dia. | 1.06" |
| Keyway | With Keyway |
| Length Through Bore | 15/16" |
| Material | Steel |
| Max. Rated Torque | 60.3 N-m @ 1800 RPM |
| No. Of Teeth | 22 |
| Outside Dia. | 1 1/2" |
| Pitch Dia. | 1 3/8" |
| Pressure Angle | 14.5° |
| Product Datasheet | boston-gear-g101.pdf |
| Set Screw | Yes |
| Set Screw Size | 0.5 |
| Torque @ 1200 Rpm | 72.9 lbs.-in. |
| Torque @ 1800 Rpm | 60.3 lbs.-in. |
| Torque @ 200 Rpm | 112 lbs.-in. |
| Torque @ 300 Rpm | 106 lbs.-in. |
| Torque @ 600 Rpm | 92.3 lbs.-in. |
| Torque @ 900 Rpm | 81.5 lbs.-in. |
| Type | A |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Pitch Dia. | Face Width | Hub Dia. | Diametral Pitch | No. Of Teeth | Bore Dia. | Type | Keyway | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| NB12 B | 0.75" | 1/2" | 14/25" | 16 | 12 | 3/8" | - | No | €48.17 | |
| NB16B | 1" | 1/2" | 0.81" | 16 | 16 | 1/2" | - | No | €68.02 | |
| NB18B | 1 1/8" | 1/2" | 0.94" | 16 | 18 | 1/2" | - | No | €78.08 | |
| NB20B | 1 1/4" | 1/2" | 0.95" | 16 | 20 | 1/2" | - | No | €88.87 | |
| NB24B | 1 1/2" | 1/2" | 1.19" | 16 | 24 | 1/2" | - | No | €93.40 | |
| NB30B | 1 7/8" | 1/2" | 1 14/25" | 16 | 30 | 1/2" | - | No | €119.00 | |
| NB32 | 2" | 1/2" | 1.69" | 16 | 32 | 1/2" | - | No | €120.75 |
