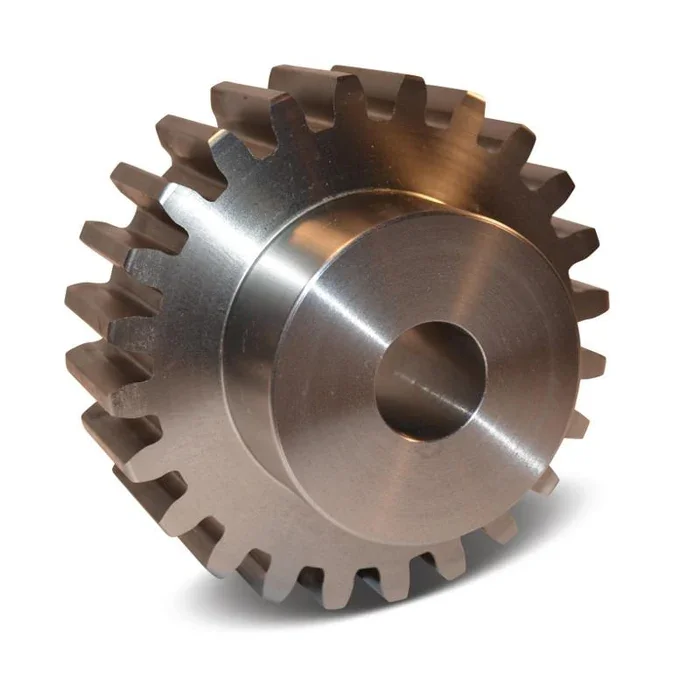

BOSTON GEAR NB13B-3/8 Spur Gear, 16 Diametral Pitch, 14 1/2 Deg. Pressure Angle, 13 Teeth, Steel
Item: AK3BYDModel: NB13B-3/8
7 In Stock
Ships within 2 days via
€70.19 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spur Gear |
| Bore Dia. | 0.38" |
| Bore Type | Bored To Size |
| Diametral Pitch | 16 |
| Face Width | 1/2" |
| Hardened Teeth | Without Hardened Teeth |
| Hub Dia. | 0.63" |
| Keyway | With Keyway |
| Length Through Bore | 15/16" |
| Material | Steel |
| Maximum Rated Torque | 34.6 N-m @ 1800 RPM |
| No. Of Teeth | 13 |
| Pitch Dia. | 13/16" |
| Pressure Angle | 14.5° |
| Product Datasheet | boston-gear-g101.pdf |
| Set Screw | Yes |
| Set Screw Size | 0.375 |
| Torque At 1200 Rpm | 34.6 lbs.-in. |
| Torque At 1800 Rpm | 34.6 lbs.-in. |
| Torque At 200 Rpm | 52.9 lbs.-in. |
| Torque At 300 Rpm | 51.2 lbs.-in. |
| Torque At 600 Rpm | 46.7 lbs.-in. |
| Torque At 900 Rpm | 42.9 lbs.-in. |
| Type | A |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Diametral Pitch | Face Width | Hub Dia. | Bore Dia. | Pitch Dia. | Hub Projection | Number Of Teeth | Outside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| NB12 B | 16 | 1/2" | 14/25" | 3/8" | - | 0.44" | 12 | 7/8" | €48.17 | |
| NB16B | 16 | 1/2" | 0.81" | 1/2" | 1" | 0.44" | 16 | 1 1/8" | €68.02 | |
| NB18B | 16 | 1/2" | 0.94" | 1/2" | 1 1/8" | 0.44" | 18 | 1 1/4" | €78.08 | |
| NB20B | 16 | 1/2" | 0.95" | 1/2" | 1 1/4" | 0.44" | 20 | 1 3/8" | €88.87 | |
| NB24B | 16 | 1/2" | 1.19" | 1/2" | 1 1/2" | 0.44" | 24 | 1 5/8" | €93.40 | |
| NB30B | 16 | 1/2" | 1 14/25" | 1/2" | 1 7/8" | 0.5" | 30 | 2" | €119.00 | |
| NB32 | 16 | 1/2" | 1.69" | 1/2" | 2" | 0.5" | 32 | 2 1/8" | €120.75 |
