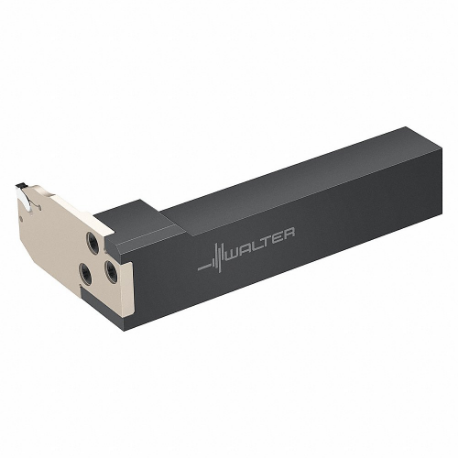

WALTER TOOLS G2622-3225L-3T45SX Indexable Parting and Grooving Tool Holder, Novex-Cut, SX Insert, Left Hand, Self Clamping
Get it by Tuesday, Sep 1
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Grooving Tool Holder |
| Ansi Code | G2622-3225L-3T45SX |
| Ansi Number | G2622-3225L-3T45SX |
| Cutting Angle | 90° |
| Cutting Application | 90掳 Radial Grooving |
| Cutting Direction | Left Hand |
| Cutting Type | Radial Grooving |
| Hand | L |
| Indexable Insert Width | 0.118" |
| Insert Holding Type | Self Clamping |
| Insert Style | SX |
| Iso Number | G2622-3225L-3T45SX |
| Length | 6.327" |
| Max. Parting Dia. | 3.937" |
| Overall Length | 6.3268" |
| Product Family | NOVEX-CUT |
| Toolholder Style | G2622 |
Shipping Info:
| Ship weight (kg) | 1.12 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 16.07 |
| Ship width (cm) | 2.54 |
| Country of Origin | NL |
Product Variants
| Product | Model | Shank Dia. | Cutting Direction | Toolholder Style | Iso Number | Ansi Number | Insert Holding Type | Ansi Code | Insert Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
G4014-1212L-2T12DX18-P | - | Left Hand | G4014 | G4014-1212L-2T12DX18-P | G4014-1212L-2T12DX18-P | Side Clamping Screw | G4014-1212L-2T12Dx18-P | DX | €431.28 | |
 |
G4014-1616L-2.5T17DX18-P | - | Left Hand | G4014 | - | G4014-1616L-2.5T17DX18-P | Side Clamping Screw | - | DX | €452.42 | |
 |
G4014-1212L-2T12DX18 | - | Left Hand | G4014 | G4014-1212L-2T12DX18 | G4014-1212L-2T12DX18 | Side Clamping Screw | G4014-1212L-2T12DX18 | DX | €284.19 | |
|
G4014-1616L-3T17DX18-P | - | Left Hand | G4014 | G4014-1616L-3T17DX18-P | G4014-1616L-3T17DX18-P | Side Clamping Screw | G4014-1616L-3T17DX18-P | DX | €452.42 | |
|
G4014-1616L-2T12DX18 | - | Left Hand | G4014 | G4014-1616L-2T12DX18 | G4014-1616L-2T12DX18 | Side Clamping Screw | G4014-1616L-2T12DX18 | DX | €298.43 | |
 |
G4014-1616R-3T17DX18-P | - | Right Hand | G4014 | G4014-1616R-3T17DX18-P | G4014-1616R-3T17DX18-P | Side Clamping Screw | G4014-1616R-3T17DX18-P | DX | €452.42 | |
 |
G4014-1616R-3T17DX18 | - | Right Hand | G4014 | G4014-1616R-3T17DX18 | G4014-1616R-3T17DX18 | Side Clamping Screw | G4014-1616R-3T17DX18 | DX | €298.43 |
