BLICKLE L-PO 125K-12-FK Swivel Plate Caster 400 Lb 5 Inch Diameter
Get it by Wednesday, Dec 17
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€31.97 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Plate Caster |
| Application | General / Industrial / Commercial / Institutional purpose |
| Bearing Type | Double Ball |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Load Rating Range | 300 lbs. to 999 lbs. |
| Caster Material | Nylon |
| Caster Product Group | Swivel Caster |
| Caster Sub-type | Swivel |
| Caster Type | Swivel |
| Caster Wheel Material | Nylon |
| Caster Wheel Shape | Standard |
| Core Color | White |
| Core Material | Nylon |
| Durometer | 70 Shore D |
| Extended Lead | No |
| Features | American Standard Plate Size |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Hole Pattern | C |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 1 3/4" x 2 13/16" |
| Lock Type | No Lock Included |
| Mounting Bolt Dia. | 3/8" |
| Mounting Height | 5 7/8" |
| Mounting Plate Bolt Hole Pattern | D |
| Mounting Plate Size | 2 1/2" x 3 5/8" |
| Mounting Plate Size & Bolt Hole Pattern | 2 1/2" X 3 5/8" ( D ) |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 1 3/4" x 3 1/16" |
| Overall Height | 6 1/8" |
| Plate Caster Core Material | Nylon |
| Plate Caster Lock | No Lock Included |
| Plate Caster Wheel Material | Nylon |
| Plate Size | 2 1/2" x 3 5/8" |
| Plate Thickness | 1/8" |
| Plate Type | C |
| Raceway Type | Double Ball |
| Replacement Wheel | PO 125/10K-FK |
| Swivel Construction | Kingpin |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Double Ball |
| Swivel Radius | 0.0" |
| Tread Shape | Standard |
| Wheel Bearing Type | Precision Ball |
| Wheel Bearings | Ball |
| Wheel Color | White |
| Wheel Core Material | Nylon |
| Wheel Dia. | 4 15/16" |
| Wheel Diameter | 5" |
| Wheel Width | 1 5/8" |
| Wheel/tread Color | White |
| Wheel/tread Hardness | 70 Shore D |
| Wheel/tread Hardness Rating | Hard |
| Wheel/tread Material | Nylon |
Shipping Info:
| Ship weight (kg) | 0.79 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 29.21 |
| Ship width (cm) | 20.32 |
| HS code | 8302200000 |
Product Details:
- Plate Caster Brake (No)
- Thread Guard (No)
Product Variants
| Product | Model | Inside Bolt Hole Spacing | Wheel Width | Wheel Bearing Type | Mounting Plate Bolt Hole Pattern | Caster Brake Type | Wheel Dia. | Mounting Height | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
L-PO 100G-12 | 1 3/4" x 2 13/16" | 1.437" | Plain Bore | - | - | - | - | 5 1/8" | €28.70 | |
 |
L-PO 100G-12-FI | 1 3/4" x 2 13/16" | 1 1/2" | Plain | D | Total Lock Brake | 3 15/16" | 4 15/16" | 5 1/8" | €35.56 | |
 |

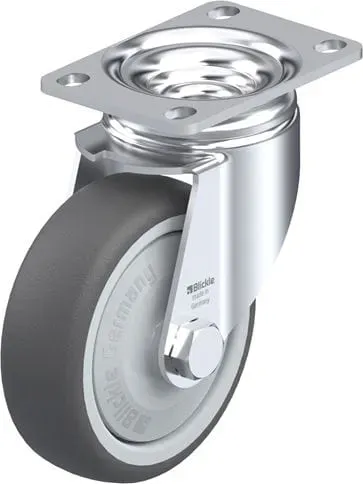

L-PO 100K-12-FK | 1 3/4" x 2 13/16" | 1 1/2" | Precision Ball | D | No Brake Included | 3 15/16" | 4 15/16" | 5 1/8" | €33.05 | |
|
L-PO 100K-12-FI-FK | 2 3/8" x 3 5/32" | 1 1/2" | Precision Ball | C | Total Lock Brake | 3 7/8" | 5 1/8" | 5 1/8" | €39.79 | |
 |

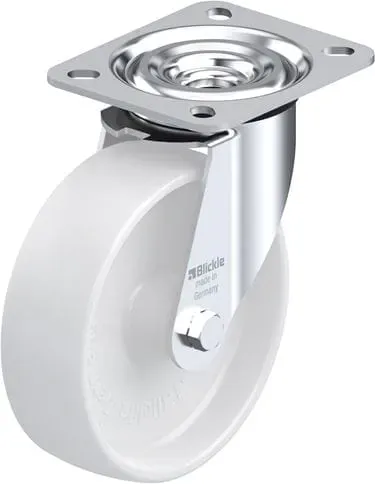

L-PO 125G-12 | 1 3/4" x 2 13/16" | 1 5/8" | Plain | D | No Brake Included | 4 15/16" | 5 7/8" | 6 1/8" | €31.10 | |
|
L-PO 125G-12-FI | 1 3/4" x 2 13/16" | 1 5/8" | Plain | D | Total Lock Brake | 4 15/16" | 5 7/8" | 6 1/8" | €40.60 | |
|
L-PO 125K-12-FI-FK | 1 3/4" x 2 13/16" | 1 5/8" | Precision Ball | D | Total Lock Brake | 4 15/16" | 5 7/8" | 6 1/8" | €40.63 |
