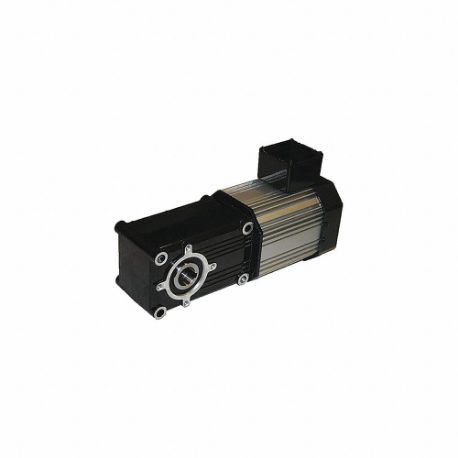

BISON GEAR & ENGINEERING 027-730K0030T AC Gearmotor, Right Angle, TEFC, 487 in-lb
Get it by Thursday, Dec 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€1,887.37 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Gearmotor |
| Application | Light Industrial, Light To Medium Conveying |
| Duty Rating | Continuous |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Features | Higher Torque Capability, Quieter Operation, Unmatched Energy Efficiency, Upto 4X More Efficient Than Traditional Technology Right Angle Gearmotors |
| Frequency | 90 Hz |
| Full Load Current | 1.94/0.97A @ 230V AC, 60 Hz |
| Gear Ratio | 30:1 |
| Housing Finish | Clear Coated |
| Housing Material | Aluminum |
| Input Hp | 1/2 hp |
| Input Power | AC |
| Keyway Width | 1/4" |
| Lubrication | Semi-Fluid Grease |
| Max. Ambient Temp. | 104°F |
| Maximum Output Speed | 53 RPM |
| Maximum Torque | 487 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Insulation Class | Class B |
| Mounting Orientation | Any Angle |
| Nameplate Rpm | 53 RPM |
| Number Of Stages | 2 |
| Operating Voltage | 230/460V AC |
| Output Face Bolt Circle Diameter | 3.74" |
| Output Shaft Dia. | 1 1/4" |
| Overall Height | 7.74" |
| Overall Length | 13 3/5" |
| Overall Width | 5.86" |
| Phase | Three |
| Replacement Brushes | Not Applicable |
| Rotation | CW/CCW |
| Shaft Orientation | Right Angle |
| Standard Or Flange Mount | Standard Mount |
| Torque | 487 lbs.-in. |
| Voltage | 230/460V |
Shipping Info:
| Ship weight (kg) | 9 |
| Ship height (cm) | 19.66 |
| Ship length (cm) | 34.54 |
| Ship width (cm) | 14.88 |
| Country of Origin | US |
Product Variants
| Model | Gear Ratio | Rotation | Operating Voltage | Motor Type | Overhung Load Capacity | Inverter Rated | Lubrication | Full Load Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 026-730A0010 | 10:1 | CW/CCW | 115V AC | Permanent Split Capacitor | 465 lbs.-ft. | No | Powerstar EP | 4.84A | €1,935.31 | |
| 026-730A0015 | 15:1 | CW/CCW | 115V AC | Permanent Split Capacitor | 520 lbs.-ft. | No | Powerstar EP | 4.84A | €1,885.00 | |
| 026-730A0020 | 20:1 | CW/CCW | 115V AC | Permanent Split Capacitor | 565 lbs.-ft. | No | Powerstar EP | 4.84A | €1,885.00 | |
| 026-730A0030 | 30:1 | CW/CCW | 115V AC | Permanent Split Capacitor | 625 lbs.-ft. | No | Powerstar EP | 4.84A | €1,885.00 | |
| 026-730A0040 | 40:1 | CW/CCW | 115V AC | Permanent Split Capacitor | 675 lbs.-ft. | No | Powerstar EP | 4.84A | €1,885.00 | |
| 026-730A0050 | 50:1 | CW/CCW | 115V AC | Permanent Split Capacitor | 720 lbs.-ft. | No | Powerstar EP | 4.84A | €1,885.00 | |
| 026-730A0060 | 60:1 | CW/CCW | 115V AC | Permanent Split Capacitor | 760 lbs.-ft. | No | Powerstar EP | 4.84A | €1,885.00 |
