BALDOR MOTOR
See our 856 reviews on
BALDOR MOTOR MVM3463C IEC Frame Motor, 3600 RPM, 60 Hz, 0.50 hp, 0.75kW, 3 Phase, TEFC, D71C Frame | AJ6XVC

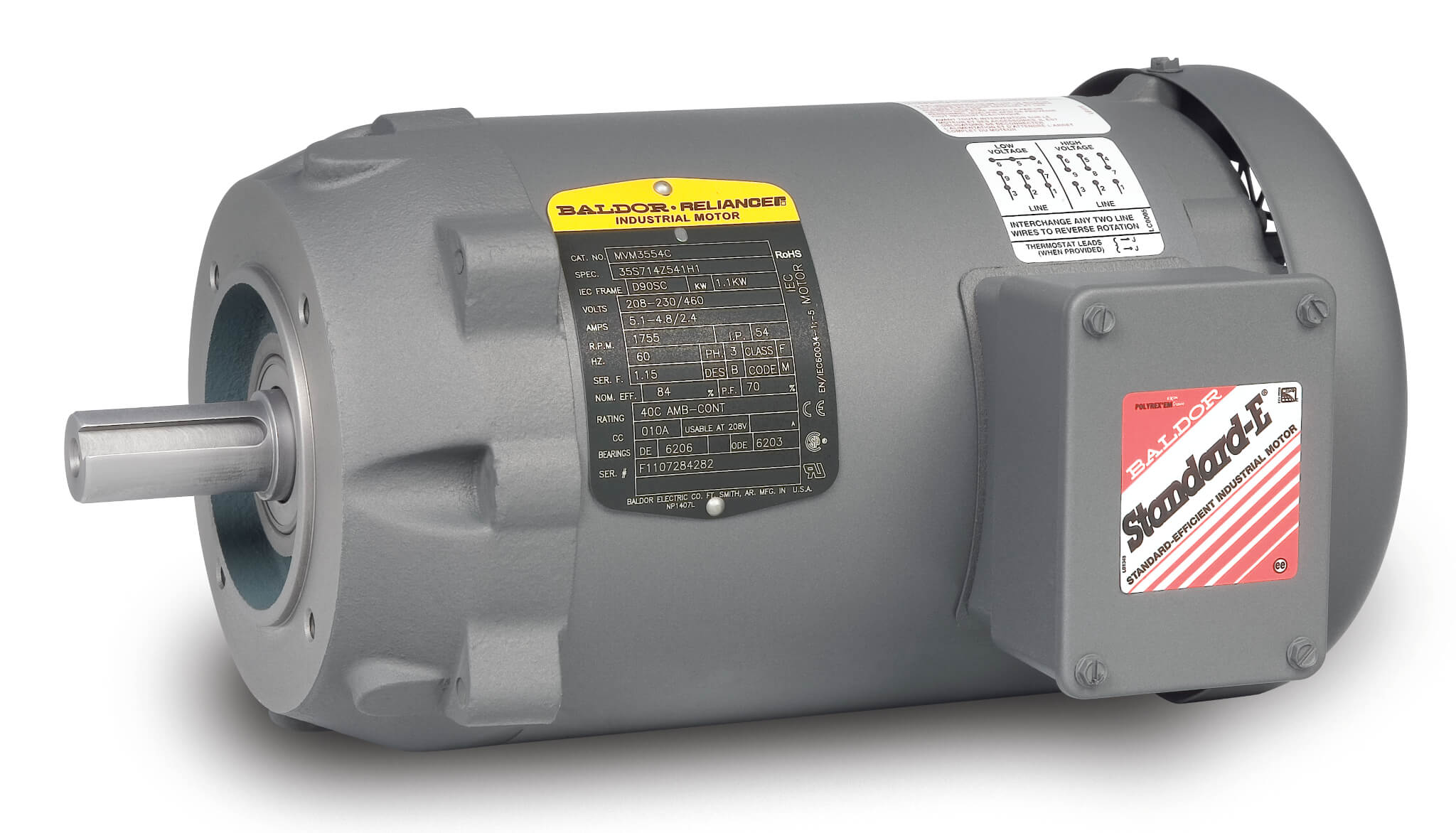

BALDOR MOTOR MVM3463C IEC Frame Motor, 3600 RPM, 60 Hz, 0.50 hp, 0.75kW, 3 Phase, TEFC, D71C Frame

Item: AJ6XVCModel: MVM3463C
Check Availability
In Stock
Full Load Amps

Get it by Thursday, Dec 18

€877.53 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item IEC Frame AC Motor
Ac/dc AC
Ambient Temp. 40°C
Amps 2.8/1.4A
Amps @ 208v 3.4A
Base Type Not Applicable
Break-down Torque 6.6 lbs.-ft.
Class Stock
Code L
Conduit Box Position F2
Design Code B
Enclosure Design TEFC
Frame D71C
Frame Size D71C
Frequency 60 Hz
Full Load Amps 2.8/1.4A
Full Load Torque 1.1 lbs.-ft.
Full Load Torque 1.1 ft.-lbs.
Hp 1/26 hp
Insulation Class Class B
Ip Rating IP54
Lead 9#18
Line-line Res. @ 25° C 17 ohms A Ph/0 ohms B Ph
Locked-rotor Torque 6.4 lbs.-ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Mounting Type Rigid Base
Multiplier K
Nameplate Rpm 3450 RPM
No Load Amps 0.75A
No. Of Motor Leads 9
No. Of Poles 2
No. Of Speeds 1
Nominal Efficiency 75.5%
Output Kw 0.56 kW
Phase 3
Power 0.56 kW
Power Factor 78
Product Datasheet baldor-motor-mvm3463c.pdf
Proprietary No
Pull-up Torque 4.4 lbs.-ft.
Revision X
Rpm 3400-3600 RPM
Service Factor 1.25
Shaft Rotation Reversible
Start Configuration DOL
Starting Amps 10.8A
Temp. Rise @ Rated Load 53°C
Temp. Rise @ S. F. Load 66°C
Type 3328M
Voltage 230/460V
Wire Size 18 AWG

Shipping Info:

Ship weight (kg) 11.7
Ship height (cm)23.81
Ship length (cm)35.09
Ship width (cm)27.47
HS code85015100
Country of OriginUS

Product Details:

    • Locked-Rotor Torque: 6.4 LB-FT
    • Nameplate No.: NP1379L
    • Pull-Up Torque: 4.4 LB-FT
    • Starting Current: 10.8 Amps

Documentation:

Datasheet

Product Variants

ProductModelVoltageHpService FactorNameplate RpmMounting TypeMotor TypeFrameInsulation ClassPrice
BALDOR MOTOR EMVM3546C IEC Frame Motor, 1800 RPM, 60 Hz, 1 hp, 0.75kW, 3 Phase, TEFC, D80C Frame | AJ6VEH EMVM3546C230/460V3/4 hp1.151760 RPMB143520MD80CClass F€1,301.61
BALDOR MOTOR EMVM3558C IEC Frame Motor, 1800 RPM, 60 Hz, 2 hp, 1.5kW, 3 Phase, TEFC, D90LC Frame | AJ6VEN EMVM3558C208-230/460V1 1/2 hp1.151755 RPMB143528MD90LCClass F€1,387.75
BALDOR MOTOR EMVM3559C IEC Frame Motor, 3600 RPM, 60 Hz, 3 hp, 2.2kW, 3 Phase, TEFC, D90LC Frame | AJ6VEQ EMVM3559C208-230/460V11/5 hp1.153450 RPMB143532MD90SC, LCClass F€1,549.64
BALDOR MOTOR EMVM3611C IEC Frame Motor, 1800 RPM, 60 Hz, 3 hp, 2.2kW, 3 Phase, TEFC, D100C Frame | AJ6VER EMVM3611C208-230/460V11/5 hp1.151760 RPMB143632MD100CClass F€1,667.96
BALDOR MOTOR EMVM3613C IEC Frame Motor, 3600 RPM, 60 Hz, 5 hp, 3.7kW, 3 Phase, TEFC, D100LC Frame | AJ6VEU EMVM3613C208-230/460V37/10 hp1.153450 RPMB143634MD100LCClass F€2,041.88
BALDOR MOTOR EMVM3615C IEC Frame Motor, 1800 RPM, 60 Hz, 5 hp, 3.7kW, 3 Phase, TEFC, D112MC Frame | AJ6VEW EMVM3615C208-230/460V37/10 hp1.151750 RPMB143642MD112MCClass F€1,903.67
BALDOR MOTOR MVM3458C IEC Frame Motor, 1800 RPM, 60 Hz, 0.33 hp, 0.25kW, 3 Phase, TEFC, D71C Frame | AJ6XUX MVM3458C230/460V1/4 hp1.35-Rigid Base-D71CClass B€792.33
