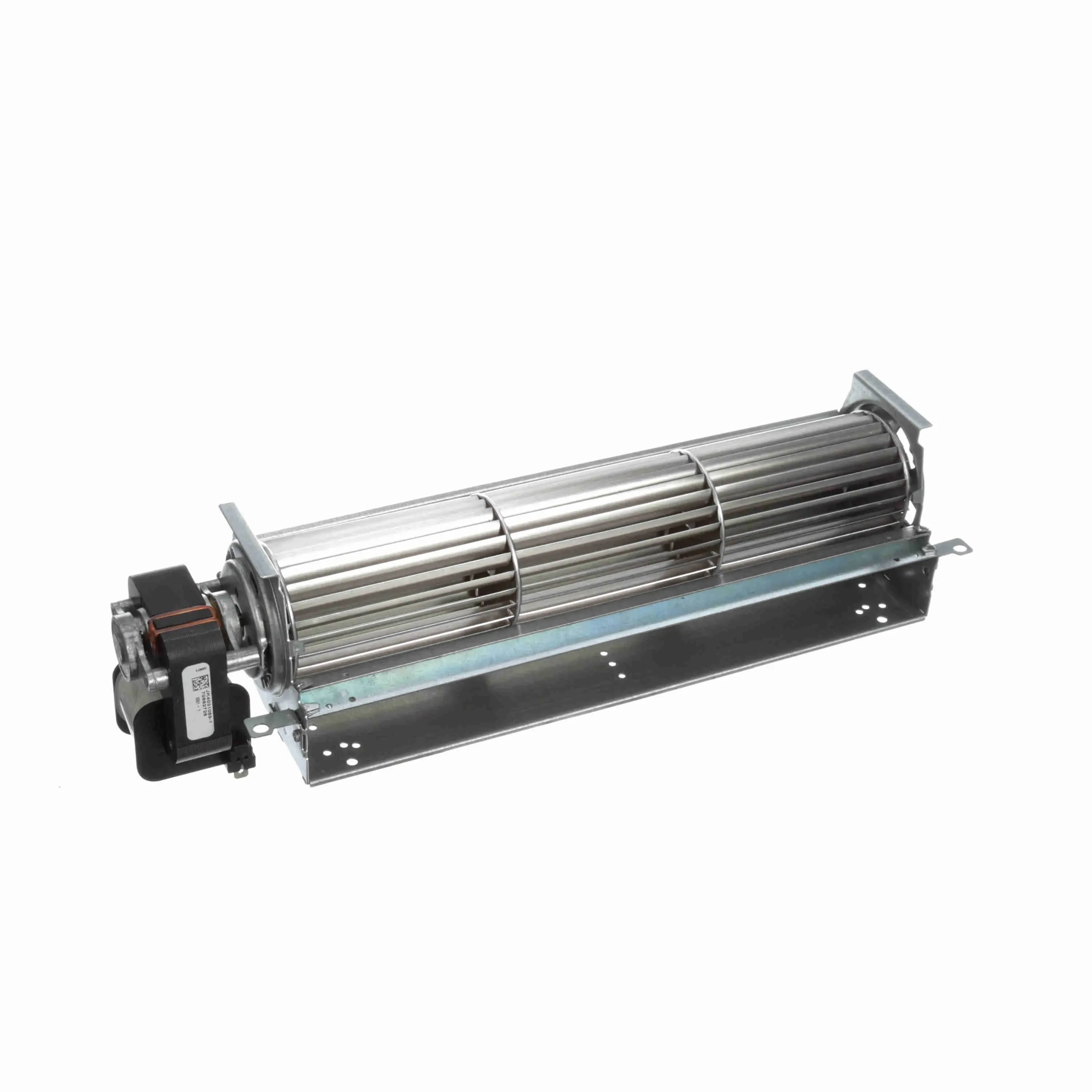

FASCO A981 Rectangular Outlet Shaded Pole OEM Replacement Crossflow Blower, 120 Volt, Without Flange
Item: CJ2XVWModel: A981Cross Ref: 45KD79
7 In Stock
Ships within 2 days via
10.00% off
€384.06 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Blower |
| Airflow @ 0.000 In Sp | 131 CFM |
| Airflow @ 0.100 In Sp | 130 CFM |
| Airflow @ 0.250 In Sp | 120 CFM |
| Ambient Temp. | 40°C |
| Ambient Temperature | 40°C |
| Amps | 0.59A |
| Assembly | Assembled |
| Bearing Type | Sleeve |
| Blower Conduit Box | No |
| Blower Outlet Flange | No |
| Blower Outlet Shape | Rectangle |
| Blower Wheel Diameter | 2 3/8" |
| Blower Wheel Width | 12" |
| Csa | Yes |
| Discharge Position | Horizontal |
| Drive Package With Motor Included? | Yes |
| Drive Type | Direct Drive |
| Features | C-Frame, Open Air Over |
| Flange Size | Not Applicable |
| For Air Type | Clean Air |
| Frequency | 60 Hz |
| Housing Color | Natural |
| Housing Finish | Metal |
| Housing Material | Steel |
| Housing Material Finish | Metal |
| Includes Drive Package | Yes |
| Includes Motor | Yes |
| Insulation Class | Class H |
| Maximum Ambient Temperature | 104°F |
| Maximum Fan Speed | 1400 RPM |
| Maximum Inlet Air Temperature | 104°F |
| Maximum Static Pressure | 0.25 in. wc |
| Minimum Fan Speed | 3100 RPM |
| Motor Enclosure | Open |
| Motor Enclosure Design | Open |
| Motor Horsepower | 1/75 hp |
| Motor Insulation | Class H |
| Motor Insulation Class | Class H |
| Motor Speed | 3000 RPM |
| Motor Type | Shaded Pole |
| Mount Type | All Position |
| Mounting Orientation | Horizontal |
| Mounting Position | All Position |
| Nameplate Voltage | 120V AC |
| No. Of Speeds | 1 |
| Number Of Discharge Positions | 1 |
| Number Of Inlets | 1 |
| Number Of Speeds | 1 |
| Oem Replacement | No |
| Outlet Dia. | Not Applicable |
| Outlet Height | 1 5/16" |
| Outlet Shape | Rectangular |
| Outlet Type | Non Flanged |
| Outlet Width | 11 7/8" |
| Overall Depth | 14 3/4" |
| Overall Height | 3 1/2" |
| Overall Width | 3 3/4" |
| Phase | 1 |
| Replacement For | 8303972, J238-8244 |
| Rotation | CW |
| Rpm | 1400/1000 RPM |
| Speed | 1400/1000 RPM |
| Thermal Overload Protection | Yes |
| Thermal Protection | Impedance |
| Ul | No |
| Voltage | 120V |
| Wheel Dia. | 2 3/8" |
| Wheel Material | Aluminum |
| Wheel Type | Forward Curved |
| Wheel Width | 12" |
| With Flange | No |
Shipping Info:
| Ship weight (kg) | 1.58 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 37.47 |
| Ship width (cm) | 9.53 |
| Country of Origin | MX |
