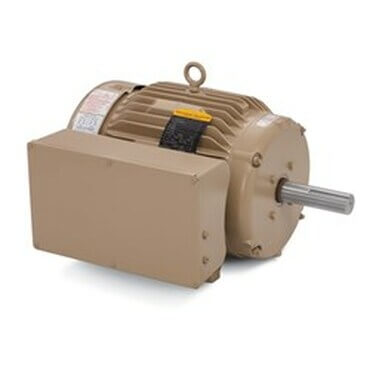

BALDOR MOTOR GDL3770T Grain Dryer Motor, 230V, 1800 RPM, 60 Hz, 7.5 hp, 1 Phase, TEFC, 215TZ Frame
Get it by Monday, Dec 22
€4,375.91 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Farm Duty Motor |
| Ambient (c) | 40 deg C |
| Ambient Temp. | 40°C |
| Amps @ Voltage | 29.6A @ 230V |
| Auxillary Box | No Auxillary Box |
| Base Indicator | Rigid |
| Base Type | Rigid Base |
| Bearing Grease Type | Polyrex EM (-20°F +300°F) |
| Break-down Torque | 63 lbs.-ft. |
| Conduit Box Material | Cast Iron |
| Conduit Box Position | F1 |
| Design Code | L |
| Drip Cover | No Drip Cover |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency @ 100% Load | 85.5% |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Enclosure Design | TEFC |
| Feedback Device | NO FEEDBACK |
| Frame | 215TZ |
| Frame Material | Iron |
| Frequency | 60 Hz |
| Front Face Code | Standard |
| Full Load Amps | 29.6A |
| Full Load Torque | 0 lbs.-ft. |
| Full Load Torque | 0 ft.-lbs. |
| Grease Temp. | -20°F to +300°F |
| Grease Type | Polyrex EM |
| Heater Indicator | No Heater |
| High Voltage Full Load Amps | 29.6A |
| Hp | 7 1/2 hp |
| Insulation Class | Class F |
| Inverter Code | Not Inverter |
| Kva Code | G |
| Lifting Lugs | Standard Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Lead Exit | Cap Box |
| Motor Lead Quantity/wire Size | 2 @ 10 AWG, A PH |
| Motor Lead Termination | Flying Leads |
| Motor Mounting Type | Rigid Base |
| Motor Type | 0743LC |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1750 RPM |
| Nema/iec | NEMA |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Output @ Frequency | 7 1/2 hp @ 60 Hz |
| Overall Length | 19.45" |
| Phase | 1 |
| Power Factor | 96 |
| Product Datasheet | baldor-motor-gdl3770t.pdf |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | Standard |
| Pulley Shaft Indicator | Standard |
| Rpm | 1750 RPM |
| Rpm Range | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 3/8" |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | Shaft Slinger |
| Speed Type | Single Speed |
| Start Type | Direct On Line |
| Synchronous Rpm | 1800 RPM |
| Synchronous Rpm @ Frequency | 1800 RPM @ 60 Hz |
| Synchronous Speed | 1800 RPM |
| Thermal Device - Winding | Normally Closed Thermostat |
| Thermal Protection | Thermostat |
| Vibration Sensor Indicator | No Vibration Sensor |
| Voltage | 230V |
| Voltage @ Frequency | 230V @ 60 Hz |
| Xp Division | Not Applicable |
Shipping Info:
| Ship weight (kg) | 99 |
| Ship height (cm) | 59.69 |
| Ship length (cm) | 80.01 |
| Ship width (cm) | 64.77 |
| HS code | 85015220 |
| Country of Origin | US |
Product Details:
- Drip Cover: No Drip Cover
- Efficiency @ 100% Load: 85.50%
- Electrically Isolated Bearing: Not Electrically Isolated
- Inverter Code: Not inverter
- KVA Code: G
- Lifting Lugs: Standard Lifting Lugs
- Locked Bearing Indicator: Locked Bearing
- Motor Lead Exit: Cap Box
- Motor Lead Quantity/Wire Size: 2 @ 10 AWG, A PH
- No-Load Current: 0 A
- Product Family: General Purpose
- Pull-Up Torque: 43.4 LB-FT
- Pulley End Bearing Type: Ball
- Pulley Face Code: Standard
- Pulley Shaft Indicator: Standard
- Shaft Diameter: 1.375 in
- Shaft Extension Location: Pulley End
- Shaft Ground Indicator: No Shaft Grounding
- Shaft Rotation: Reversible
- Shaft Slinger Indicator: Shaft Slinger
- Starting Current: 205 A
- Temp. Rise @ Rated Load: 72 deg C
- Temp. Rise @ S.F. Load: 89 deg C
