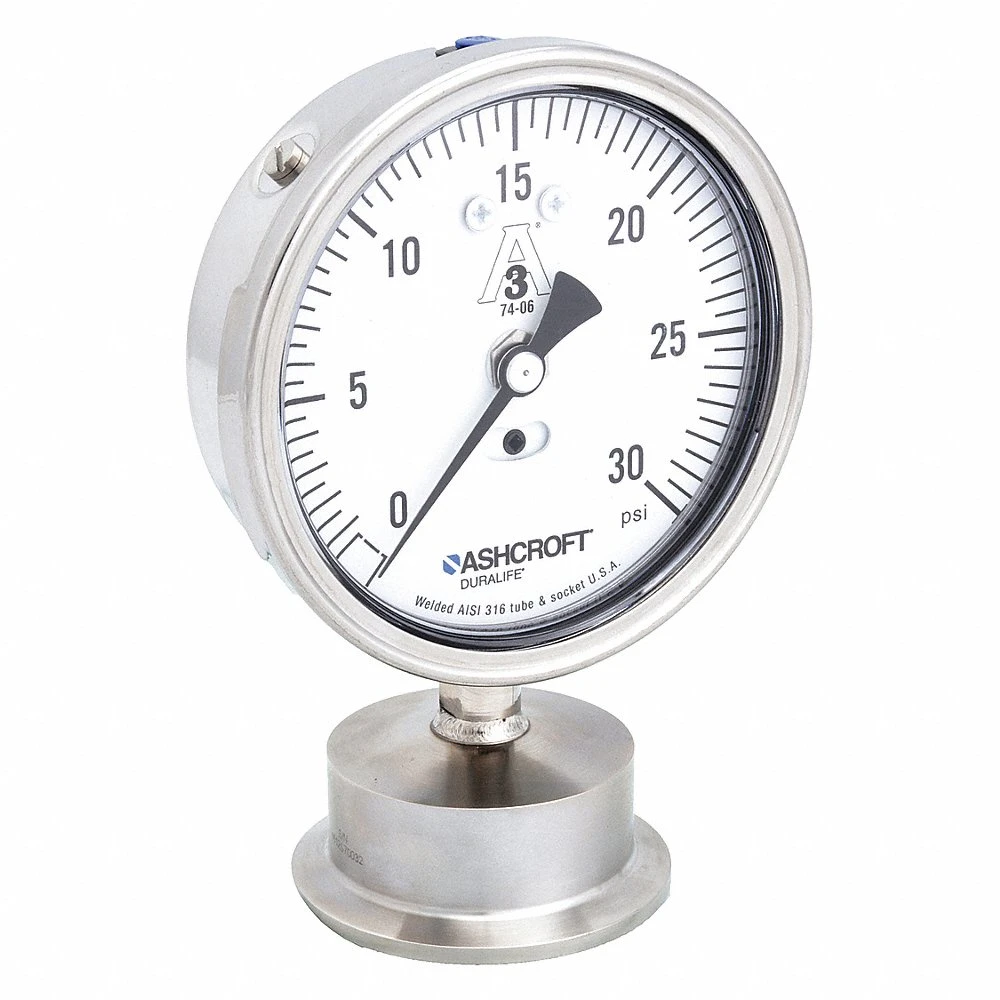

ASHCROFT 35-1032S-20L-30 Pressure Gauge, 0 to 30 PSI, 3 1/2 Inch Dial, 2 Inch Tri-Clamp, Bottom, ±1.50% Accuracy
Item: CN8YMCModel: 35-1032S-20L-30Cross Ref: 2C943
7 In Stock
0 psi to 30 psi
3 1/2"
2"
Ships within 2 days via
5.00% off
€634.22 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | -1.5% to +1.5% |
| Adjustable Pointer | No |
| Ambient Operating Temp. | -40°F to +150°F |
| Ambient Operating Temp. Range | -40°F to +150°F |
| Ambient Temp. | -40°F to +150°F |
| Application | Biotechnology, Filtration Monitoring, Food Processing Industry, Medical, Pharmaceutical, OEM Applications , Sanitary |
| Basic Gauge Case Material | Stainless Steel |
| Basic Gauge Lens Material | Plastic |
| Basic Gauge Sensor Material | Stainless Steel |
| Basic Gauge Socket Material | Stainless Steel |
| Basic Gauge Wetted Parts | Stainless Steel |
| Blowout Safety Back | No |
| Calibration Certificate | No |
| Calibration Certificate Included | No |
| Case Color | Metallic , Silver |
| Case Construction | Open Front , Open Front Case |
| Case Depth | 1 1/4" |
| Case Dia. | 3.89" |
| Case Grade | Grade 316L |
| Case Liquid | None |
| Case Material | Stainless Steel |
| Case Material Grade | Grade 316L |
| Cleaned For Oxygen Service | No |
| Color | Silver |
| Compatible Process Media | Dairy, Food, Pharmaceutical , Dairy, Food, Pharmaceuticals |
| Connection Location | LOWER |
| Connection Size | 2" |
| Connection Type | Tri Clamp |
| Dia. | 3.89" |
| Dial Color | White Black , White, Black |
| Dial Size | 3 1/2" |
| Dry Dampening Feature | None |
| Field Fillable | Yes |
| Filled With | Glycerin |
| Freeze Resistant Movement | No |
| Gauge Application | Sanitary |
| Gauge Case Liquid | None |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 2" |
| Gauge Connection Type | Triclamp |
| Gauge Filled With | Glycerin |
| Gauge Nominal Dial Size | 3 1/2" |
| Gauge Panel Mountable | No |
| Gauge Primary Range Units | Psi |
| Graduations | 5 psi |
| Hazardous Location Rating | Not Rated |
| Included Vent Plug | No |
| Ip Rating | IP65 |
| Ip Rating, Nema Rating | IP65 |
| Ip/nema Rating | Nema Ip65 |
| Lens Material | Polycarbonate |
| Liquid Filled | Yes |
| Liquid-filled Case | No |
| Material | Stainless Steel |
| Material Finish | Electro Polished |
| Material Grade | Grade 304 , Grade 316 |
| Max. Pressure | 30 psi |
| Mfr. Series | 1032S Series |
| Mounting Type | Stem Mount |
| Movement Material | Stainless Steel |
| Movement Material Grade | Grade 300 |
| Nominal Dial Size | 3 1/2" |
| Operating Temp. | -40°F to +150°F |
| Panel - Mountable | No |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure | 0 psi to 30 psi |
| Pressure And Vacuum Gauge Type | Pressure Gauge |
| Pressure Gauge Type | Sanitary Pressure Gauge |
| Pressure Type | Pressure |
| Primary Display Range | 0 to 30 |
| Primary Pressure | 0 to 30 |
| Primary Range Smallest Graduation | 0.5 |
| Primary Range Units | Psi |
| Primary Range Values | 0 to 30 |
| Primary Scale Minor Graduations | 1, 2 |
| Primary Scale Units | PSI |
| Primary Units | Psi |
| Process Connection | 2" Tri Clamp |
| Process Connection Location | Bottom |
| Process Connection Size | 2" |
| Process Connection Type | Tri Clamp |
| Process Temp. | 280°F |
| Range | 0 psi to 30 psi |
| Removable Bezel | No |
| Seal Fill Liquid | Glycerin |
| Sensor Grade | Grade 316 |
| Sensor Material | Stainless Steel |
| Sensor Material Grade | Grade 316 |
| Smallest Graduation | 0.5 psi |
| Socket Grade | Grade 316 |
| Socket Material | Stainless Steel |
| Socket Material Grade | Grade 316 |
| Type | Pressure Gauge |
| Vibration Resistance | None |
| Wetted Material | Stainless Steel |
| Wetted Parts Grade | Grade 316 |
| Wetted Parts Material | Stainless Steel |
Shipping Info:
| Ship weight (kg) | 0.7 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 9.88 |
| Ship width (cm) | 9.88 |
| Country of Origin | US |
Product Variants
| Product | Model | Case Material | Lens Material | Socket Material | Sensor Material | Pressure | Process Connection Size | Nominal Dial Size | Process Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
351032S20L 60# | Stainless Steel | Polycarbonate | 316L Stainless Steel | Stainless Steel | 0 psi to 60 psi | 2" | 3 1/2" | Tri-Clamp | €667.61 | |
 |
35 1005P XUL 02L 80# | ABS | Polycarbonate | Brass | Phosphor Bronze | 0 psi to 80 psi | 1/4" | 3 1/2" | NPT | €39.71 | |
 |
251032SL15L100# | Stainless Steel | Polycarbonate | Stainless Steel | Stainless Steel | 0 psi to 100 psi | 1 1/2" | 2 1/2" | Tri Clamp | €579.48 | |
 |
25-1032S-15L-100 | Stainless Steel | Polycarbonate | Stainless Steel | Stainless Steel | 0 psi to 100 psi | 1 1/2" | 2 1/2" | Tri Clamp | €658.65 | |
|
251032SL20L100# | Stainless Steel | Polycarbonate | Stainless Steel | Stainless Steel | 0 psi to 100 psi | 2" | 2 1/2" | Tri Clamp | €593.35 | |
|
351032S15L100# | Stainless Steel | Polycarbonate | Stainless Steel | Stainless Steel | 0 psi to 100 psi | 1 1/2" | 3 1/2" | Tri Clamp | €612.25 | |
|
351032SL15L100# | Stainless Steel | Polycarbonate | Stainless Steel | Stainless Steel | 0 psi to 100 psi | 1 1/2" | 3 1/2" | Tri Clamp | €626.11 |
