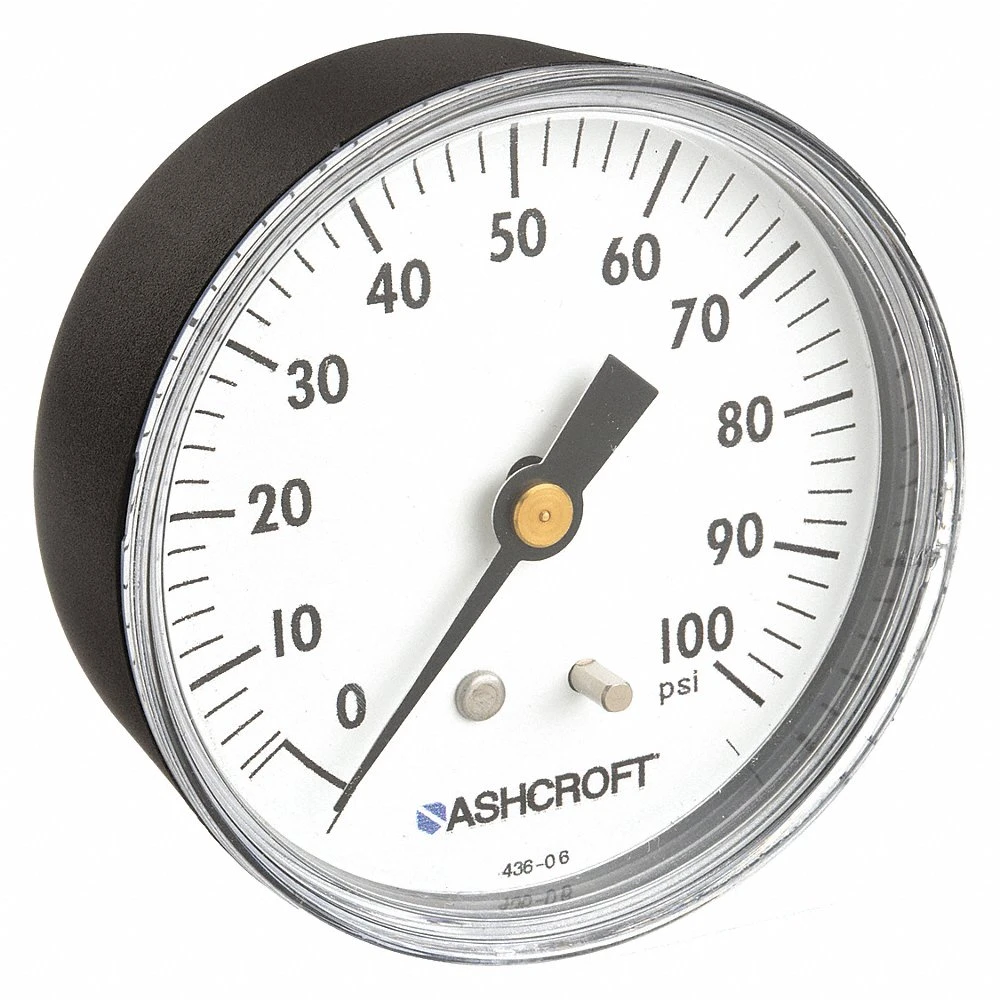

ASHCROFT 25W1005PH02B100# Industrial Pressure Gauge, 0 To 100 Psi, 2 1/2 Inch Dial, 1/4 Inch Npt Male, Center Back
Item: CN8XTEModel: 25W1005PH02B100#Cross Ref: 33HR23
7 In Stock
Ships within 2 days via
10.00% off
€37.24 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | ±3-2-3% |
| Accuracy Grade | ASME B40.100 Grade B |
| Accuracy Scale | Mid Scale |
| Ambient Operating Temperature Range | -40°F to +150°F, -40°C to +65°C |
| Ambient Temp. Range | -40°F to +150°F |
| Application | General-Purpose Case |
| Basic Gauge Case Material | Plastic |
| Basic Gauge Sensor Material | Bronze |
| Basic Gauge Socket Material | Brass |
| Blowout Safety Back | No |
| Burst Pressure | 1100 psi |
| Calibration Certificate Included | No |
| Case Color | Black |
| Case Depth | 1.14" |
| Case Dia. | 2.74" |
| Case Material | Plastic |
| Cleaned For Oxygen Service | No |
| Color | Black |
| Compatible Process Media | Water |
| Connection Location | Back |
| Dial Color | White |
| Dial Face Material | Aluminum |
| Dry Dampening Feature | Flutterguard |
| Field Fillable | No |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade B Commercial |
| Gauge Application | General Purpose Case |
| Gauge Case Color | Black |
| Gauge Case Liquid | None |
| Gauge Case Material | ABS |
| Gauge Connection Location | Center Back |
| Gauge Connection Size | 1/4" |
| Gauge Nominal Dial Size | 2 1/2" |
| Gauge Panel Mountable | No |
| Gauge Primary Range No.ed Graduations | 10 |
| Gauge Primary Range Units | Psi |
| Gauge Socket Material | Brass |
| Gauge Wetted Parts | Brass, Bronze |
| Graduations | 10 psi |
| Hazardous Location Rating | Not Rated |
| Includes Mounting Hardware | No |
| Includes Vent Plug | No |
| Ip Rating, Nema Rating | Not Rated |
| Lens Material | Polycarbonate |
| Lens Material - Gauge | Plastic |
| Liquid Filled | No |
| Liquid-filled Case | No |
| Manufacturer Warranty Length | 1 yr. |
| Mfr. Series | 1005P Series |
| Mounting Hardware Included | No |
| Mounting Type | Stem Mount |
| Movement Material | Polyester |
| Nominal Dial Size | 2 1/2" |
| Non-sparking | No |
| Panel-mountable | No |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure And Vacuum Gauge Type | Pressure Gauge |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Pressure Range | 0 psi to 100 psi |
| Pressure Range Type | Pressure |
| Primary Graduations | 10/2 |
| Primary Pressure Range | 0 psi to 100 psi |
| Primary Pressure Scale Color | Black |
| Primary Scale Minor Graduations | 2 |
| Primary Scale Numeric Increments | 10 |
| Primary Scale Units | Psi |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Center Back |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Process Temperature Range | -40°F to +150°F |
| Range | 0 psi to 100 psi |
| Removable Bezel | No |
| Scale Type | Single |
| Sensor Material | Bronze |
| Sensor Type | Bourdon Tube |
| Smallest Graduation | 2 psi |
| Socket Material | Brass |
| Vibration Resistance | Liquid Filled |
| Wetted Parts Material | Brass, Bronze |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.9 |
| Ship length (cm) | 6.96 |
| Ship width (cm) | 6.96 |
| Country of Origin | BR |
Product Variants
| Product | Model | Process Connection Location | Nominal Dial Size | Pressure Gauge Type | Pressure Range Type | Vibration Resistance | Lens Material | Accuracy | Sensor Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
20W1005PH01B 60 PSI | Center Back | 2" | Commercial Pressure Gauge | Pressure | Liquid Filled | Polycarbonate | +/-3-2-3% | Bronze | €30.70 | |
 |
35W1005PH02LXULZG300#-8382 | Bottom | 3 1/2" | Fire Sprinkler System Gauge | Pressure | - | Polycarbonate | +/-3-2-3% | Phosphor Bronze | €33.35 | |
 |
20W1005PH02LVAC | Bottom | 2" | Industrial Pressure Gauge | Vacuum | - | Polycarbonate | +/-3-2-3% | Bronze | €33.46 | |
 |
20W1005PH02B60# | Center Back | 2" | Industrial Pressure Gauge | Pressure | Liquid Filled | Polycarbonate | +/-3-2-3% | Bronze | €37.00 | |
|
20W1005PH02B100# | Center Back | 2" | Industrial Pressure Gauge | Pressure | Liquid Filled | Polycarbonate | +/-3-2-3% | Bronze | €37.00 | |
|
20W1005PH02B400# | Center Back | 2" | Industrial Pressure Gauge | Pressure | Liquid Filled | Polycarbonate | +/-3-2-3% | Bronze | €37.00 | |
|
20W1005PH02B600# | Center Back | 2" | Industrial Pressure Gauge | Pressure | Liquid Filled | Polycarbonate | +/-3-2-3% | Bronze | €37.00 |
