NTN Flange Mount Rolling Element Bearings
Filter
A
B
C
D
E
F
G
H
I
J| Style | Model | Number Of Mounting Holes | Housing Type | Overall Length | Flange Thickness | Housing Material | Overall Width | Overall Height | Mount Hole Center-to-center Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | SUCFL205-16C0FG1 | 2 | Rhombus | 4 29/32" | 17/32" | Stainless Steel | 1 13/32" | 2 21/32" | 3 57/64" | €672.40 | |
| B | SUCFL209-26CCFG1 | 2 | Rhombus | 7 5/64" | 19/32" | Stainless Steel | 2 13/64" | 4 1/4" | 5 53/64" | €1,148.95 | |
| C | SUCNFL207-20C0FG1 | 2 | Rhombus | 6 13/32" | 5/8" | Polymer | 2 27/64" | 3 17/32" | 5 7/64" | €709.82 | |
| B | SUCFL207-20CCFG1 | 2 | Rhombus | 5 13/32" | 19/32" | Stainless Steel | 1 3/4" | 3 33/64" | 5 1/8" | €999.24 | |
| A | SUCFL207-20C0FG1 | 2 | Rhombus | 5 13/32" | 19/32" | Stainless Steel | 1 3/4" | 3 33/64" | 5 1/8" | €977.97 | |
| B | SUCFL210-31CCFG1 | 2 | Rhombus | 7 15/32" | 5/8" | Stainless Steel | 2 5/32" | 4 33/64" | 6 3/16" | €1,256.64 | |
| C | SUCNFL206-19C0FG1 | 2 | Rhombus | 5 53/64" | 33/64" | Polymer | 2 1/4" | 3 9/64" | 4 39/64" | €593.63 | |
| A | SUCFL206-19C0FG1 | 2 | Rhombus | 5 17/32" | 17/32" | Stainless Steel | 1 37/64" | 3 9/64" | 4 39/64" | €726.06 | |
| B | SUCFL206-19CCFG1 | 2 | Rhombus | 5 17/32" | 17/32" | Stainless Steel | 1 37/64" | 3 9/64" | 4 39/64" | €700.68 | |
| A | SUCFL209-28C0FG1 | 2 | Rhombus | 7 5/64" | 19/32" | Stainless Steel | 2 13/64" | 4 1/4" | 5 53/64" | €1,113.72 | |
| B | SUCFL209-28CCFG1 | 2 | Rhombus | 7 5/64" | 19/32" | Stainless Steel | 2 13/64" | 4 1/4" | 5 53/64" | €1,075.47 | |
| A | SUCFL209-26C0FG1 | 2 | Rhombus | 7 5/64" | 19/32" | Stainless Steel | 2 13/64" | 4 1/4" | 5 53/64" | €1,113.72 | |
| C | SUCNFL208-24C0FG1 | 2 | Rhombus | 6 7/8" | 25/32" | Polymer | 2 51/64" | 3 15/16" | 5 21/32" | €749.38 | |
| C | SUCNFL207-23C0FG1 | 2 | Rhombus | 6 13/32" | 5/8" | Polymer | 2 27/64" | 3 17/32" | 5 7/64" | €697.88 | |
| B | SUCFL207-23CCFG1 | 2 | Rhombus | 5 13/32" | 19/32" | Stainless Steel | 1 3/4" | 3 33/64" | 5 1/8" | €877.96 | |
| A | SUCFL207-23C0FG1 | 2 | Rhombus | 5 13/32" | 19/32" | Stainless Steel | 1 3/4" | 3 33/64" | 5 1/8" | €876.74 | |
| C | SUCNFL204-12C0FG1 | 2 | Rhombus | 4 7/16" | 7/16" | - | 1 53/64" | 2 35/64" | 3 17/32" | €446.12 | |
| A | SUCFL204-12C0FG1 | 2 | Rhombus | 4 25/64" | 1/2" | Stainless Steel | 1 21/64" | 2 11/32" | 3 35/64" | €536.38 | |
| A | SUCFL210-31C0FG1 | 2 | Rhombus | 7 15/32" | 5/8" | Stainless Steel | 2 5/32" | 4 33/64" | 6 3/16" | €1,217.11 | |
| A | SUCFL208-24C0FG1 | 2 | Rhombus | 6 49/64" | 19/32" | Stainless Steel | 2 1/32" | 3 59/64" | 5 43/64" | €1,036.22 | |
| B | SUCFL206-20CCFG1 | 2 | Rhombus | 5 17/32" | 17/32" | Stainless Steel | 1 37/64" | 3 9/64" | 4 39/64" | €694.46 | |
| A | SUCFL206-20C0FG1 | 2 | Rhombus | 5 17/32" | 17/32" | Stainless Steel | 1 37/64" | 3 9/64" | 4 39/64" | €726.06 | |
| C | SUCNFL206-20C0FG1 | 2 | Rhombus | 5 53/64" | 33/64" | Polymer | 2 1/4" | 3 9/64" | 4 39/64" | €582.53 | |
| D | SUCNFL206-20CCFG1 | 2 | Rhombus | 5 53/64" | 33/64" | Polymer | 2 1/4" | 3 9/64" | 4 39/64" | €604.52 | |
| C | SUCNFL205-16C0FG1 | 2 | Rhombus | 5 7/64" | 33/64" | Polymer | 2" | 2 3/4" | 3 57/64" | €528.56 | |
| E | SUCFB207-23CCFG1 | 3 | Flange Bracket | 3 17/32" | 1/2" | Stainless Steel | 1 3/4" | 5 63/64" | 1 1/4" | €908.82 | |
| E | SUCFB204-12C0FG1 | 3 | Flange Bracket | 2 3/8" | 19/64" | Stainless Steel | 1 7/16" | 4 3/16" | 1 1/2" | €583.77 | |
| E | SUCFB205CC | 3 | Flange Bracket | 67 mm | 9.7 mm | Stainless Steel | 35.8 mm | 119 mm | 41.4 mm | €662.02 | |
| E | SUCFB206-20 | 3 | Flange Bracket | 3 1/8" | 3/8" | Stainless Steel | 1 37/64" | 5 19/64" | 1 1/4" | €690.23 | |
| E | SUCFB208-24FG1 | 3 | Flange Bracket | 3 15/16" | 1/2" | Stainless Steel | 2 11/64" | 6 29/64" | 1 39/64" | €1,050.62 | |
| E | SUCFB205CCFG1 | 3 | Flange Bracket | 67 mm | 9.7 mm | Stainless Steel | 35.8 mm | 119 mm | 41.4 mm | €678.91 | |
| F | SUCFBL204-12 | 3 | Flange Bracket | 2 1/2" | 7/16" | Polymer | 1 53/64" | 4 1/4" | 1 1/2" | €358.59 | |
| E | SUCFB206-19FG1 | 3 | Flange Bracket | 3 1/8" | 3/8" | Stainless Steel | 1 37/64" | 5 19/64" | 1 1/4" | €765.50 | |
| E | SUCFB208FG1 | 3 | Flange Bracket | 100 mm | 12.7 mm | Stainless Steel | 51.2 mm | 164 mm | 50 mm | €1,050.62 | |
| F | SUCFBL206 | 3 | Flange Bracket | 83 mm | 13.3 mm | Stainless Steel | 41.5 mm | 138.5 mm | 47.6 mm | €473.82 | |
| E | SUCFB206C0FG1 | 3 | Flange Bracket | 79.5 mm | 9.7 mm | Stainless Steel | 40.2 mm | 135 mm | 47.8 mm | €748.00 | |
| E | SUCFB206FG1 | 3 | Flange Bracket | 79.5 mm | 9.7 mm | Stainless Steel | 40.2 mm | 135 mm | 47.8 mm | €765.50 | |
| E | SUCFB204-12C0 | 3 | Flange Bracket | 2 3/8" | 19/64" | Stainless Steel | 1 7/16" | 4 3/16" | 1 1/2" | €565.39 | |
| E | SUCFB205FG1 | 3 | Flange Bracket | 67 mm | 9.7 mm | Stainless Steel | 35.8 mm | 119 mm | 41.4 mm | €700.09 | |
| F | SUCFBL204 | 3 | Flange Bracket | 63.5 mm | 11.4 mm | Stainless Steel | - | 108 mm | 38.1 mm | €353.26 | |
| E | SUCFB208C0 | 3 | Flange Bracket | 100 mm | 12.7 mm | Stainless Steel | 51.2 mm | 164 mm | 50 mm | €1,007.63 | |
| G | SUCFB207-20CC | 3 | Flange Bracket | 3 17/32" | 1/2" | Stainless Steel | 1 3/4" | 5 63/64" | 1 1/4" | €891.96 | |
| E | SUCFB204-12FG1 | 3 | Flange Bracket | 2 3/8" | 19/64" | Stainless Steel | 1 7/16" | 4 3/16" | 1 1/2" | €588.68 | |
| E | SUCFB204-12CCFG1 | 3 | Flange Bracket | 2 3/8" | 19/64" | Stainless Steel | 1 7/16" | 4 3/16" | 1 1/2" | €607.75 | |
| E | SUCFB204-12 | 3 | Flange Bracket | 2 3/8" | 19/64" | Stainless Steel | 1 7/16" | 4 3/16" | 1 1/2" | €507.38 | |
| F | ZUCFBL204-12 | 3 | Flange Bracket | 2 7/16" | 1 1/32" | Polymer | 1 21/64" | 3" | 1 1/2" | €246.80 | |
| H | SUCFBL204-12C0FG1 | 3 | Flange Bracket | 2 1/2" | 7/16" | Polymer | 1 53/64" | 4 1/4" | 1 1/2" | €422.56 | |
| E | SUCFB205C0 | 3 | Flange Bracket | 67 mm | 9.7 mm | Stainless Steel | 35.8 mm | 119 mm | 41.4 mm | €669.86 | |
| F | SUCFBL207 | 3 | Flange Bracket | 95 mm | 16.1 mm | Stainless Steel | 47.1 mm | 157 mm | 50.8 mm | €587.70 | |
| E | SUCFB207CC | 3 | Flange Bracket | 90 mm | 12.7 mm | Stainless Steel | 44.4 mm | 152.2 mm | 50.8 mm | €828.23 | |
| E | SUCFB207C0 | 3 | Flange Bracket | 90 mm | 12.7 mm | Stainless Steel | 44.4 mm | 152.2 mm | 50.8 mm | €899.59 | |
| I | SUCFBL204-12CCFG1 | 3 | Flange Bracket | 2 1/2" | 7/16" | Polymer | 1 53/64" | 4 1/4" | 1 1/2" | €417.12 | |

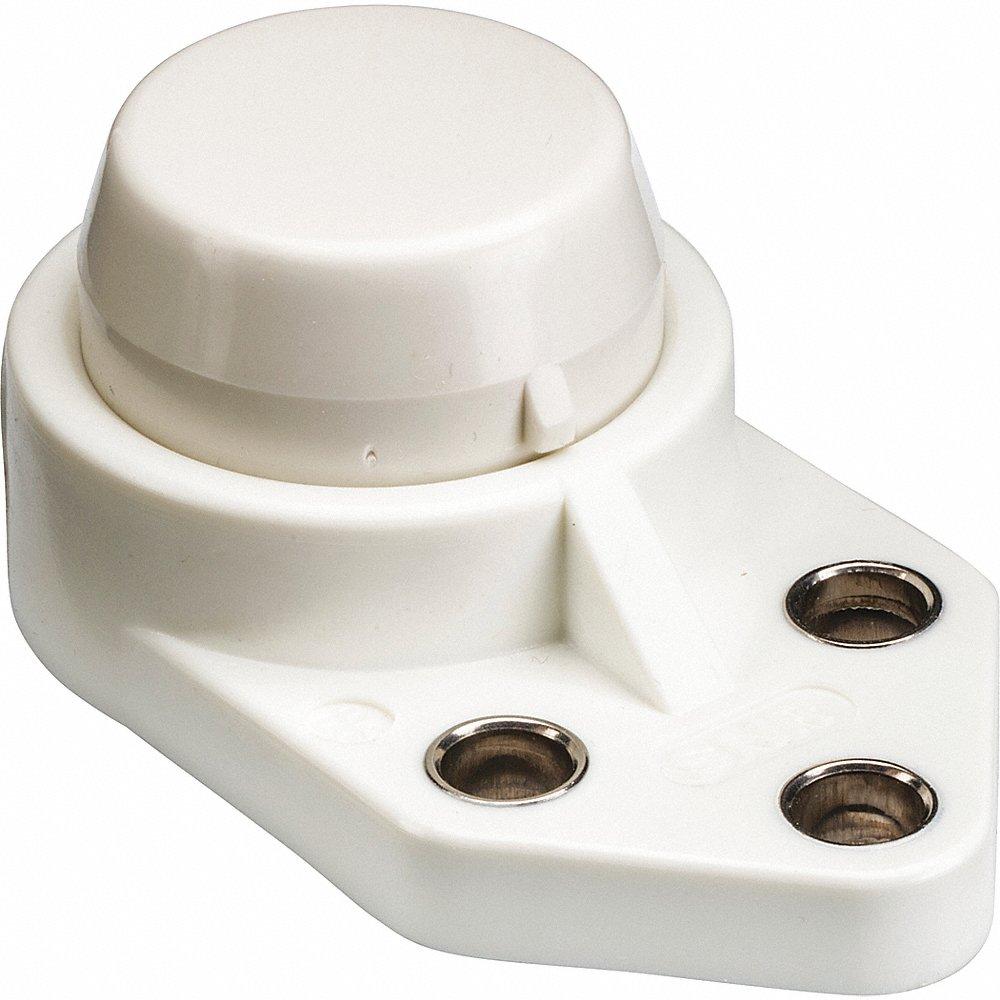

| J | SUCFBL207-20CCFG1 | 3 | Flange Bracket | 3 47/64" | 5/8" | Polymer | 2 35/64" | 6 11/64" | 2" | €689.38 | |
| E | SUCFB205 | 3 | Flange Bracket | 60.5 mm | 8 mm | Stainless Steel | 33.3 mm | 108 mm | 38.1 mm | €642.68 | |
| E | SUCFB204FG1 | 3 | Flange Bracket | 60.5 mm | 8 mm | Stainless Steel | 33.3 mm | 108 mm | 38.1 mm | €588.68 | |
| E | SUCFB204CCFG1 | 3 | Flange Bracket | 60.5 mm | 8 mm | Stainless Steel | 33.3 mm | 108 mm | 38.1 mm | €607.75 | |
| E | SUCFB207-22C0 | 3 | Flange Bracket | 3 17/32" | 1/2" | Stainless Steel | 1 3/4" | 5 63/64" | 1 1/4" | €900.69 | |
| E | SUCFB207-23FG1 | 3 | Flange Bracket | 3 17/32" | 1/2" | Stainless Steel | 1 3/4" | 5 63/64" | 1 1/4" | €883.92 | |
| E | SUCFB207-23 | 3 | Flange Bracket | 3 17/32" | 1/2" | Stainless Steel | 1 3/4" | 5 63/64" | 1 1/4" | €865.67 | |
| I | SUCFBL205-16CCFG1 | 3 | Flange Bracket | 2 3/4" | 7/16" | Polymer | 2 13/64" | 4 3/4" | 1 5/8" | €493.29 | |
| F | SUCFBL205-16 | 3 | Flange Bracket | 2 3/4" | 7/16" | Polymer | 2 13/64" | 4 3/4" | 1 5/8" | €376.73 |
