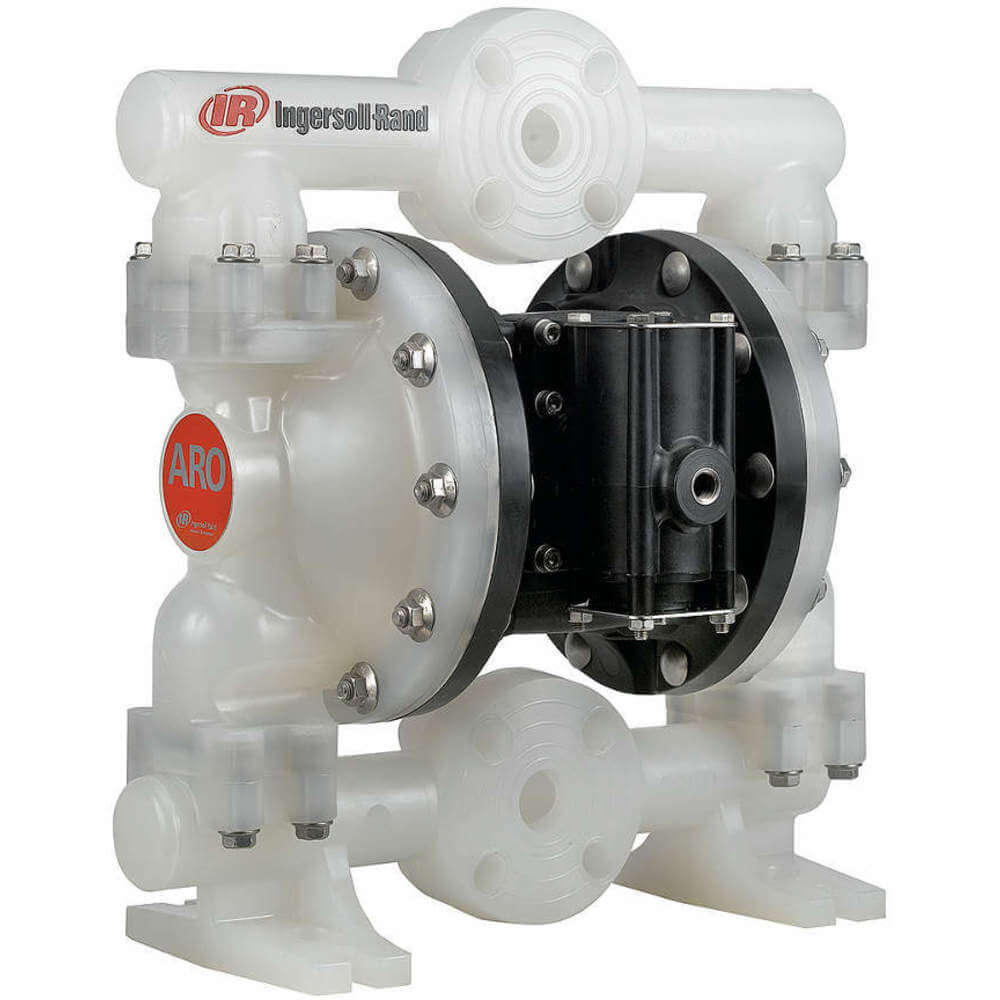

ARO PD10P-YPS-PTT Diaphragm Pump Air Operatd 1 Inch 120 Psi
Get it by Monday, Aug 24
5.00% off
€2,977.26 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Double Diaphragm Pump |
| Air Consumption | 50 SCFM |
| Air Inlet | 1/4" Flange |
| Air Inlet Size | 1/4" FNPT |
| Air Pressure | 120 psi |
| Ball Material | PTFE |
| Center Section Material | Plastic |
| Check Seat Material | Polypropylene |
| Connection Size | 1" |
| Connection Type | Flanged, NPT |
| Diaphragm Material | PTFE |
| Display Qty | 1 |
| Flow Rate @ 100 Psi | 50.5 GPM |
| Flow Rate @ 120 Psi | 51.5 GPM |
| Flow Rate @ 40 Psi | 22 GPM |
| Flow Rate @ 50 Psi | 31.5 GPM |
| Flow Rate @ 60 Psi | 37.2 GPM |
| Flow Rate @ 70 Psi | 41 GPM |
| Flow Rate @ 80 Psi | 45.75 GPM |
| Flow Rate @ 90 Psi | 48.6 GPM |
| Fluid Intake Connection | 1" Flange |
| Fluid Outlet Connection | 1" Flange |
| For Use With Potable Systems | Yes |
| Housing Material | Polypropylene |
| Inlet Size | 1" |
| Manifold Connection | Single Port |
| Manifold Connection Type | Flange |
| Max. Discharge Pressure | 120 psi |
| Max. Flow Gpm | 53 |
| Max. Flow Rate | 51.5 GPM |
| Max. Head | 289 ft. |
| Max. Media Temp. | 225°F |
| Max. Operating Pressure | 120 psi |
| Max. Solid Dia. | 0.13" |
| Max. Viscosity | 40000 cPS |
| Media Discharge Location | Center |
| Media Intake Location | Center |
| Min. Media Temp. | 40°F |
| Mounting Hardware Material | Stainless Steel |
| Nameplate Voltage | N |
| Npshr | 38 ft. |
| Operation Type | Air Operated |
| Overall Height | 14 4/5" |
| Overall Length | 14 1/5" |
| Overall Width | 11" |
| Power Source | Air |
| Priming | Self Priming |
| Pump Assembly Type | Bolt |
| Self Priming | Yes |
| Self Priming Dry | 19 ft. |
| Self-priming Dry | 19 ft. |
| Series | PX10P Series |
| Series Family | Exp |
| Valve Material | PTFE |
| Valve Type | Ball |
Shipping Info:
| Ship weight (kg) | 10.61 |
| Ship height (cm) | 37.59 |
| Ship length (cm) | 36.07 |
| Ship width (cm) | 27.94 |
| HS code | 8413500050 |
| Country of Origin | US |
Product Variants
| Product | Model | Housing Material | Max. Flow Rate | Max. Media Temp. | Diaphragm Material | Overall Width | Wetted Material | Outlet Size | Max. Solid Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PD01P-HPS-PTT-A | Polypropylene | 5.4 GPM | 225°F | PTFE | 5 3/5" | - | - | 0.06" | €1,005.95 | |
 |
DAB05-PPUU-2-F | Polypropylene | 14.4 GPM | - | - | - | - | - | - | €1,569.43 | |
|
DAB05-PPAA-2-E | Polypropylene | 14.4 GPM | - | - | - | Polypropylene, Santoprene | - | - | €1,760.96 | |
|
DAB05-SSTT-2-H | Stainless Steel | 12 GPM | - | - | - | Stainless Steel, PTFE | 5/8" | - | €3,676.31 | |
|
DAB05-ASCC-2-G | Aluminum | 12 GPM | - | - | - | Aluminum, Hytrel | 1/2" | - | €1,946.83 | |
 |
666053-388 | Polypropylene | 13.1 GPM | 150°F | Polyurethane | 6 1/2" | - | - | 0.09" | €1,643.36 | |
 |
66605J-344 | Polypropylene | 13.1 GPM | 225°F | PTFE | 6 1/2" | - | - | 0.09" | €1,990.19 |
