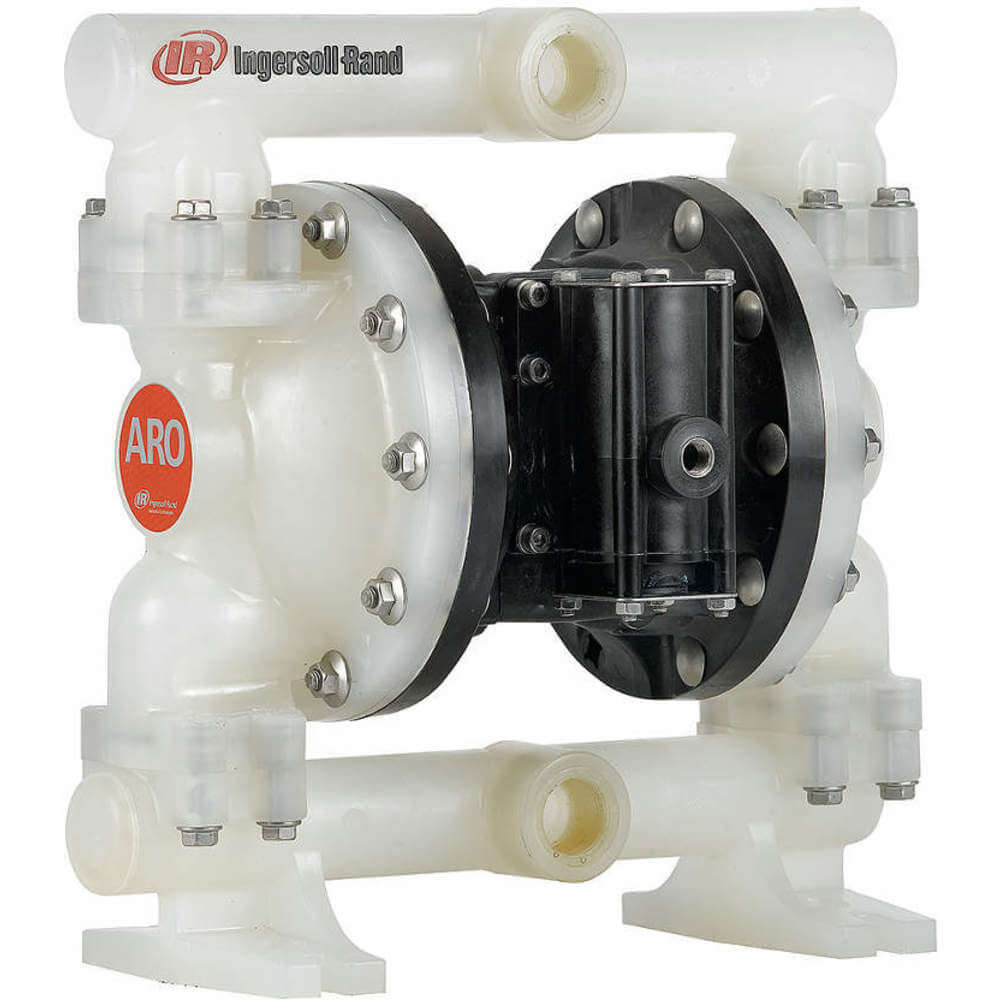

ARO PD10P-APS-PAA Diaphragm Pump Air Operatd 1 Inch 120 Psi
Get it by Tuesday, Dec 23
10.00% off
€2,338.84 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Double Diaphragm Pump |
| Air Consumption | 50 SCFM |
| Air Inlet Size | 1/4" |
| Air Inlet Type | NPT |
| Ball Material | Santoprene |
| Center Section Material | Plastic |
| Check Seat Material | Polypropylene |
| Compatible Chemicals | Ammonium Hydroxide, Calcium Carbonate, Diesel Exhaust Fluid, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Hydrochloric Acid 40%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hypochlorite 5%, Sodium Hypochlorite 10%, Sodium Hypochlorite 20%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Sulfuric Acid 50%, Sulfuric Acid 60%, Sulfuric Acid 70%, Water |
| Connection Size | 1" |
| Connection Type | NPTF |
| Diaphragm Material | Santoprene |
| Display Qty | 1 |
| Flow Rate @ 100 Psi | 50.5 GPM |
| Flow Rate @ 120 Psi | 51.5 GPM |
| Flow Rate @ 40 Psi | 22 GPM |
| Flow Rate @ 50 Psi | 31.5 GPM |
| Flow Rate @ 60 Psi | 37.2 GPM |
| Flow Rate @ 70 Psi | 41 GPM |
| Flow Rate @ 80 Psi | 45.75 GPM |
| Flow Rate @ 90 Psi | 48.6 GPM |
| Fluid Intake Connection | 1" Nptf |
| Fluid Outlet Connection | 1" Nptf |
| For Use With Potable Systems | Yes |
| Housing Material | Polypropylene |
| Inlet Size | 1/4" |
| Manifold Connection | Single Port |
| Manifold Connection Type | NPT |
| Manufacturers Warranty Length | 5 yrs. |
| Max. Discharge Pressure | 120 psi |
| Max. Flow Gpm | 53 |
| Max. Flow Rate | 51.5 GPM |
| Max. Head | 289 ft. |
| Max. Media Temp. | 225°F |
| Max. Operating Pressure | 120 psi |
| Max. Solid Dia. | 0.13" |
| Max. Viscosity | 40000 cPS |
| Media Discharge Location | Center, Side |
| Media Intake Location | Center |
| Min. Media Temp. | -40°F |
| Mounting Hardware Material | Stainless Steel |
| Npshr | 38 ft. |
| Operation Type | Air Operated |
| Overall Length | 14 1/5" |
| Overall Width | 11" |
| Power Source | Air |
| Priming | Self Priming |
| Pump Assembly Type | Bolt |
| Rated Air Pressure | 120 psi |
| Self Priming | Yes |
| Self Priming Dry | 19 ft. |
| Self-priming Dry | 19 ft. |
| Series | PX10P Series |
| Series Family | Exp |
| Valve Material | Santoprene |
| Valve Type | Ball |
| Warranty | 5 yrs. |
Shipping Info:
| Ship weight (kg) | 10.24 |
| Ship height (cm) | 37.59 |
| Ship length (cm) | 36.07 |
| Ship width (cm) | 27.94 |
| HS code | 8413500050 |
| Country of Origin | US |
Product Variants
| Product | Model | Max. Flow Rate | Diaphragm Material | Max. Media Temp. | Valve Material | Inlet Size | Min. Media Temp. | Ball Material | Media Discharge Location | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
PD10P-APS-PTT | 51.5 GPM | PTFE | 225°F | PTFE | 1/4" | 40°F | PTFE | Center, Side | €3,014.36 | |
 |
PD10P-FPS-PAA | 51.5 GPM | Santoprene | 225°F | Santoprene | 1" | -40°F | Santoprene | Center, Side | €2,719.83 | |
|
PD10P-FPS-PTT | 51.5 GPM | PTFE | 225°F | PTFE | 1" | 40°F | PTFE | Side | €3,148.06 | |
 |
PD10P-YPS-PAA | 51.5 GPM | Santoprene | 225°F | Santoprene | 1" | -40°F | Santoprene | Center, Side | €2,719.83 | |
|
PD10P-YPS-PTT | 51.5 GPM | PTFE | 225°F | PTFE | 1" | 40°F | PTFE | Center | €3,148.06 | |
 |
PD10P-APS-PCC | 53 GPM | Hytrel | 150°F | - | 1/4" | - | - | - | €3,917.85 |
