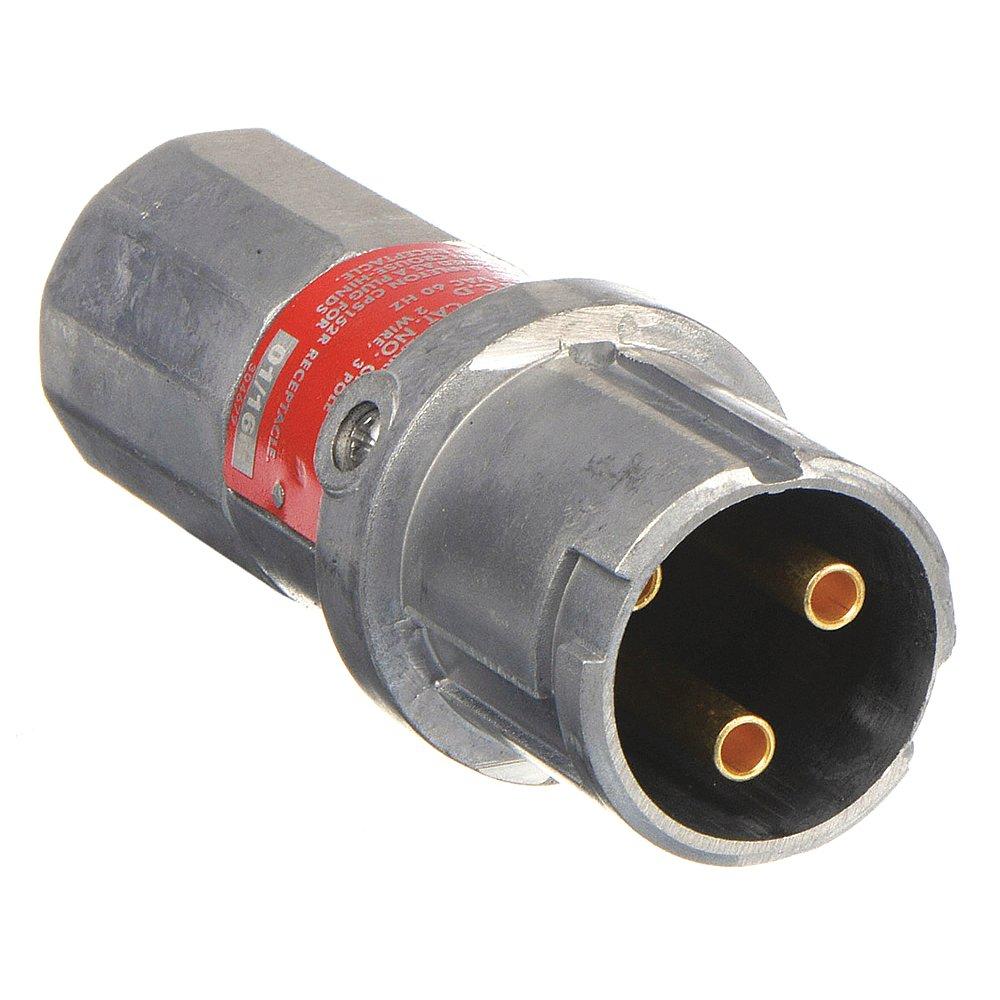

APPLETON ELECTRIC CPP516 Pin and Sleeve Plug, 20 A, 125 to 250V AC, 1 hp
Item: AA4DMXModel: CPP516Cross Ref: 12G209
7 In Stock
Ships within 2 days via
10.00% off
€586.94 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pin and Sleeve Plug |
| Amps | 20A |
| Cap Type | No Cap, Cover |
| Compatible With Series | Contender Cps |
| Connection Orientation | Straight |
| Current Rating | 20A |
| Face Dia. | 1 14/25" |
| Face Diameter | 1.56" |
| Features | Plug And Receptacles Are Supplied With Pressure Terminal Connectors |
| For Environment | Corrosive, Damp, Hazardous Location |
| For Maximum Cable Dia. | 0.639" |
| For Minimum Cable Diameter | 0.538" |
| Grounding | Grounded |
| Hazardous Location Specification | Class I, Div 1 And 2, Group C, D |
| Horsepower Rating | 1 hp |
| Housing Color | Gray |
| Housing Material | Copper Free Aluminum |
| Housing Material Finish | Epoxy Coat With Powder Finish |
| Insulation Material | Fiberglass Reinforced Polyester |
| Material | Copper Free Aluminum |
| Number Of Poles | 3 |
| Number Of Wires | 2 |
| Outside Dia. | 1.86" |
| Overall Length | 4.81" |
| Phase | Single |
| Product Datasheet | appleton-electric-gfs1.pdf |
| Reverse Service | No |
| Switch Rated | No |
| Voltage | 125-250V |
| Voltage Rating | 125-250V AC |
Shipping Info:
| Ship weight (kg) | 0.29 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 33.02 |
| Ship width (cm) | 26.67 |
| HS code | 8536698000 |
| Country of Origin | MX |
