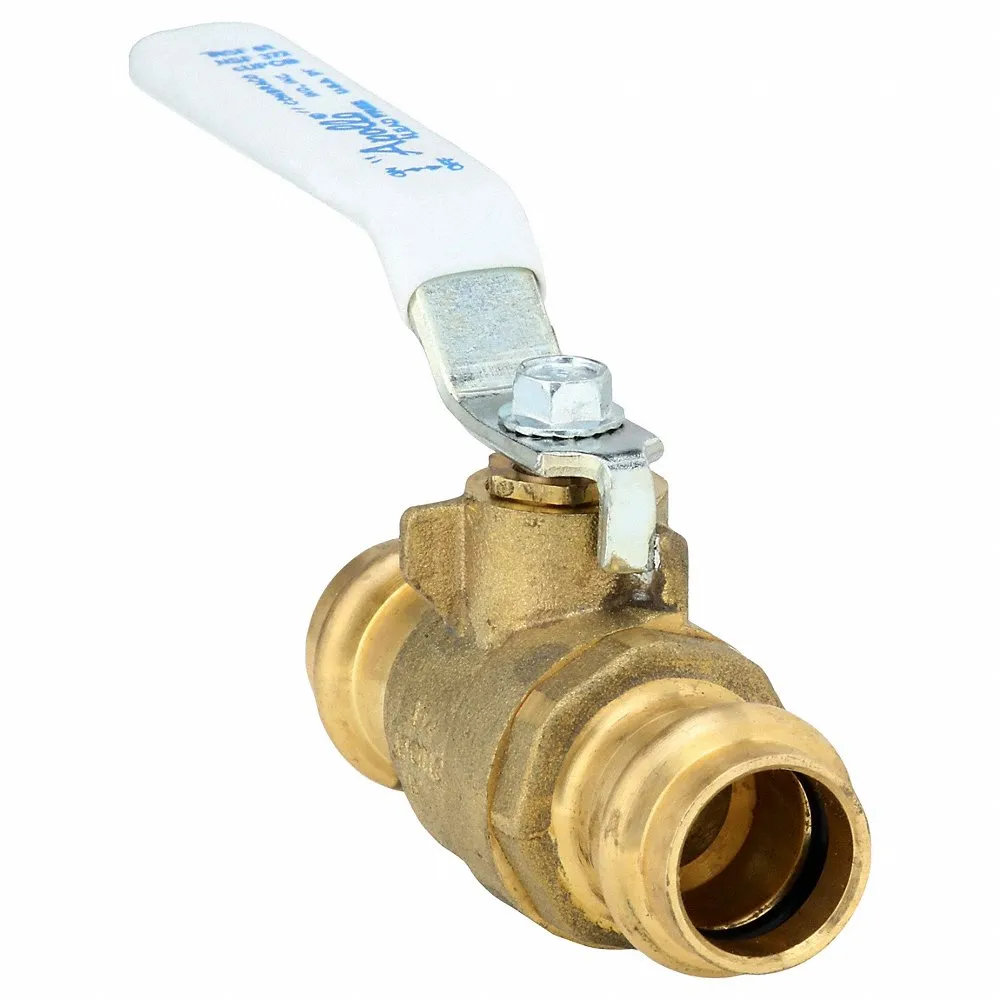

APOLLO VALVES 77VLF14301 Lead Free Brass 2 Pcs Full Port Ball Valve, STD Configuration 1/2 Inch, 2 x Press, 19.66 x 6.69 x 9.08 Inch
Item: AC6WMEModel: 77VLF14301Cross Ref: 36N590
7 In Stock
Ships within 2 days via
10.00% off
€61.35 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Ball Material | Stainless Steel |
| Ball Port Style | Full Port |
| Ball Valve Product Group | Manual |
| Body Material | Brass |
| Body Style | Inline |
| Bore Type | Full Bore |
| Cleaned And Bagged | Not Cleaned And Bagged |
| Coefficient Of Volume (cv) | 0.01 |
| Color | Yellow, Bronze |
| Connection Size | 1/2" x 1/2" |
| Connection Size - Side 1 | 1/2" |
| Connection Size - Side 2 | 1/2" |
| Connection Type | Press |
| Connection Type - Side 1 | Press |
| Connection Type - Side 2 | Press |
| Contour Code | V |
| D-1 | 0.95 |
| D1 | 0.63 |
| D2 | 0.63 |
| Dimensions | 19.66" x 6.69" x 9.08" |
| E | 0.5 |
| Finish | None |
| For Media | Water |
| Grade | Grade 316 |
| Grease-free | No |
| Handgrip Length | 0.52" |
| Handle | Lever |
| Handle Color | Yellow |
| Handle Height | 1.67" |
| Handle Length | 2.86" |
| Handle Material | Plated Steel, PVC |
| Handle Type | Lever |
| Handle/hand Wheel Height | 0.63" |
| Housing Construction | 2-Part |
| Lead Free | Yes |
| Length Of Connection 1 | 1.57" |
| Length Of Connection 2 | 1.32" |
| M1 | 0.52 |
| M2 | 2.86 |
| Manufacturer Warranty | 5 yrs. |
| Max. Operating Pressure | 300 psi |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 300 psi |
| Max. Steam Pressure | 15 psi |
| Media Temp. Range | 0°F to 250°F |
| Medically Clean | No |
| Nominal Valve Size | 1/2" |
| Outer Pipe Dia. Connection 1 | 0.63" |
| Outer Pipe Dia. Connection 2 | 0.63" |
| Overall Length | 2.89" |
| Product Datasheet | apollo-valves-77vlf10301.pdf |
| Seal Material | EPDM |
| Seat Material | PTFE |
| Series | 77V Series Ball Valves |
| Shape | Straight |
| Size | 1/2" |
| Spindle Material | Stainless steel |
| Stem Grade | Grade 316 |
| Stem Material | Stainless Steel |
| Stem Type | Blowout Resistant |
| Surface Protection | None |
| Temp. Range | 0°F to 250°F |
| U | 0.69 |
| V | 1.05 |
| Vacuum Service Rating | 29 in. hg |
| Valve Body Color | Bronze |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Valve Series | 77V Series |
| With Filter | No |
| With Thermometer | No |
| Working Length Connection 1 | 0.82" |
| Working Length Connection 2 | 0.57" |
| Y | 0.63 |
| Z1 | 0.82 |
| Z2 | 0.57 |
Shipping Info:
| Ship weight (kg) | 0.19 |
| Ship height (cm) | 23.06 |
| Ship length (cm) | 49.94 |
| Ship width (cm) | 16.99 |
| HS code | 8481803070 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Connection Type | Max. Steam Pressure | Ball Material | Stem Material | Handle Material | Overall Length | Temp. Range | Connection Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
77VLF10301 | Press | 15 psi | Brass | Brass | Plated Steel, PVC | 2.89" | 0°F to 250°F | 1/2" x 1/2" | €52.64 | |
 |
77VLF10401 | Press | 15 psi | Brass | Brass | Plated Steel, PVC | 3.63" | 0°F to 250°F | 3/4" x 3/4" | €69.92 | |
|
77VLF10501 | Press | 15 psi | Brass | Brass | Plated Steel, PVC | 3.88" | 0°F to 250°F | 1" x 1" | €91.48 | |
 |
77VLF10601 | Press | 15 psi | Brass | Brass | Plated Steel, PVC | 4.22" | 0°F to 250°F | 1 1/4" x 1 1/4" | €179.49 | |
 |
77VLF10701 | Press | 15 psi | Brass | Brass | Plated Steel, PVC | 5.45" | 0°F to 250°F | 1 1/2" x 1 1/2" | €222.64 | |
 |
77VLF10801 | Press | 15 psi | Brass | Brass | Plated Steel, PVC | 6.57" | 0°F to 250°F | 2" x 2" | €358.96 | |
 |
77VLF14001 | Press x Press | 15 psi WSP | Stainless Steel | Stainless Steel | PVC, Zinc Plated Steel | 9" | 0°F to +250°F | 3" x 3" | €1,226.07 |
