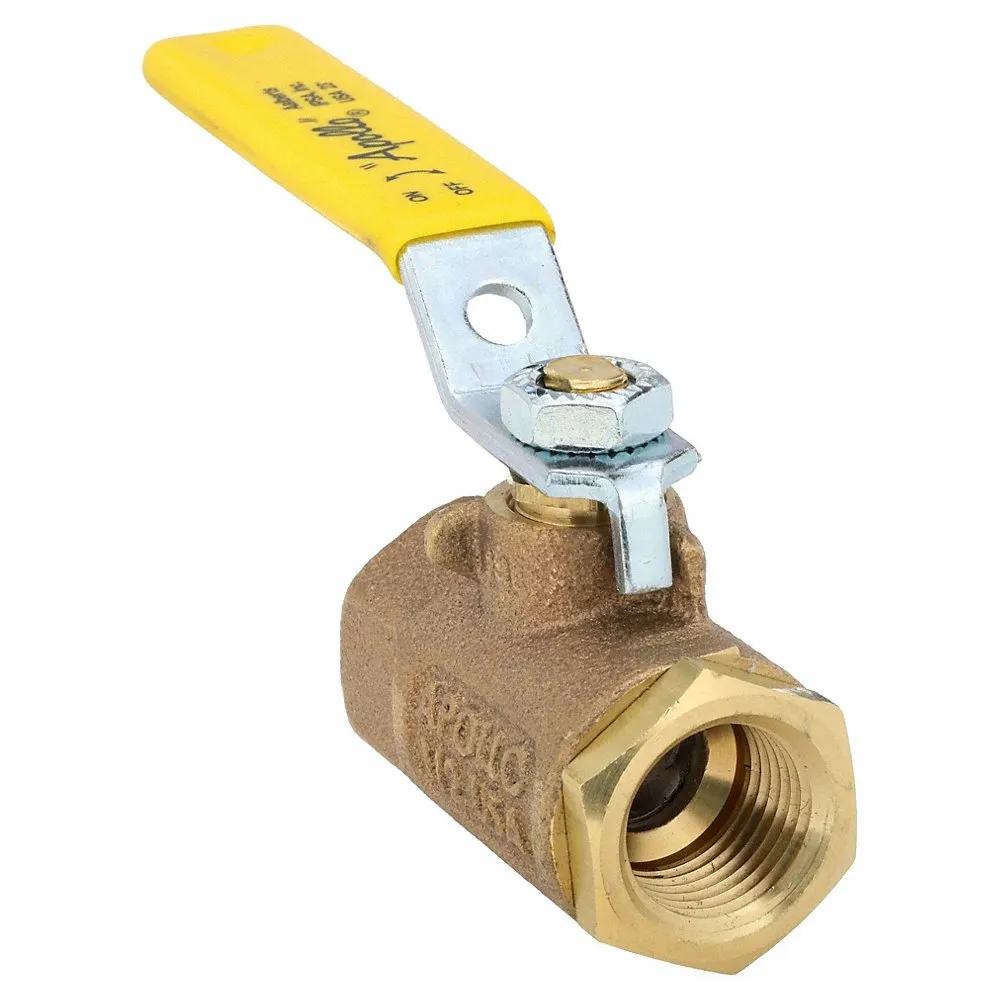

APOLLO VALVES 7010301 Bronze Ball Valve Inline Fnpt 1/2 In
Item: AE9LHVModel: 7010301Cross Ref: 6KK49
7 In Stock
Ships within 2 days via
10.00% off
€37.16 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Ball Finish | Bronze , Chrome Plated |
| Ball Port Style | Standard Port |
| Ball Valve Product Group | Manual |
| Body Material | Bronze |
| Body Style | Inline |
| Bore Type | Reduced Bore |
| Cleaned And Bagged | Not Cleaned And Bagged |
| Coefficient Of Volume (cv) | 0.01 |
| Color | Yellow, Bronze |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 1/2" |
| Connection Size - Side 2 | 1/2" |
| Connection Type | FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| D-1 | 1.21 |
| D1 | 0.84 |
| D2 | 0.84 |
| Dimensions | 7.45" x 2.76" x 4.43" |
| E | 0.68 |
| Finish | None |
| For Media | Steam |
| Grease-free | No |
| H2 | 13 |
| Handgrip Length | 0.55" |
| Handle | Lever |
| Handle Color | Yellow |
| Handle Finish | Zinc Plated |
| Handle Height | 1 3/4" |
| Handle Length | 3.87" |
| Handle Material | PVC, Zinc Plated Steel |
| Handle Type | Lever |
| Handle/hand Wheel Height | 0.65" |
| Housing Construction | 2-Part |
| Length Of Connection 1 | 1.08" |
| Length Of Connection 2 | 1.09" |
| M1 | 0.55 |
| M2 | 3.85 |
| Manufacturer Warranty | 5 yrs. |
| Max. Medium Temp. | 500°F |
| Max. Operating Pressure | 600 psi |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 600 psi |
| Max. Steam Pressure | 150 psi |
| Media Temperature Range | -20°F to +500°F |
| Medically Clean | No |
| Medium Temp. (continuous) | -20.002°F to +500°F |
| Min. Medium Temp. | -20°F |
| Nominal Valve Size | 1/2" |
| Number Of Pieces | 2 |
| Outer Pipe Dia. Connection 1 | 0.84" |
| Outer Pipe Dia. Connection 2 | 0.84" |
| Overall Length | 2.25" |
| Port | Standard |
| Product Datasheet | apollo-valves-7010310.pdf |
| Seal Material | PTFE |
| Seat Material | PTFE |
| Series | 70 Series Ball Valves |
| Shape | Straight |
| Size | 1/2" |
| Spindle Material | Brass |
| Stem Grade | Grade B16 |
| Stem Material | Brass |
| Stem Type | Blowout Resistant |
| Surface Protection | None |
| Temp. Range | -20°F to +450°F |
| U | 0.75 |
| V | 1.06 |
| Vacuum Service Rating | 29 in. hg |
| Valve Body Color | Bronze |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Valve Series | 70 Series |
| With Coupling Connection 1 | No |
| With Coupling Connection 2 | No |
| With Drain Possibility (connection) | No |
| With Drain Valve | No |
| With Filter | No |
| With Insulation Shell | No |
| With Non-return Valve | No |
| With Thermometer | No |
| Working Length Connection 1 | 0.55" |
| Working Length Connection 2 | 0.56" |
| Y | 0.65 |
| Z1 | 0.55 |
| Z2 | 0.56 |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 11.25 |
| Ship length (cm) | 18.92 |
| Ship width (cm) | 7.01 |
| HS code | 8481801085 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Connection Type | Ball Material | Max. Pressure | Seal Material | Seat Material | Max. Steam Pressure | Handle Material | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
7010310 | FNPT | Brass | - | PTFE | RPTFE | 150 psi | Stainless Steel | 4.99" | €49.21 | |
 |
7010410 | FNPT | - | - | PTFE | PTFE | 150 psi | Stainless Steel | 3" | €80.66 | |
|
7010510 | FNPT | - | - | PTFE | PTFE | 150 psi | Stainless Steel | 3.37" | €92.67 | |
 |
7010610 | FNPT | - | - | PTFE | PTFE | 150 psi | Stainless Steel | 4" | €166.58 | |
 |
7010810 | FNPT | - | - | PTFE | PTFE | 150 psi | Stainless Steel | 4.68" | €254.36 | |
 |
7010910A | FNPT | - | - | PTFE | PTFE | 150 psi | Stainless Steel | 4.16" | €1,049.65 | |
 |
7010010 | FNPT | - | - | PTFE | PTFE | 150 psi | Stainless Steel | 6.75" | €1,118.70 |
