APOLLO VALVES 77VLF10701 Lead Free Brass 2 Pcs Full Port Ball Valve with Standard Configuration 1-1/2 Inch, 2 x Press, 20.79 x 6.37 x 10.54 Inch
Item: AC6WLZModel: 77VLF10701Cross Ref: 36N585
7 In Stock
Ships within 2 days via
10.00% off
€200.38 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Ball Material | Brass |
| Ball Port Style | Full Port |
| Ball Valve Product Group | Manual |
| Body Material | Brass |
| Body Style | Inline |
| Bore Type | Full Bore |
| Cleaned And Bagged | Not Cleaned And Bagged |
| Coefficient Of Volume (cv) | 0.01 |
| Color | Yellow, Bronze |
| Connection Size | 1 1/2" x 1 1/2" |
| Connection Size - Side 1 | 1 1/2" |
| Connection Size - Side 2 | 1 1/2" |
| Connection Type | Press |
| Connection Type - Side 1 | Press |
| Connection Type - Side 2 | Press |
| Contour Code | V |
| D-1 | 2.11 |
| D1 | 1.63 |
| D2 | 1.63 |
| Dimensions | 20.79" x 6.37" x 10.54" |
| E | 1 |
| Finish | None |
| For Media | Water |
| Grease-free | No |
| Handgrip Length | 0.98" |
| Handle | Lever |
| Handle Color | Yellow |
| Handle Height | 2.91" |
| Handle Length | 5.4" |
| Handle Material | Plated Steel, PVC |
| Handle Type | Lever |
| Handle/hand Wheel Height | 0.7" |
| Housing Construction | 2-Part |
| Lead Free | Yes |
| Length Of Connection 1 | 2.86" |
| Length Of Connection 2 | 2.62" |
| M1 | 0.98 |
| M2 | 5.4 |
| Manufacturer Warranty | 5 yrs. |
| Max. Operating Pressure | 300 psi |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 300 psi |
| Max. Steam Pressure | 15 psi |
| Media Temp. Range | 0°F to 250°F |
| Medically Clean | No |
| Nominal Valve Size | 1 1/2" |
| Outer Pipe Dia. Connection 1 | 1.63" |
| Outer Pipe Dia. Connection 2 | 1.63" |
| Overall Length | 5.45" |
| Product Datasheet | apollo-valves-77vlf10701.pdf |
| Seal Material | EPDM |
| Seat Material | PTFE |
| Series | 77V Series Ball Valves |
| Shape | Straight |
| Size | 1 1/2" |
| Spindle Material | Brass |
| Stem Material | Brass |
| Stem Type | Blowout Resistant |
| Surface Protection | None |
| Temp. Range | 0°F to 250°F |
| U | 1.18 |
| V | 2.19 |
| Vacuum Service Rating | 29 in. hg |
| Valve Body Color | Bronze |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Valve Series | 77V Series |
| With Filter | No |
| With Thermometer | No |
| Working Length Connection 1 | 1.42" |
| Working Length Connection 2 | 1.18" |
| Y | 0.7 |
| Z1 | 1.42 |
| Z2 | 1.18 |
Shipping Info:
| Ship weight (kg) | 1.55 |
| Ship height (cm) | 26.77 |
| Ship length (cm) | 52.81 |
| Ship width (cm) | 16.18 |
| HS code | 8481803070 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Connection Type | Max. Steam Pressure | Ball Material | Stem Material | Handle Material | Overall Length | Temp. Range | Connection Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
77VLF10301 | Press | 15 psi | Brass | Brass | Plated Steel, PVC | 2.89" | 0°F to 250°F | 1/2" x 1/2" | €52.64 | |
 |
77VLF10401 | Press | 15 psi | Brass | Brass | Plated Steel, PVC | 3.63" | 0°F to 250°F | 3/4" x 3/4" | €69.92 | |
|
77VLF10501 | Press | 15 psi | Brass | Brass | Plated Steel, PVC | 3.88" | 0°F to 250°F | 1" x 1" | €91.48 | |
 |
77VLF10601 | Press | 15 psi | Brass | Brass | Plated Steel, PVC | 4.22" | 0°F to 250°F | 1 1/4" x 1 1/4" | €179.49 | |
 |
77VLF10801 | Press | 15 psi | Brass | Brass | Plated Steel, PVC | 6.57" | 0°F to 250°F | 2" x 2" | €358.96 | |
 |
77VLF14001 | Press x Press | 15 psi WSP | Stainless Steel | Stainless Steel | PVC, Zinc Plated Steel | 9" | 0°F to +250°F | 3" x 3" | €1,226.07 | |
 |

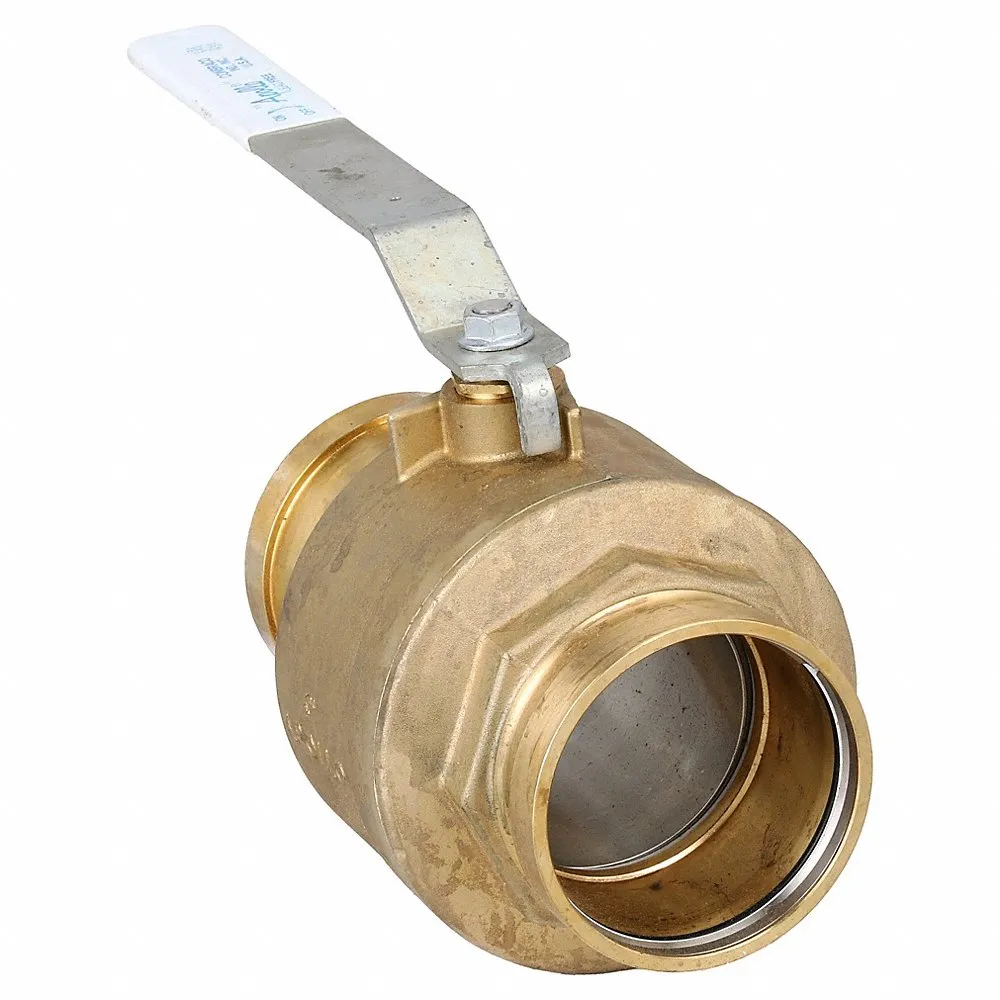

77VLF14A01 | Press | 15 psi | Stainless Steel | Stainless Steel | PVC, Zinc Plated Steel | 10" | 0°F to 250°F | 4" x 4" | €1,572.50 |
