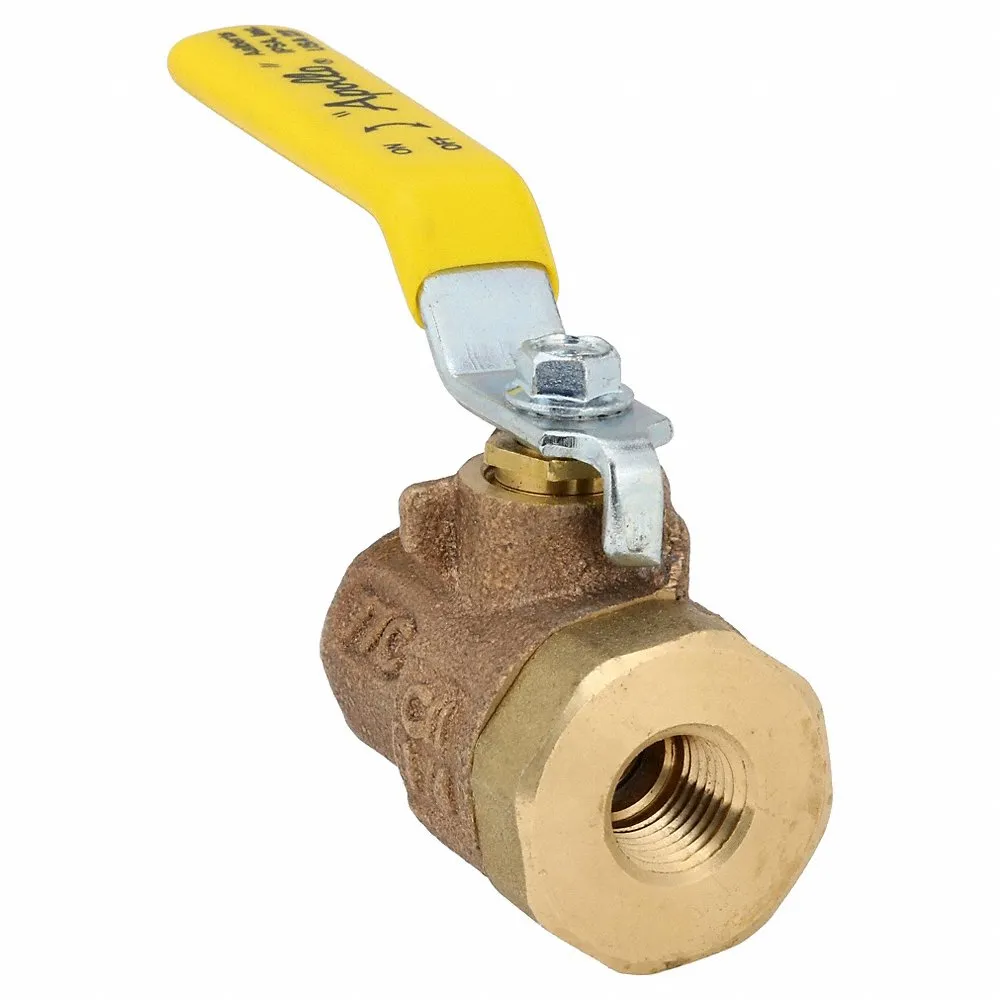

APOLLO VALVES 77C10101A Ball Valve, Size 1/4 Inch NPT, Bronze, Full Port
Item: CA4PJPModel: 77C10101ACross Ref: 48XH87
7 In Stock
Ships within 2 days via
10.00% off
€30.11 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Ball Finish | Brass , Chrome Plated |
| Ball Port Style | Full Port |
| Body Material | Bronze |
| Bore Type | Full Bore |
| Cleaned And Bagged | Not Cleaned And Bagged |
| Coefficient Of Volume | 5 |
| Color | Yellow |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 1/4" |
| Connection Size - Side 2 | 1/4" |
| Connection Type | FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| D1 | 0.54 |
| D2 | 0.54 |
| Dimensions | 5.31" x 1.61" x 2.72" |
| Finish | None |
| For Media | Steam |
| Grease-free | No |
| Handle | Lever |
| Handle Color | Yellow |
| Handle Height | 1.65" |
| Handle Length | 2.82" |
| Handle Material | PVC, Zinc Plated Steel |
| Handle Type | Lever |
| Housing Construction | 2-Part |
| Manufacturer Warranty | 5 yrs. |
| Max. Pressure | 600 psi |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 600 psi |
| Max. Pressure (steam) | 150 psi |
| Media Temperature Range | -20°F to +450°F |
| Medically Clean | No |
| Nominal Valve Size | 1/4" |
| Outer Pipe Diameter Connection 1 | 13.72 mm |
| Outer Pipe Diameter Connection 2 | 13.72 mm |
| Overall Length | 1.8" |
| Pipe Size | 1/4" |
| Product Datasheet | apollo-valves-77c10101a.pdf |
| Seal Material | PTFE |
| Seat Material | PTFE |
| Series | 77C Series |
| Shape | Straight |
| Size | 1/4" |
| Spindle Material | Brass |
| Stem Material | PTFE |
| Stem Type | Blowout Resistant |
| Surface Protection | None |
| Type | Standard |
| Vacuum Service Rating | 29 in. hg |
| Valve Body Color | Bronze |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Valve Series | 77C |
| Vented Ball Valve | Vented |
| With Filter | No |
| With Thermometer | No |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 6.91 |
| Ship length (cm) | 13.49 |
| Ship width (cm) | 4.09 |
| Country of Origin | US |
Product Details:
- Series: Bronze Ball Valve, Full Port, Contractor Grade
Documentation:
Product Variants
| Model | Connection Type | Ball Material | Handle | Overall Length | Coefficient Of Volume | Color | Pipe Size | Ball Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 77C24504A | Solder | Stainless steel | - | - | - | Yellow, Bronze | - | - | €118.27 | |
| 77C14550A | FNPT | Stainless steel | - | - | - | Yellow, Bronze | - | - | €132.56 | |
| 77C14594A | FNPT | Stainless steel | - | - | - | Yellow, Bronze | - | - | €124.81 | |
| 77C14527A | FNPT | Stainless steel | - | - | - | Yellow, Bronze | - | - | €107.59 | |
| 77C14601A | FNPT | Stainless steel | - | - | - | Yellow, Bronze | - | - | €181.11 | |
| 77C14611A | FNPT | Stainless steel | - | - | - | Yellow, Bronze | - | - | €259.77 | |
| 77C14604A | FNPT | Stainless steel | - | - | - | Yellow, Bronze | - | - | €249.36 |
