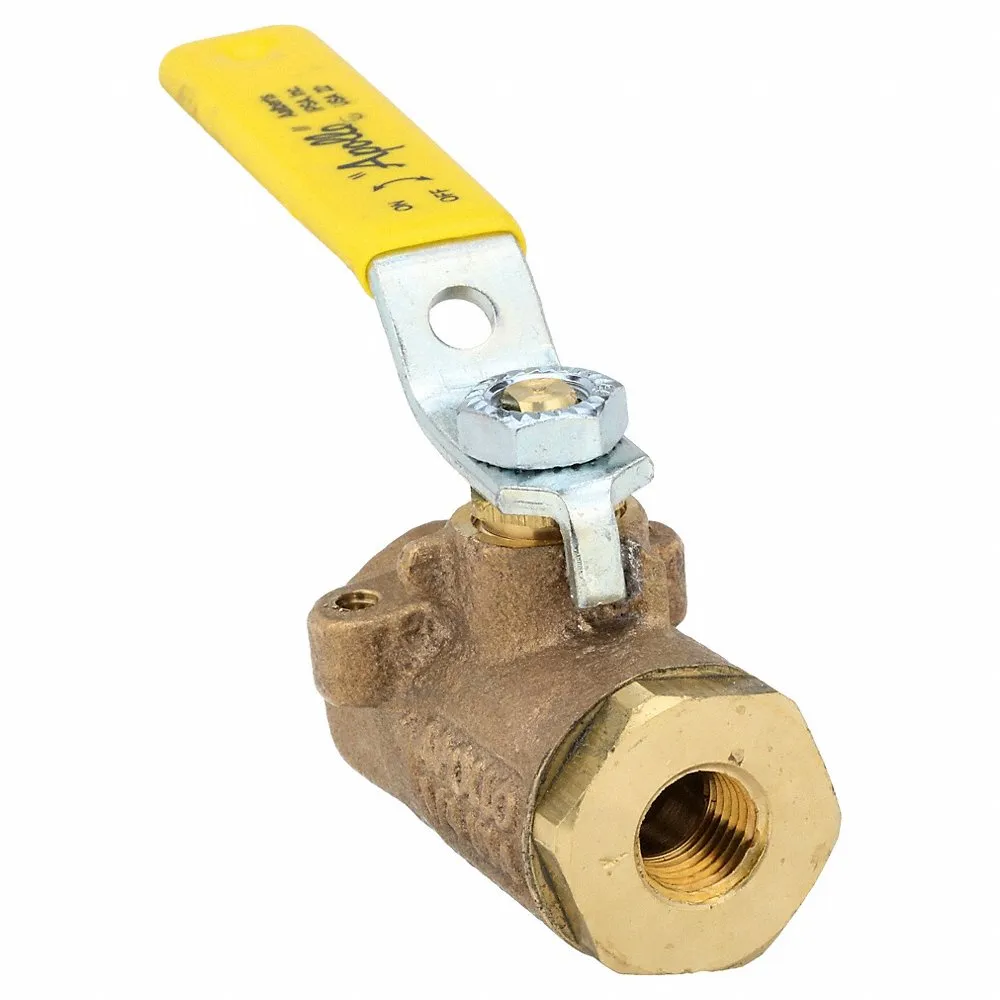

APOLLO VALVES 7710101 Ball Valve, 1/4 in Pipe, Full, 600 psi CWP, Up to 500 Deg. F, Lever Handle, Female NPT
Item: AB9NPLModel: 7710101Cross Ref: 2EEJ9
7 In Stock
Ships within 2 days via
10.00% off
€51.55 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Ball Finish | Bronze , Chrome Plated |
| Ball Port Style | Full Port |
| Ball Valve Product Group | Manual |
| Body Material | Bronze |
| Body Style | Inline |
| Bore Type | Full Bore |
| Cleaned And Bagged | Not Cleaned And Bagged |
| Coefficient Of Volume (cv) | 0.01 |
| Color | Yellow, Bronze |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 1/4" |
| Connection Size - Side 2 | 1/4" |
| Connection Type | FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| D1 | 0.54 |
| D2 | 0.54 |
| Dimensions | 5.31" x 1.61" x 2.72" |
| Finish | None |
| For Media | Steam |
| Grease-free | No |
| Handle | Lever |
| Handle Color | Yellow |
| Handle Finish | Zinc Plated |
| Handle Height | 1.77" |
| Handle Length | 3.87" |
| Handle Material | PVC, Zinc Plated Steel |
| Handle Type | Lever |
| Housing Construction | 2-Part |
| Included Mounting | Actuator Mounting Pad |
| Length Of Connection 1 | 3.87" |
| Manufacturer Warranty | 5 yrs. |
| Max. Medium Temp. | 500°F |
| Max. Operating Pressure | 600 psi |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 600 psi |
| Max. Steam Pressure | 150 psi |
| Media Temperature Range | -20°F to +500°F |
| Medically Clean | No |
| Min. Medium Temp. | -20°F |
| Nominal Valve Size | 1/4" |
| Outer Pipe Dia. Connection 1 | 0.54" |
| Outer Pipe Dia. Connection 2 | 0.54" |
| Overall Length | 2.18" |
| Peak Medium Temp. | 500°F |
| Port Type | Full |
| Product Datasheet | apollo-valves-7710101.pdf |
| Seal Material | PTFE |
| Seat Material | PTFE |
| Series | 77 Series Ball Valves |
| Shape | Straight |
| Size | 1/4" |
| Spindle Material | Brass |
| Stem Material | Brass |
| Stem Type | Blowout Resistant |
| Surface Protection | None |
| Temp. Range | Up To 500°F |
| Vacuum Service Rating | 29 in. hg |
| Valve Body Color | Bronze |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Valve Series | 77 Series |
| With Filter | No |
| With Non-return Valve | No |
| With Thermometer | No |
Shipping Info:
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 6.91 |
| Ship length (cm) | 13.49 |
| Ship width (cm) | 4.09 |
| HS code | 8481805090 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Connection Type | Max. Steam Pressure | Handle Material | Overall Length | Temp. Range | Ball Finish | Finish | Port Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
7010710 | FNPT | 150 psi | Stainless Steel | 4.37" | 0°F to 450°F | Chrome Plated | None | Standard | €203.36 | |
|

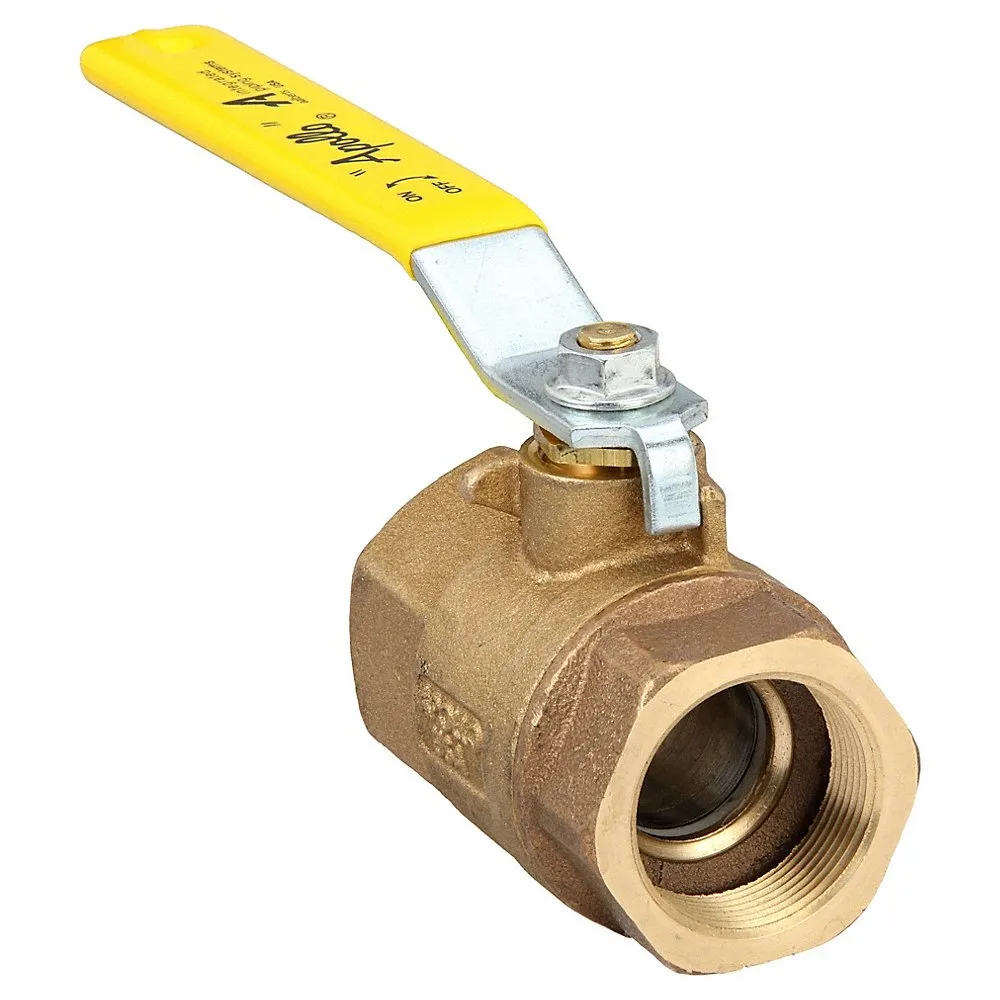

7010701 | FNPT x FNPT | 150 psi WSP | PVC, Zinc Plated Steel | 4.37" | -20°F to +450°F | Chrome Plated | Chrome Plated | - | €180.55 |
