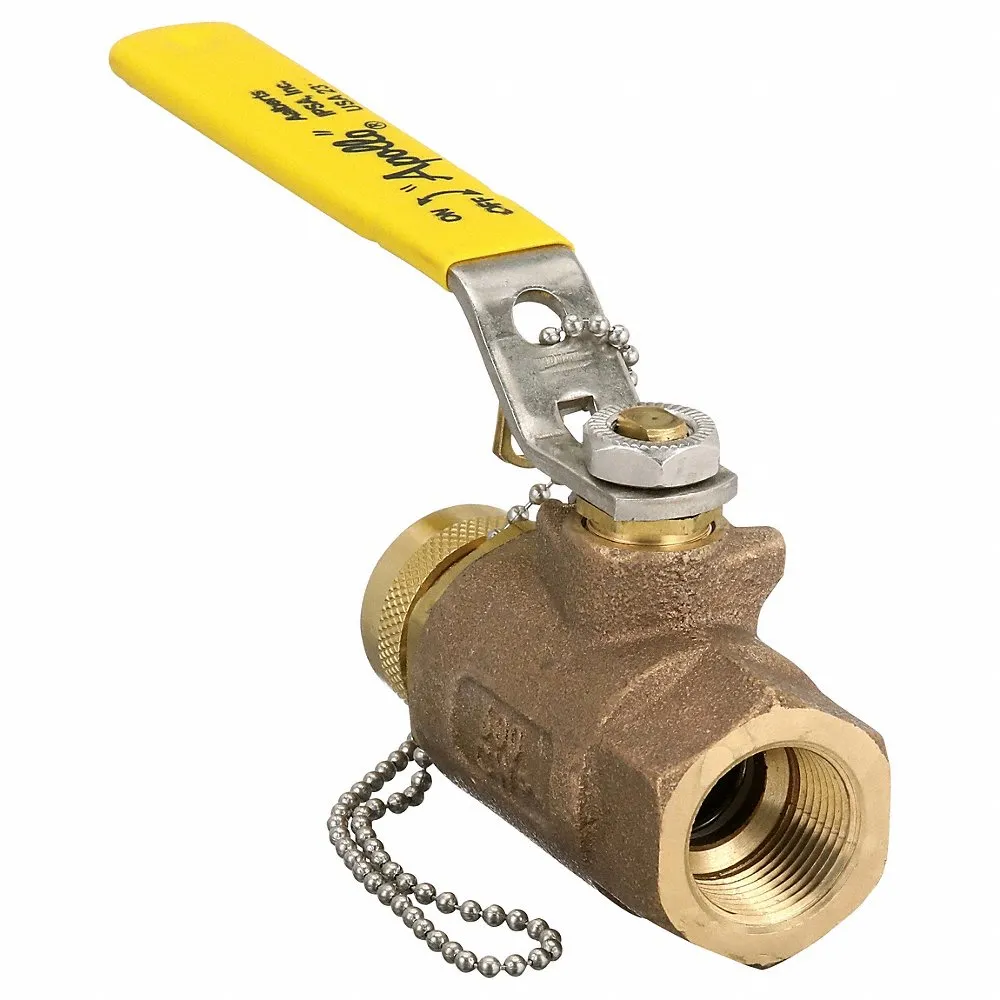

APOLLO VALVES 70104HC Ball Valve, 3/4 in Pipe, Std, 450 psi CWP, -20 to 450 Deg. F, Reverse Lever Handle, Female NPT
Item: AE4UDEModel: 70104HCCross Ref: 5MU27
7 In Stock
Ships within 2 days via
10.00% off
€95.24 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Ball Material | Bronze |
| Ball Port Style | Standard Port |
| Ball Valve Product Group | Manual |
| Body Material | Bronze |
| Body Style | Inline |
| Bore Type | Reduced Bore |
| Cleaned And Bagged | Not Cleaned And Bagged |
| Coefficient Of Volume (cv) | 0.01 |
| Color | Yellow, Bronze |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 3/4" |
| Connection Size - Side 2 | 3/4" |
| Connection Type | FNPT x Hose Connector |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | GHT |
| D1 | 1.05 |
| D2 | 1.05 |
| Dimensions | 7.45" x 2.76" x 4.43" |
| Finish | None |
| Grease-free | No |
| Handle | Lever |
| Handle Color | Yellow |
| Handle Material | Zinc Plated Steel |
| Handle Type | Reverse Lever |
| Housing Construction | 2-Part |
| Manufacturer Warranty | 5 yrs. |
| Max. Medium Temp. | 210°F |
| Max. Operating Pressure | 600 psi |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 600 psi |
| Max. Steam Pressure | 250 psi |
| Media Temp. Range | -20°F to +210°F |
| Medically Clean | No |
| Medium Temp. (continuous) | -20.002°F to +210.002°F |
| Min. Medium Temp. | -20°F |
| Nominal Valve Size | 3/4" |
| Outer Pipe Dia. Connection 1 | 1.05" |
| Outer Pipe Dia. Connection 2 | 1.05" |
| Overall Length | 3.5" |
| Port Type | Standard |
| Product Datasheet | apollo-valves-70104hc.pdf |
| Seal Material | PTFE |
| Seat Material | PTFE |
| Series | 70 Series Ball Valves |
| Shape | Straight |
| Size | 3/4" |
| Stem Grade | Grade B16 |
| Stem Material | PTFE |
| Stem Type | Blowout Resistant |
| Surface Protection | None |
| Temp. Range | -20°F to +450°F |
| Vacuum Service Rating | 29 in. hg |
| Valve Body Color | Bronze |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Valve Series | 70 Series |
| With Filter | No |
| With Thermometer | No |
Shipping Info:
| Ship weight (kg) | 0.63 |
| Ship height (cm) | 11.25 |
| Ship length (cm) | 18.92 |
| Ship width (cm) | 7.01 |
| HS code | 8481801085 |
| Country of Origin | US |
Product Details:
- Apollo 70-104-HC is a 2-piece bronze ball valve rated at 600 psig CWP and 150 psig SWP for applications in water lines, processing plants & automotive shops.
- It features a hose cap and chain assembly to protect the threaded surfaces and a blow-out-proof design for preventing the accidental rise of inlet pressures.
- This MSSP-110-compliant ball valve further comes equipped with a stainless-steel reverse-lever and nut assembly for manual ON/OFF control.
Documentation:
Product Variants
| Product | Model | Connection Type | Ball Material | Max. Pressure | Seal Material | Seat Material | Max. Steam Pressure | Handle Material | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
7010310 | FNPT | Brass | - | PTFE | RPTFE | 150 psi | Stainless Steel | 4.99" | €49.21 | |
 |
7010410 | FNPT | - | - | PTFE | PTFE | 150 psi | Stainless Steel | 3" | €80.66 | |
|
7010510 | FNPT | - | - | PTFE | PTFE | 150 psi | Stainless Steel | 3.37" | €92.67 | |
 |
7010610 | FNPT | - | - | PTFE | PTFE | 150 psi | Stainless Steel | 4" | €166.58 | |
 |
7010810 | FNPT | - | - | PTFE | PTFE | 150 psi | Stainless Steel | 4.68" | €254.36 | |
 |
7010910A | FNPT | - | - | PTFE | PTFE | 150 psi | Stainless Steel | 4.16" | €1,049.65 | |
 |
7010010 | FNPT | - | - | PTFE | PTFE | 150 psi | Stainless Steel | 6.75" | €1,118.70 |
