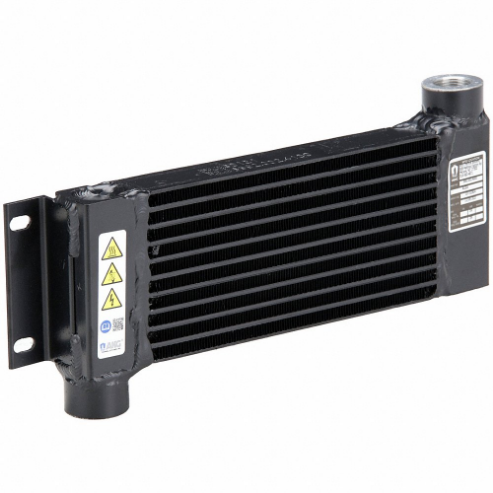

AKG C-3560BG Air Cooled Aftercooler Max Hp 15 60 Cfm
Item: AD9RMGModel: C-3560BGCross Ref: 4UJG4
7 In Stock
Ships within 2 days via
5.00% off
€495.55 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Cooled Aftercooler |
| Air Inlet Size | 1" |
| Air Inlet Type | NPT |
| Air Outlet Connection Type | NPT |
| Air Outlet Size | 1" |
| Approach Temp. | 25°F |
| Construction | Aluminum |
| Cooling Method | Air |
| Features | Mount Directly To Compressor'S Belt Guard Utilizing Compressor Pulley'S Air Flow For Cooling |
| Fin Material | Aluminum |
| For Use With | Compressor Beltguard |
| Height | 6.77" |
| Included | Universal Mounting Bracket |
| Max. Airflow | 60 CFM |
| Max. Compressor Output Power | 15 hp |
| Max. Flow Cfm @ 100 Psi | 60 |
| Max. Flow Cfm @ 100 Psi | 60 CFM |
| Max. Operating Pressure | 250 psi |
| Max. Operating Temp. | 250°F |
| Max. Pressure | 250 psi |
| Max. Temp. | 400°F |
| Min. Operating Pressure | 60 psi |
| Min. Pressure | 60 psi |
| Overall Depth | 1 3/4" |
| Overall Height | 6 3/4" |
| Overall Width | 15 15/16" |
| Tube Material | Aluminum |
| Width | 15.94" |
Shipping Info:
| Ship weight (kg) | 3.51 |
| Ship height (cm) | 17.15 |
| Ship length (cm) | 4.45 |
| Ship width (cm) | 40.48 |
| HS code | 8419505000 |
| Country of Origin | US |
Product Details:
- Fin Material (Aluminium)
- Max. Compressor HP (15)
- NPT Inlet/Outlet Air (In.) (1)
Product Variants
| Product | Model | Max. Airflow | Air Inlet Size | Air Outlet Size | Overall Height | Overall Width | Overall Depth | Max. Flow Cfm @ 100 Psi | Max. Compressor Output Power | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

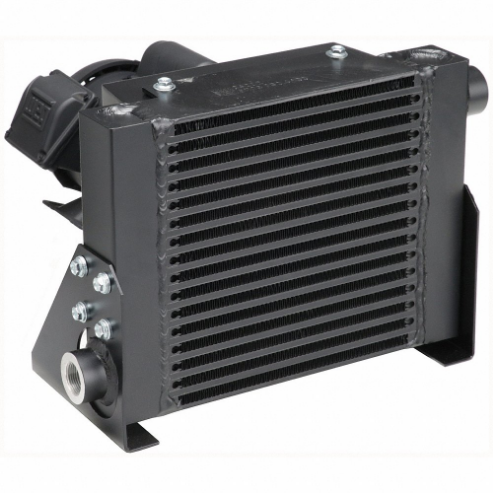

CC100-1 | 113 CFM | 1" | 1" | 12 5/8" | 15 15/16" | 14 11/16" | 113 CFM | 20 hp | €1,977.62 | |
 |
CC200-1 | 245 CFM | 1 1/2" | 1 1/2" | 16 1/4" | 19 7/8" | 15 9/16" | 245 CFM | 40 hp | €2,306.09 | |
 |
CC450-1 | 539 CFM | 2" | 2" | 21" | 26 3/8" | 17 3/4" | 539 CFM | 75 hp | €3,314.58 | |
 |
CC600-1 | 785 CFM | 2" | 2" | 23 3/16" | 30 1/4" | 18 11/16" | 785 CFM | 100 hp | €4,943.97 | |
 |
CC1600-3 | 2300 CFM | 3" | 3" | 35 7/8" | 40 15/16" | 24 3/4" | 2300 CFM | 300 hp | €13,181.40 | |
 |
CC2500-3 | 4/316 CFM | 4" | 4" | 44 1/4" | 48 13/16" | 30 1/4" | 4316 CFM | 600 hp | €15,994.39 | |
 |

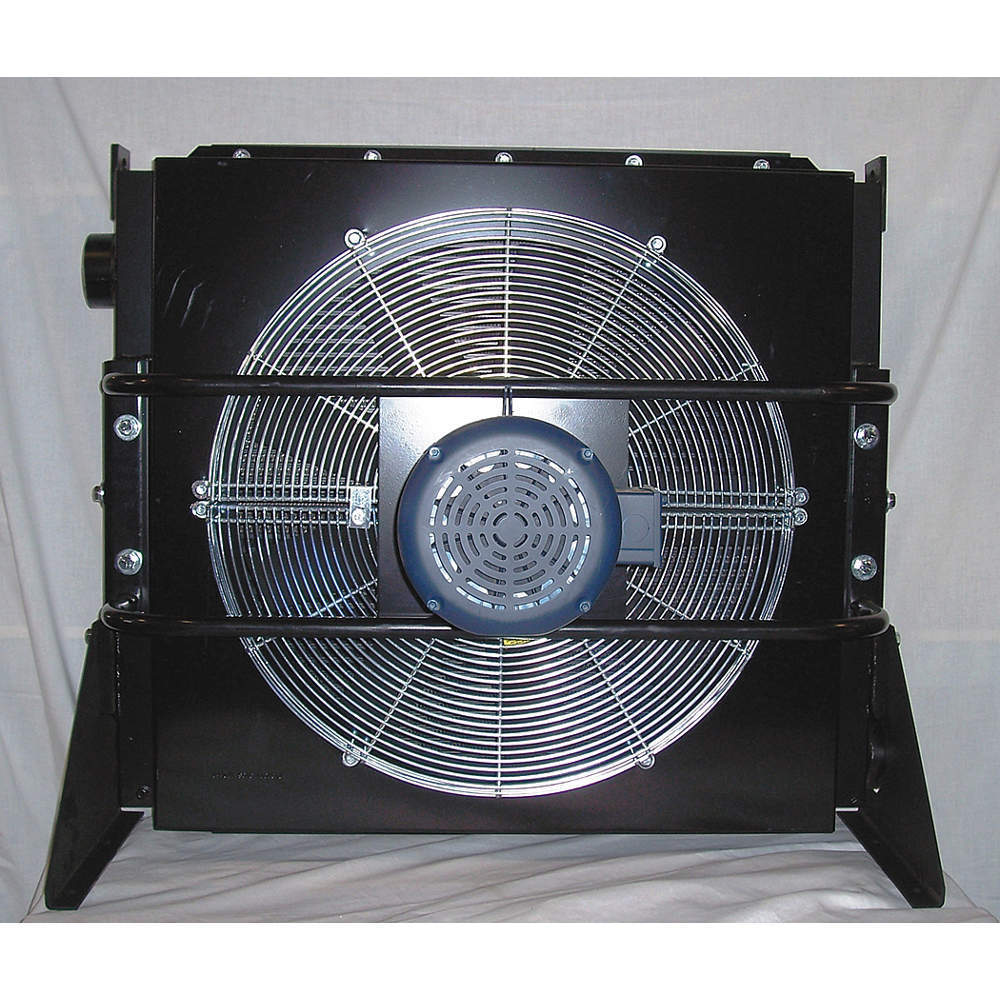

CC3500-3 | 4800 CFM | 4" | 4" | 57 13/16" | 52 3/4" | 33 13/16" | 4800 CFM | 850 hp | €19,816.69 |
