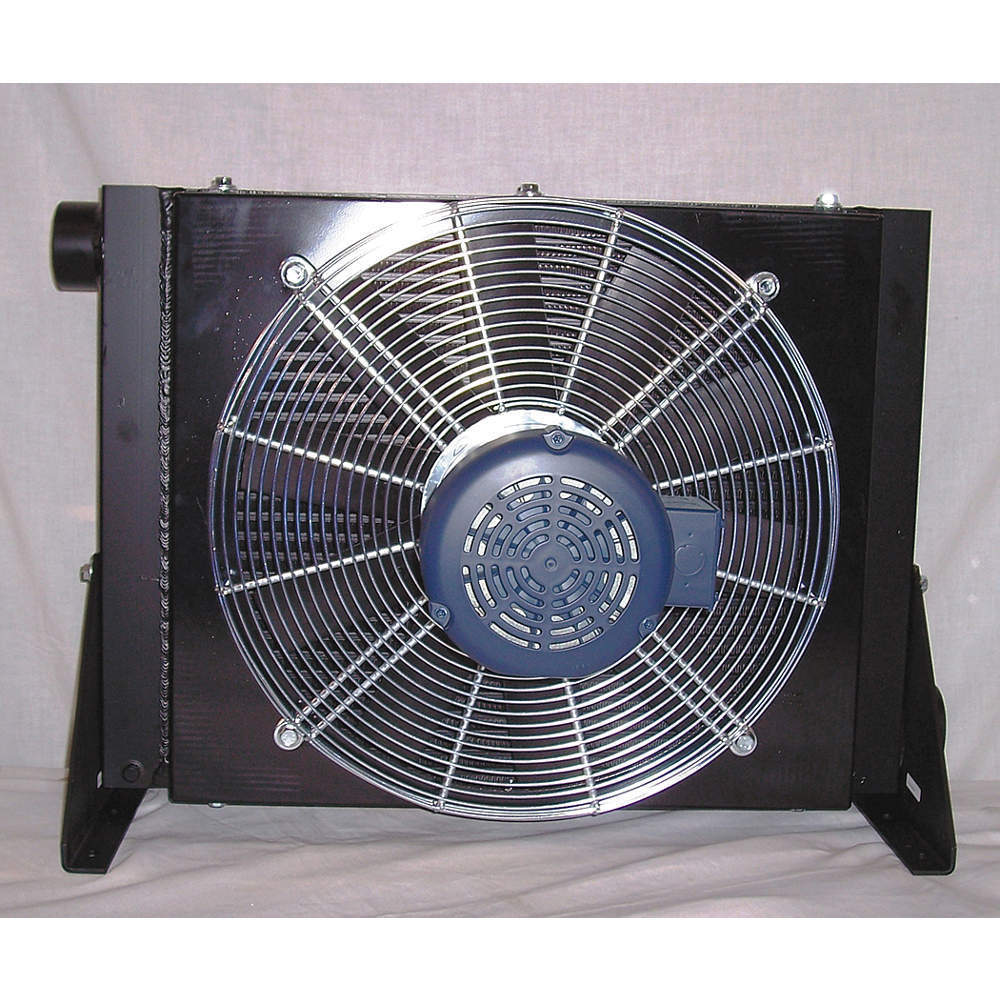

AKG CC450-1 Air Cooled Aftercooler Max Hp 75 539 Cfm
Get it by Tuesday, Dec 23
10.00% off
€2,983.12 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Air Cooled Aftercooler |
| Air Inlet Size | 2" |
| Air Inlet Type | NPT |
| Air Outlet Connection Type | NPT |
| Air Outlet Size | 2" |
| Construction | Aluminum |
| Cooling Method | Air |
| Current Rating | 4A |
| Depth | 17 3/4" |
| Features | Reduced Air Slide Fouling |
| Fin Material | Aluminum |
| For Use With | Rotary Air Compressor |
| Frequency | 60 Hz |
| Height | 21" |
| Includes | 2" Fnpt Ports, Mounting Legs |
| Junction Box Design | Single Point Electrical |
| Max. Flow Cfm @ 100 Psi | 539 CFM |
| Max. Flow Cfm @ 100 Psi | 539 |
| Max. Pressure | 250 psi |
| Max. Temp. | 350°F |
| Maximum Air Flow | 539 CFM |
| Maximum Compressor Output Power | 75 hp |
| Maximum Fan Horsepower | 1/2 hp |
| Maximum Operating Pressure | 250 psi |
| Min. Pressure | 60 psi |
| Minimum Operating Pressure | 60 psi |
| Overall Depth | 17 3/4" |
| Overall Height | 21" |
| Overall Width | 26 3/8" |
| Phase | Single |
| Shell Material | Steel |
| Tube Material | Aluminum |
| Voltage | 115/230V AC |
Shipping Info:
| Ship weight (kg) | 67.05 |
| Ship height (cm) | 53.34 |
| Ship length (cm) | 45.09 |
| Ship width (cm) | 66.99 |
| HS code | 8419505000 |
| Country of Origin | US |
Product Details:
- Fan HP (1/2)
- Fin Material (Aluminium)
- Junction Box (Single Point Electrical)
- Max. Compressor HP (75)
- NPT Inlet/Outlet Air (In.) (2)
Product Variants
| Product | Model | Maximum Compressor Output Power | Air Inlet Size | Height | Phase | Voltage | Depth | Maximum Fan Horsepower | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
CC100-1 | 20 hp | 1" | 12 16/25" | Single | 115/230V AC | 14 18/25" | - | €1,977.62 | |
 |
CC200-1 | 40 hp | 1 1/2" | 16.3" | Single | 115/230V AC | 15.59" | 1/2 hp | €2,306.09 | |
 |
CC600-1 | 100 hp | 2" | 23.19" | Single | 115/230V AC | 18.74" | 1 hp | €4,943.97 | |
 |
CC1600-3 | 300 hp | 3" | 35.9" | Three | 230/460V AC | 24 19/25" | 5 hp | €13,181.40 | |
 |
CC2500-3 | 600 hp | 4" | 44 1/4" | Three | 230/460V AC | 30 7/25" | - | €15,994.39 | |
 |
CC3500-3 | 850 hp | 4" | 57.87" | Three | 230/460V AC | 33.82" | 10 hp | €19,816.69 | |
 |
C-1835BG | 10 hp | 1" | - | - | - | - | - | €467.04 |
