AEROQUIP 190235-5S Hydraulic Hose Fitting, 5 For Hose Dash Size, 1/2 Inch x 5/16 Inch Size
Item: AD8GWTModel: 190235-5SCross Ref: 4KFJ5
7 In Stock
Ships within 2 days via
10.00% off
€56.48 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hydraulic Hose Fitting |
| Angle | 90° |
| Compatible Hose Id | 0.31" |
| Compatible Hoses | 1503, 2580, 2651, FC234, FC300, FC321, FC350, FC355, FC802 |
| Construction Style | Reusable |
| Drop Dimension | 1.69 |
| End Gender 1 | Male |
| End Size 1 | 1/2" |
| End Type 1 | Inverted |
| End Type 2 | Line, Hose, Tube |
| Finish/coating | Trivalent Chromate Zinc |
| Finish/plating | Dura Kote |
| Fitting Shape | 90° Elbow |
| For Hose Dash Size | -5 |
| For Hose I.d. | 5/16" |
| For Use With Hose Series | 1503, 2580, 2651, FC234, FC300, FC321, FC350, FC355, FC802 |
| Height | 2.03" |
| Hex Size 1 | 1/2" |
| Hex Size 2 | 0.69" |
| Hose Cut-off Factor | 1 3/4" |
| Hose Dash Size | -5 |
| Hose Fitting A Connection Type | Inverted Flare |
| Hose Fitting A Gender | Male |
| Hose Fitting A Size | 1/2" |
| Hose Fitting B Connection Type | Hose |
| Hose Fitting B Gender | Genderless |
| Hose Fitting B Size | 5/16" |
| Inside Dia. | 0.18" |
| Item Type | Fitting Assembly |
| Length | 2.78" |
| Male Sae Size (in.) | 1/2-20 |
| Material | Carbon Steel |
| Material Grade | Grade 12L14, Grade 12L15 |
| Max. Working Pressure @ 70 F | 3000 psi |
| Outside Diameter | 3/4" |
| Overall Length | 2.53 mm |
| Reusable | Yes |
| Thread Angle (deg.) | 45 |
| Thread Sealant | No |
| Thread Size | 1/2"-20 |
| Thread Size 1 | 1/2"-20 |
| Thread Type | Inverted Flare |
| Warranty | Hydraulics Warranty |
| Width | 0.69" |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 5.16 |
| Ship length (cm) | 7.06 |
| Ship width (cm) | 1.75 |
| HS code | 7307929000 |
| Country of Origin | US |
Product Variants
| Product | Model | For Hose Dash Size | Fitting Shape | For Hose I.d. | Angle | Inside Dia. | Height | Hose Fitting B Size | Hose Fitting A Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

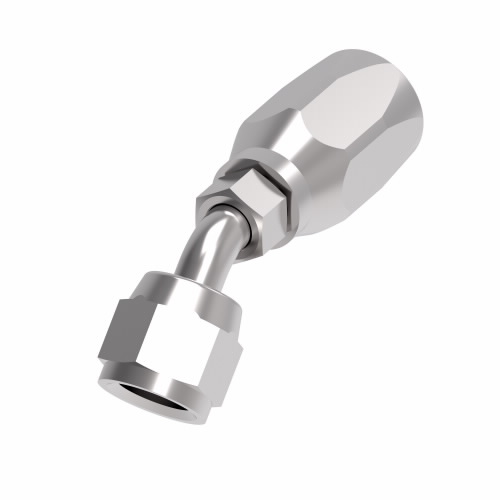

190297-8S | -8 | 45° Elbow | 1/2" | 45 Degree | 9/25" | 1.94" | 1/2" | 3/4" | €81.08 | |
|
190297-10S | -10 | 45° Elbow | 5/8" | 45 Degree | 0.46" | 2 6/25" | 5/8" | 7/8" | €113.59 | |
 |

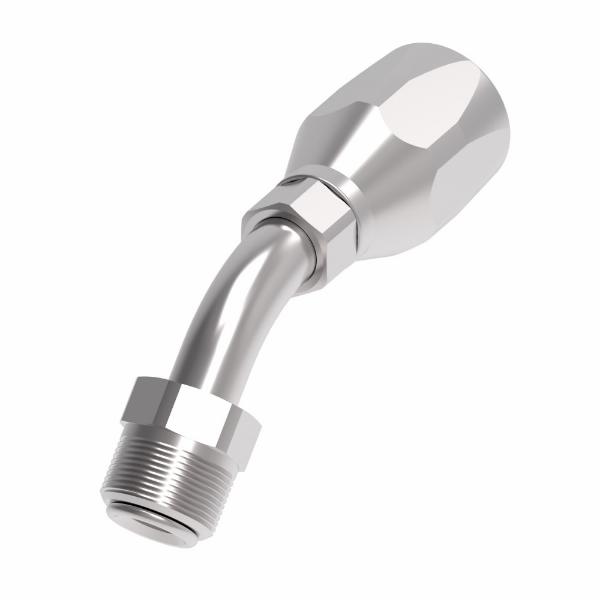

190371-4S | -4 | 45° Elbow | - | 45 Degree | 0.13" | 1.49" | 1/4" | 7/16" | €64.87 | |
|

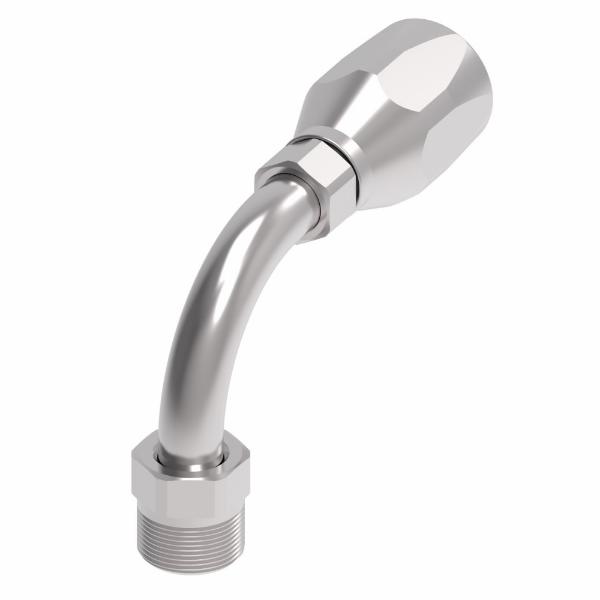

190235-4S | -4 | 90° Elbow | - | 90° | 0.13" | 2" | 1/4" | 7/16" | €58.60 | |
|
190235-6-8S | - | - | - | 90 Degree | 7/25" | 2 1/5" | - | - | €124.48 | |
|
190235-6S | -6 | 90° Elbow | 3/8" | 90° | 6/25" | 2.13" | 3/8" | 5/8" | €49.36 | |
|
190235-7-6S | -6 | 90° Elbow | 3/8" | 90° | 6/25" | 2.13" | 3/8" | 11/16" | €117.02 |
