WALTER TOOLS Solid Carbide Jobber Drill Bit
Filter
A
B
C| Style | Model | Flute Length | Overall Length | Shank Dia. | Drill Bit Size | Decimal Equivalent | Drill Bit Point Angle | Drill Bit Point Type | Grade | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | A3367-1/8IN | 1 1/16" | 2 19/32" | 6 mm | 1/8" | 0.125 | 130° | 4 Facet Point | Grade A | €170.86 | |
| A | A3367-5/32IN | 1 3/8" | 2 29/32" | 6 mm | 5/32" | 0.1563 | 130° | 4 Facet Point | Grade A | €170.75 | |
| A | A3367-13/64IN | 1 11/16" | 3 7/32" | 6 mm | 13/64" | 0.2031 | 130° | 4 Facet Point | Grade A | €173.69 | |
| A | A3367-3/16IN | 1 11/16" | 3 7/32" | 6 mm | 3/16" | 0.1875 | 130° | 4 Facet Point | Grade A | €173.69 | |
| B | A1276TFL-4.7 | 1 13/16" | 3 1/8" | 4.7 mm | #13 | 0.185 | 140° | 4 Facet Point | TFL | €182.53 | |
| A | A3367-17/64IN | 2 1/16" | 3 9/16" | 8 mm | 17/64" | 0.2656 | 130° | 4 Facet Point | Grade A | €207.79 | |
| A | A3367-25/64IN | 2 3/8" | 4 1/32" | 10 mm | 25/64" | 0.3906 | 130° | 4 Facet Point | Grade A | €248.35 | |
| B | A1276TFL-4.8 | 2 3/64" | 3 3/8" | 4.8 mm | #12 | 0.189 | 140° | 4 Facet Point | TFL | €184.04 | |
| B | A1276TFL-5.5 | 2" | 4" | 5.5 mm | - | - | - | - | TFL | €189.75 | |
| B | A1276TFL-9 | 3" | 5" | 9 mm | - | - | - | - | TFL | €333.42 | |
| A | A3367-3.5 | 28 mm | 66 mm | 6 mm | 3.5 mm | 0.1378 | 130° | 4 Facet Point | Grade A | €191.93 | |
| A | A3367-3.7 | 28 mm | 66 mm | 6 mm | 3.7 mm | 0.1457 | 130° | 4 Facet Point | Grade A | €209.91 | |
| A | A3367-3.3 | 28 mm | 66 mm | 6 mm | 3.3 mm | 0.1299 | 130° | 4 Facet Point | Grade A | €191.93 | |
| A | A3367-3 | 28 mm | 66 mm | 6 mm | 3 mm | 0.1181 | 130° | 4 Facet Point | Grade A | €191.93 | |

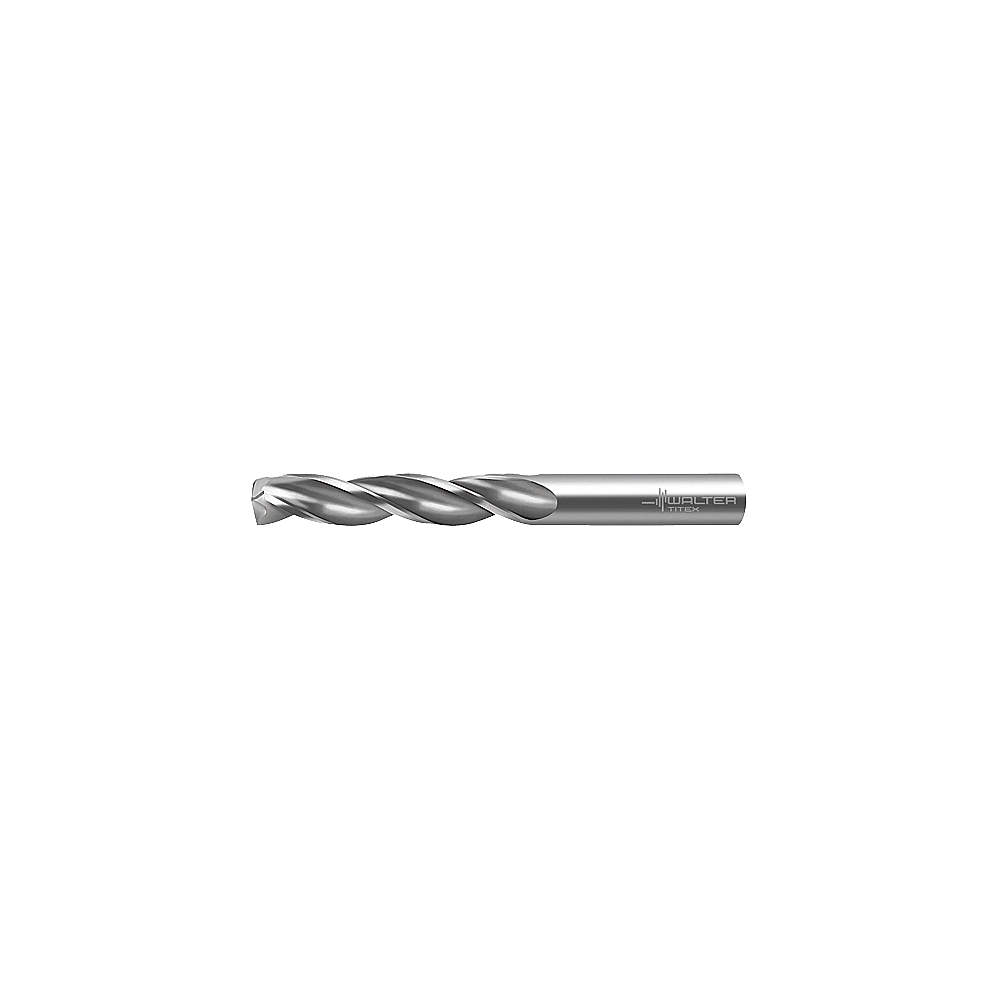

| C | A1167B-4 | 30 mm | 55 mm | 4 mm | 4 mm | 0.1575 | 150° | 4 Facet Point | Grade A | €66.33 | |
| B | A1276TFL-3 | 33 mm | 61 mm | 3 mm | 3 mm | 0.1181 | 140° | 4 Facet Point | TFL | €153.36 | |
| B | A1276TFL-3.3 | 36 mm | 65 mm | 3.3 mm | 3.3 mm | 0.1299 | 140° | 4 Facet Point | TFL | €164.04 | |
| A | A3367-3.8 | 36 mm | 74 mm | 6 mm | 3.8 mm | 0.1496 | 130° | 4 Facet Point | Grade A | €191.93 | |
| A | A3367-4 | 36 mm | 74 mm | 6 mm | 4 mm | 0.1575 | 130° | 4 Facet Point | Grade A | €191.93 | |
| A | A3367-4.2 | 36 mm | 74 mm | 6 mm | 4.2 mm | 0.1654 | 130° | 4 Facet Point | Grade A | €191.93 | |
| A | A3367-4.3 | 36 mm | 74 mm | 6 mm | 4.3 mm | 0.1693 | 130° | 4 Facet Point | Grade A | €195.46 | |
| A | A3367-4.5 | 36 mm | 74 mm | 6 mm | 4.5 mm | 0.1772 | 130° | 4 Facet Point | Grade A | €195.46 | |
| B | A1276TFL-3.1 | 36 mm | 65 mm | 3.1 mm | 3.1 mm | 0.122 | 140° | 4 Facet Point | TFL | €156.02 | |
| B | A1276TFL-3.2 | 36 mm | 65 mm | 3.2 mm | 3.2 mm | 0.126 | 140° | 4 Facet Point | TFL | €160.08 | |
| B | A1276TFL-3.7 | 39 mm | 70 mm | 3.7 mm | 3.7 mm | 0.1457 | 140° | 4 Facet Point | TFL | €166.73 | |
| B | A1276TFL-3.5 | 39 mm | 70 mm | 3.5 mm | 3.5 mm | 0.1378 | 140° | 4 Facet Point | TFL | €165.34 | |
| B | A1276TFL-3.4 | 39 mm | 70 mm | 3.4 mm | 3.4 mm | 0.1339 | 140° | 4 Facet Point | TFL | €165.34 | |
| B | A1276TFL-4.2 | 43 mm | 75 mm | 4.2 mm | 4.2 mm | 0.1654 | 140° | 4 Facet Point | TFL | €173.44 | |
| B | A1276TFL-3.8 | 43 mm | 75 mm | 3.8 mm | 3.8 mm | 0.1496 | 140° | 4 Facet Point | TFL | €168.00 | |
| B | A1276TFL-4 | 43 mm | 75 mm | 4 mm | 4 mm | 0.1575 | 140° | 4 Facet Point | TFL | €196.16 | |
| A | A3367-6 | 44 mm | 82 mm | 6 mm | 6 mm | 0.2362 | 130° | 4 Facet Point | Grade A | €191.93 | |
| A | A3367-5.5 | 44 mm | 82 mm | 6 mm | 5.5 mm | 0.2165 | 130° | 4 Facet Point | Grade A | €191.93 | |
| A | A3367-5 | 44 mm | 82 mm | 6 mm | 5 mm | 0.1969 | 130° | 4 Facet Point | Grade A | €191.93 | |
| A | A3367-5.9 | 44 mm | 82 mm | 6 mm | 5.9 mm | 0.2323 | 130° | 4 Facet Point | Grade A | €191.93 | |
| C | A1167B-7.4 | 45 mm | 74 mm | 7.4 mm | 7.4 mm | 0.2913 | 150° | Self Centering Point | Grade A | €91.27 | |
| B | A1276TFL-4.3 | 47 mm | 80 mm | 4.3 mm | 4.3 mm | 0.1693 | 140° | 4 Facet Point | TFL | €177.40 | |
| B | A1276TFL-4.5 | 47 mm | 80 mm | 4.5 mm | 4.5 mm | 0.1772 | 140° | 4 Facet Point | TFL | €178.79 | |
| B | A1276TFL-5 | 52 mm | 86 mm | 5 mm | 5 mm | 0.1969 | 140° | 4 Facet Point | TFL | €185.53 | |
| B | A1276TFL-5.1 | 52 mm | 86 mm | 5.1 mm | 5.1 mm | 0.2008 | 140° | 4 Facet Point | TFL | €188.80 | |
| B | A1276TFL-5.2 | 52 mm | 86 mm | 5.2 mm | 5.2 mm | 0.2047 | 140° | 4 Facet Point | TFL | €186.46 | |
| A | A3367-7 | 53 mm | 91 mm | 8 mm | 7 mm | 0.2756 | 130° | 4 Facet Point | Grade A | €230.76 | |
| A | A3367-6.8 | 53 mm | 91 mm | 8 mm | 6.8 mm | 0.2677 | 130° | 4 Facet Point | Grade A | €250.93 | |
| A | A3367-8 | 53 mm | 91 mm | 8 mm | 8 mm | 0.315 | 130° | 4 Facet Point | Grade A | €230.76 | |
| B | A1276TFL-5.8 | 57 mm | 93 mm | 5.8 mm | 5.8 mm | 0.2283 | 140° | 4 Facet Point | TFL | €196.01 | |
| B | A1276TFL-6 | 57 mm | 93 mm | 6 mm | 6 mm | 0.2362 | 140° | 4 Facet Point | TFL | €231.39 | |
| A | A3367-9 | 61 mm | 103 mm | 10 mm | 9 mm | 0.3543 | 130° | 4 Facet Point | Grade A | €274.59 | |
| A | A3367-8.5 | 61 mm | 103 mm | 10 mm | 8.5 mm | 0.3346 | 130° | 4 Facet Point | Grade A | €279.51 | |
| A | A3367-10 | 61 mm | 103 mm | 10 mm | 10 mm | 0.3937 | 130° | 4 Facet Point | Grade A | €274.59 | |
| B | A1276TFL-6.5 | 63 mm | 101 mm | 6.5 mm | 6.5 mm | 0.2559 | 140° | 4 Facet Point | TFL | €239.17 | |
| B | A1276TFL-6.6 | 63 mm | 101 mm | 6.6 mm | 6.6 mm | 0.2598 | 140° | 4 Facet Point | TFL | €220.19 | |
| B | A1276TFL-6.1 | 63 mm | 101 mm | 6.1 mm | 6.1 mm | 0.2402 | 140° | 4 Facet Point | TFL | €202.78 | |
| B | A1276TFL-7 | 69 mm | 109 mm | 7 mm | 7 mm | 0.2756 | 140° | 4 Facet Point | TFL | €232.05 | |
| B | A1276TFL-6.8 | 69 mm | 109 mm | 6.8 mm | 6.8 mm | 0.2677 | 140° | 4 Facet Point | TFL | €260.16 | |
| A | A3367-12 | 71 mm | 118 mm | 12 mm | 12 mm | 0.4724 | 130° | 4 Facet Point | Grade A | €381.36 | |
| A | A3367-10.2 | 71 mm | 118 mm | - | 10.2 mm | 0.4016 | 130° | 4 Facet Point | Grade A | €381.36 | |
| A | A3367-11 | 71 mm | 118 mm | 12 mm | 11 mm | 0.4331 | 130° | 4 Facet Point | Grade A | €381.36 | |
| B | A1276TFL-8 | 75 mm | 117 mm | 8 mm | 8 mm | 0.315 | 140° | 4 Facet Point | TFL | €321.39 | |
| B | A1276TFL-8.5 | 75 mm | 117 mm | 8.5 mm | 8.5 mm | 0.3346 | 140° | 4 Facet Point | TFL | €360.82 | |
| A | A3367-13.5 | 77 mm | 124 mm | 14 mm | 13.5 mm | 0.5315 | 130° | 4 Facet Point | Grade A | €514.34 | |
| A | A3367-13 | 77 mm | 124 mm | 14 mm | 13 mm | 0.5118 | 130° | 4 Facet Point | Grade A | €506.61 | |
| A | A3367-16 | 83 mm | 133 mm | 16 mm | 16 mm | 0.6299 | 130° | 4 Facet Point | Grade A | €690.99 |
