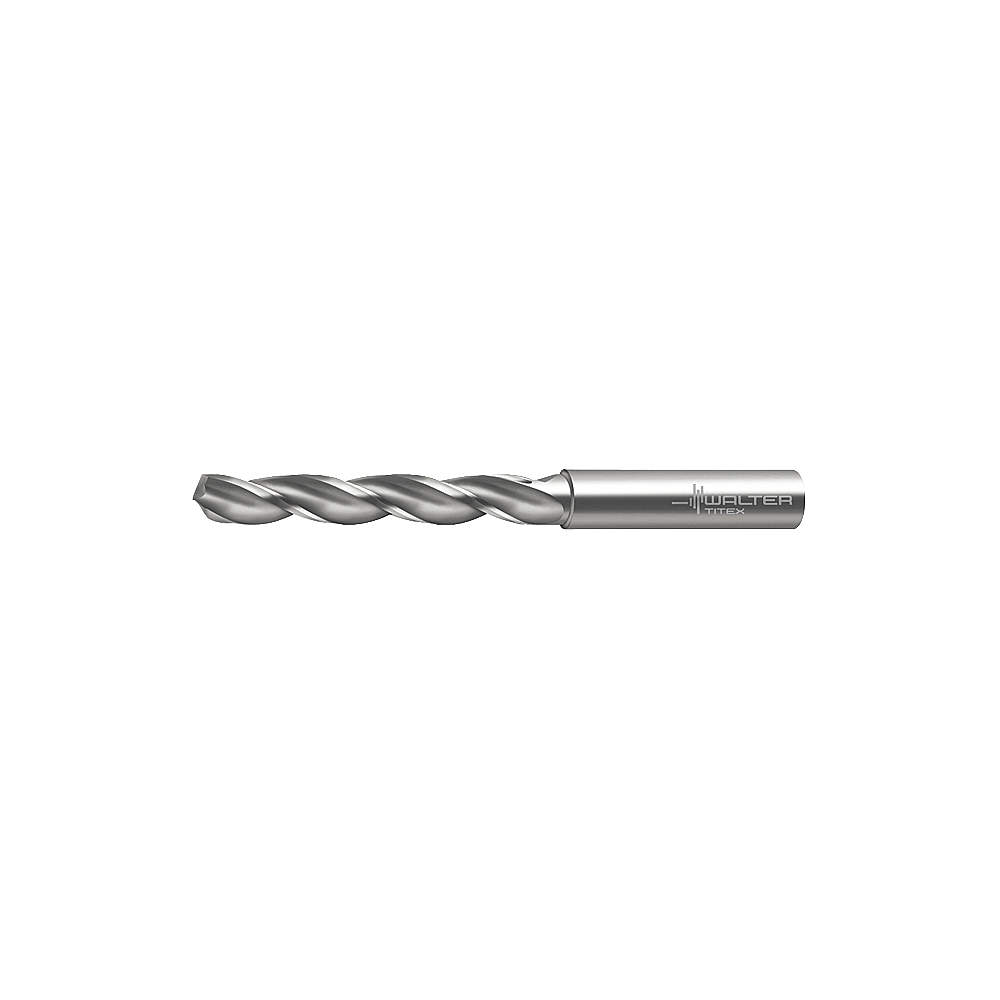

WALTER TOOLS A3367-7 5063685 Jobber Drill Solid Carbide 4 inch L
Item: AG6XXJModel: A3367-7Cross Ref: 49L011 / 5063685
7 In Stock
Ships within 2 days via
10.00% off
€207.68 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Drill Bit |
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Right |
| Decimal Equivalent | 0.2756 |
| Depthdia. Ratio | 5xd |
| Dimension Type | Metric |
| Drill Bit Point Angle | 130° |
| Drill Bit Point Type | 4 Facet Point |
| Drill Bit Size | 7 mm |
| Drill Diameter Tolerance | M7 |
| Drill Length Class | Jobber Length |
| Drill Point Length | 1.63 mm |
| Finish - Machining | Bright (Uncoated) |
| Flute Length | 53 mm |
| Flute Type | Spiral |
| Grade | Grade A |
| Material | Solid Carbide |
| Material - Machining | Carbide |
| Material Grade - Machining | Grade A |
| Maximum Drilling Depth | 43 mm |
| Measurement System | Metric |
| Number Of Flutes | 3 |
| Overall Length | 91 mm |
| Point Angle | 130° |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper |
| Primary Material Application Iso Code | K, N |
| Secondary Material Application | Composite, Nickel, Titanium |
| Secondary Material Application Iso Code | O, S |
| Series | Bohrs. Version Bsx |
| Shank Dia. | 8 mm |
| Shank Length | 36 mm |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Standards | Din 6537 L |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 9.1 |
| Ship width (cm) | 2.54 |
| HS code | 8209000030 |
| Country of Origin | CN |
Product Details:
- Coolant Through (No)
Product Variants
| Model | Flute Length | Overall Length | Shank Dia. | Drill Bit Size | Decimal Equivalent | Drill Bit Point Angle | Drill Bit Point Type | Grade | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

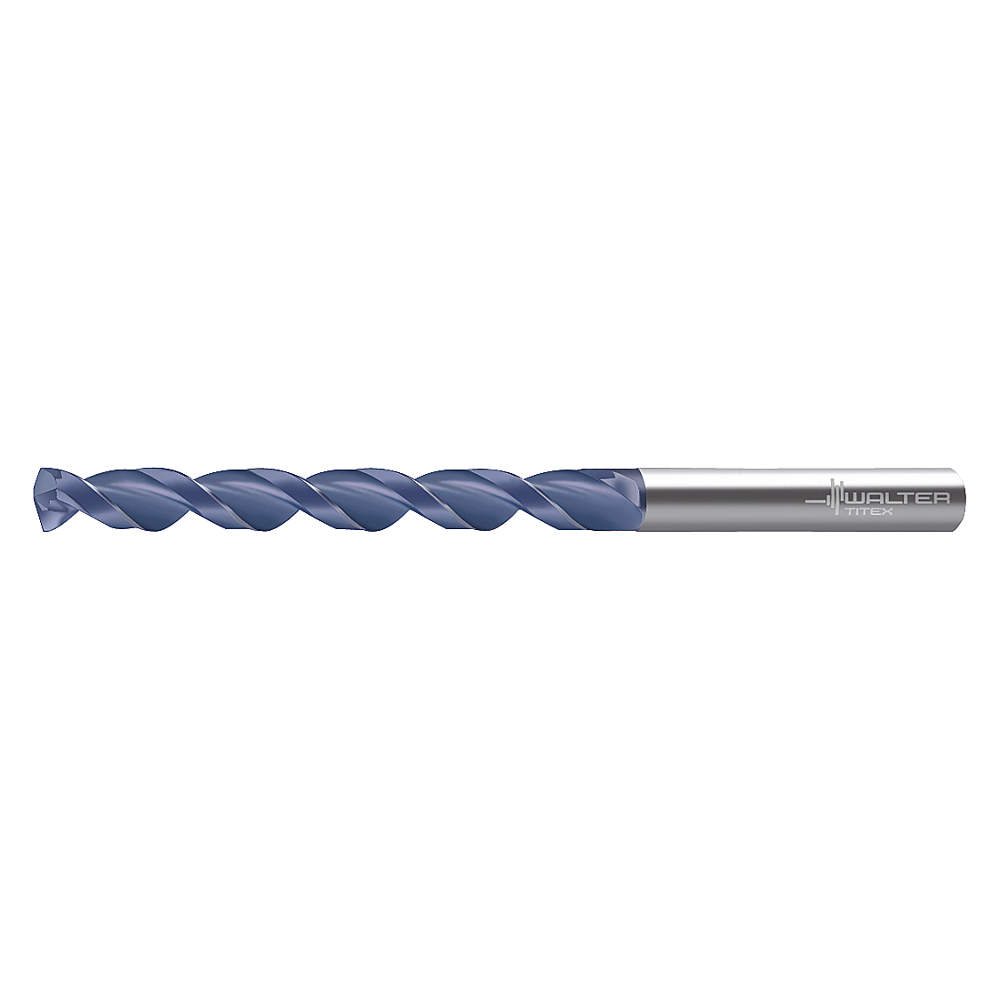

| A1276TFL-3 | 33 mm | 61 mm | 3 mm | 3 mm | 0.1181 | 140° | 4 Facet Point | TFL | €153.36 | |
| A1276TFL-3.1 | 36 mm | 65 mm | 3.1 mm | 3.1 mm | 0.122 | 140° | 4 Facet Point | TFL | €156.02 | |
| A1276TFL-3.2 | 36 mm | 65 mm | 3.2 mm | 3.2 mm | 0.126 | 140° | 4 Facet Point | TFL | €160.08 | |
| A1276TFL-3.3 | 36 mm | 65 mm | 3.3 mm | 3.3 mm | 0.1299 | 140° | 4 Facet Point | TFL | €164.04 | |
| A1276TFL-3.4 | 39 mm | 70 mm | 3.4 mm | 3.4 mm | 0.1339 | 140° | 4 Facet Point | TFL | €165.34 | |
| A1276TFL-3.5 | 39 mm | 70 mm | 3.5 mm | 3.5 mm | 0.1378 | 140° | 4 Facet Point | TFL | €165.34 | |
| A1276TFL-3.7 | 39 mm | 70 mm | 3.7 mm | 3.7 mm | 0.1457 | 140° | 4 Facet Point | TFL | €166.73 |
