WALTER TOOLS Indexable Grooving Inserts
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T| Style | Model | Cutting Direction | Chip-breaker Code | Corner Radius | Overall Length | Lead Angle | Max. Grooving Width | Cutting Application | Cutting Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | DX18-3E300L6-CF6 WSM33S | Left Hand | CF6 | 0.2 mm | 18 mm | 0° | 3 mm | - | 17 mm | €45.53 | |
| B | MX22-2L200N02-GD8 WSM23S | Left Hand | GD8 | 0.2 mm | 22 mm | 0° | 2 mm | - | 5 mm | €97.75 | |

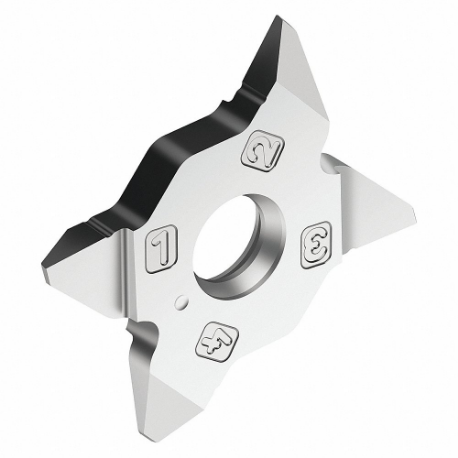

| C | MX22-2L280L01-VG8 WSM23S | Left Hand | VG8 | 0.05" | 23 mm | 0° | 2.8 mm | - | 5.5 mm | €102.73 | |
| D | MX22-2E080L5-CF5 WSM23S | Left Hand | CF5 | 0.002" | 0.886" | 0° | 0.031" | Grooving, Parting | 1/16" | €102.73 | |

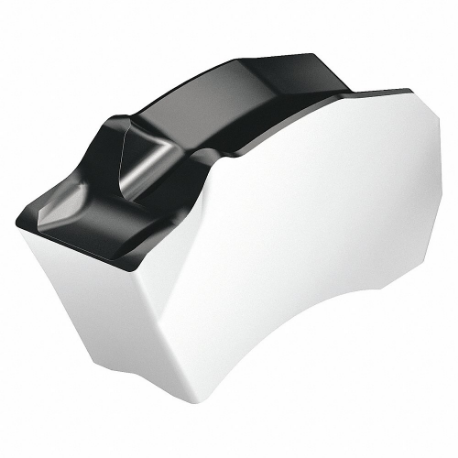

| E | SX-4E400L6-CE4 WSM33S | Left Hand | CE4 | 0.008" | 1/2" | - | 0.157" | Grooving, Parting | - | €31.99 | |

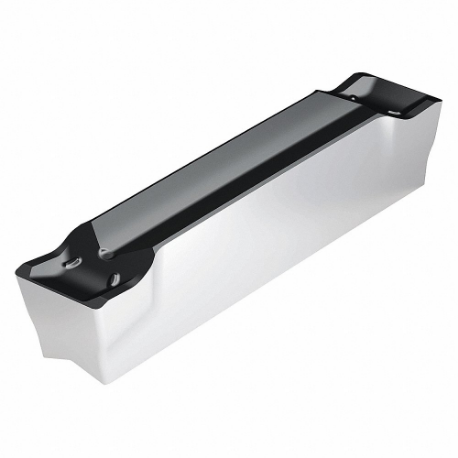

| F | GX34-2E300L6-CE4 WSM33S | Left Hand | CE4 | - | 1.339" | 0° | 0.118" | Grooving, Parting | 1 13/50" | - | RFQ
|
| G | GX16-2E120L00-GD8 WSM23S | Left Hand | GD8 | - | 5/8" | - | 0.047" | Grooving, Parting | 0.053" | €59.64 | |
| A | DX18-2E250L6-CF6 WSM33S | Left Hand | CF6 | 0.2 mm | 18 mm | 0° | 2.5 mm | - | 17 mm | €45.53 | |
| D | MX22-2E200L6-CF5 WSM23S | Left Hand | - | 0.004" | 0.886" | 0° | 0.079" | Grooving, Parting | 0.236" | €102.73 | |

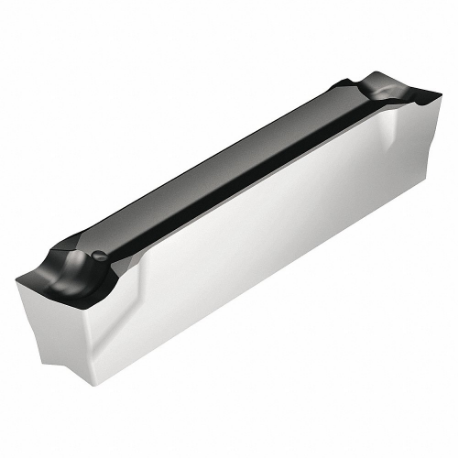

| H | GX34-2E300L6-CF5 WSM33S | Left Hand | CF5 | 0.012" | 1.339" | 0° | 0.118" | Grooving, Parting | 1 13/50" | €56.52 | |
| I | DX18-2E200L7-CF5 WSM33S | Left Hand | CF5 | - | 18 mm | 0° | 2 mm | - | 17 mm | €50.10 | |
| J | SX-4E400L6-CF5 WSM33S | Left Hand | CF5 | 0.008" | 1/2" | 0° | 0.157" | Grooving, Parting | - | €31.99 | |
| E | SX-3E300L6-CE4 WKP23S | Left Hand | CE4 | 0.008" | 1/2" | 0° | 0.118" | Grooving, Parting | - | - | RFQ
|
| K | DX18-3E300L6-CE4 WSM43S | Left Hand | CE4 | 0.2 mm | 18 mm | 0° | 3 mm | - | 17 mm | €45.53 | |
| I | DX18-3E300L6-CF5 WSM33S | Left Hand | CF5 | 0.2 mm | 18 mm | 0° | 3 mm | - | 17 mm | €45.53 | |
| J | SX-3E300L6-CF5 WSM33S | Left Hand | CF5 | 0.008" | 1/2" | 0° | 0.118" | Grooving, Parting | - | €30.25 | |
| E | SX-5E500L6-CE4 WSM33S | Left Hand | CE4 | 1/64" | 1/2" | 0° | 0.197" | Grooving, Parting | - | - | RFQ
|
| G | GX16-2E140L00-GD8 WSM23S | Left Hand | GD8 | - | 5/8" | 0° | - | Grooving, Parting | 3/50" | €57.11 | |
| I | DX18-2E200L15-CF5 WSM33S | Left Hand | CF5 | - | 18 mm | 0° | 2 mm | - | 17 mm | €50.10 | |
| K | DX18-2E200L6-CE4 WSM43S | Left Hand | CE4 | 0.2 mm | 18 mm | 0° | 2 mm | - | 17 mm | €43.80 | |
| D | MX22-2E150L10-CF5 WSM23S | Left Hand | CF5 | 0.002" | 0.886" | 0° | - | Grooving, Parting | 0.197" | €102.73 | |
| G | GX09-1E140L00-GD8 WSM23S | Left Hand | GD8 | - | 0.354" | 0° | 0.055" | Grooving, Parting | 3/50" | €59.87 | |
| I | DX18-2E200L6-CF5 WSM43S | Left Hand | CF5 | 0.2 mm | 18 mm | 0° | 2 mm | - | 17 mm | €45.53 | |

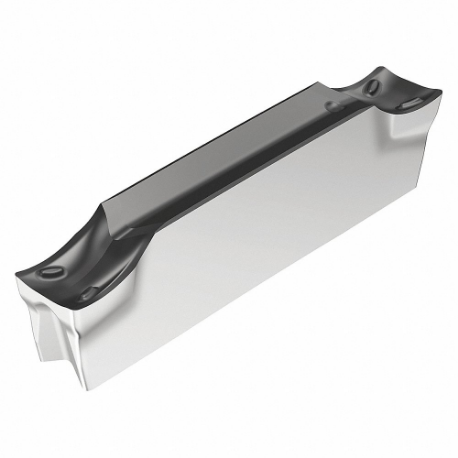

| A | DX18-2E200L6-CF6 WSM33S | Left Hand | CF6 | 0.2 mm | 18 mm | 0° | 2 mm | - | 17 mm | €45.53 | |
| K | DX18-2E200L6-CE4 WSM33S | Left Hand | - | 0.2 mm | 18 mm | 0° | 2 mm | - | 17 mm | €43.80 | |
| B | MX22-2L150N01-GD8 WSM23S | Left Hand | GD8 | 0.1" | 22 mm | 0° | 1.5 mm | - | 5 mm | €97.75 | |
| E | SX-6E600L6-CE4 WSM33S | Left Hand | CE4 | 1/64" | 1/2" | 0° | 0.236" | Grooving, Parting | - | €35.50 | |
| E | SX-3E300L6-CE4 WSM33S | Left Hand | CE4 | 0.008" | 1/2" | 0° | 0.118" | Grooving, Parting | - | €30.25 | |
| I | DX18-2E250L6-CF5 WSM33S | Left Hand | CF5 | 0.2 mm | 18 mm | 0° | 2.5 mm | - | 17 mm | €45.53 | |
| J | SX-3E300L6-CF5 WSM43S | Left Hand | CF5 | 0.008" | 1/2" | - | 0.118" | - | - | €30.25 | |
| I | DX18-2E200L7-CF5 WSM23S | Left Hand | CF5 | - | 18 mm | 0° | 2 mm | - | 17 mm | €50.10 | |
| A | DX18-2E200L6-CF6 WSM43S | Left Hand | CF6 | 0.2 mm | 18 mm | 0° | 2 mm | - | 17 mm | €43.80 | |
| G | GX09-1E120L00-GD8 WSM23S | Left Hand | GD8 | - | 0.354" | 0° | 0.047" | Grooving, Parting | 0.053" | €59.87 | |

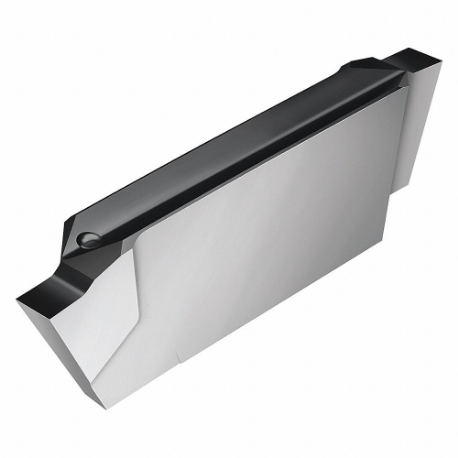

| G | GX09-1E100L00-GD8 WSM23S | Left Hand | GD8 | - | 0.354" | 0° | 0.039" | Grooving, Parting | 0.045" | €56.23 | |

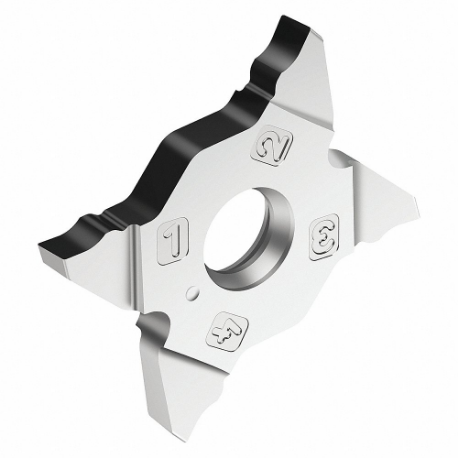

| B | MX22-2L300N02-GD8 WSM23S | Left Hand | GD8 | 0.2 mm | 22 mm | 0° | 3 mm | - | 5 mm | €102.73 | |

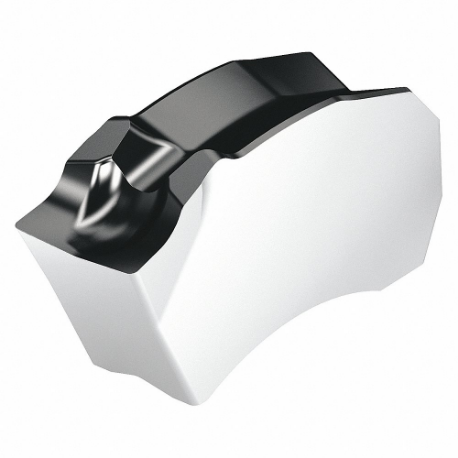

| J | SX-2E200L6-CF5 WSM33S | Left Hand | CF5 | 0.008" | 1/2" | 0° | 0.079" | Grooving, Parting | - | - | RFQ
|
| D | MX22-2E100L10-CF5 WSM23S | Left Hand | CF5 | 0.002" | 0.886" | 0° | - | Grooving, Parting | 0.138" | €102.73 | |
| G | GX16-2E100L00-GD8 WSM23S | Left Hand | GD8 | - | 5/8" | 0° | 0.039" | Grooving, Parting | 0.045" | €57.11 | |

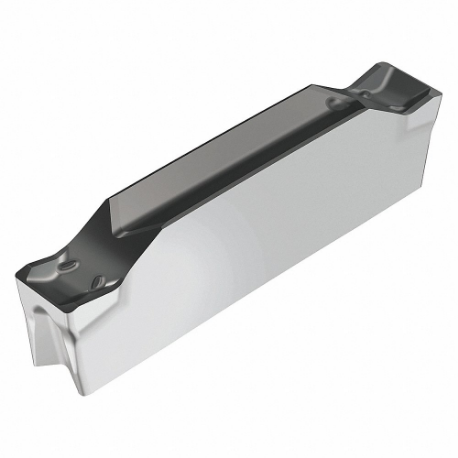

| K | DX18-3E300L6-CE4 WSM33S | Left Hand | CE4 | 0.2 mm | 18 mm | 0° | 3 mm | - | 17 mm | €44.41 | |
| L | SX-3E300N02-CK8 WK1 | Neutral | CK8 | 0.008" | 0.484" | 0° | 0.118" | Grooving, Parting | - | €28.42 | |
| M | GX24-3F400N20FS-M1 WDN10 | Neutral | M1 | 0.079" | - | 0° | 0.157" | Copy Turning, Grooving | - | €367.05 | |
| N | GX24-2E300N02-UF8 WSM23S | Neutral | UF8 | 0.008" | 0.945" | 0° | 0.118" | Grooving, Recessing | 0.866" | €64.35 | |
| E | SX-3E300N02-CE4 WKP23S | Neutral | CE4 | 0.008" | 0.484" | 0° | 0.118" | Grooving, Parting | - | €28.27 | |
| D | MX22-2E300N02-CF5 WSM23S | Neutral | CF5 | 0.008" | 0.866" | 0° | 0.118" | Grooving, Parting | 0.236" | €103.68 | |
| O | GX16-2E300N15-RF8 WSM13S | Neutral | RF8 | 0.059" | 5/8" | 0° | - | Copy Turning, Grooving | 0.591" | €59.33 | |
| J | SX-3E310N03-CF5 WSM43S | Neutral | CF5 | 0.012" | 0.484" | 0° | 0.122" | Grooving, Parting | - | €30.42 | |
| P | MX22-2E325N02-GD8 WSM23S | Neutral | GD8 | 0.008" | 0.866" | 0° | - | Grooving, Parting | 0.236" | €102.01 | |
| D | MX22-2E325N02-CF5 WSM23S | Neutral | CF5 | 0.008" | 0.866" | 0° | 0.128" | Grooving, Parting | 0.236" | €103.68 | |
| Q | GX24-4F600N02FS-F1 WDN10 | Neutral | F1 | 0.008" | 0.945" | 0° | 0.236" | Grooving, Parting | - | €433.71 | |
| H | GX34-3E400N04-CF5 WSM43S | Neutral | CF5 | 1/64" | 1.339" | 0° | 0.157" | Grooving, Parting | 1 13/50" | €62.16 | |
| R | GX24-3E400N04-UF4 WSM23S | Neutral | UF4 | 1/64" | 0.945" | 0° | 0.157" | Grooving, Recessing | 0.866" | €54.46 | |
| N | GX16-3E400N04-UF8 WSM23S | Neutral | UF8 | 1/64" | 5/8" | 0° | - | Grooving, Recessing | 0.591" | €65.31 | |

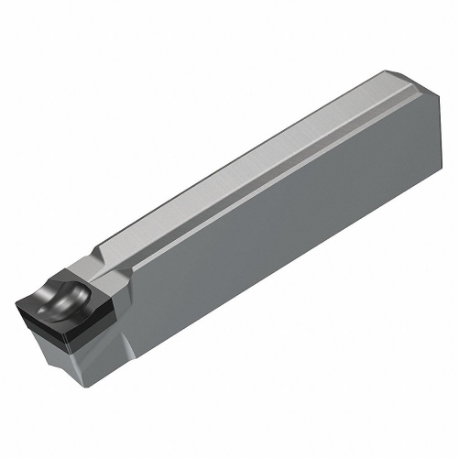

| Q | GX24-3F475N02FS-F1 WDN10 | Neutral | F1 | 0.008" | 0.945" | 0° | 0.187" | Grooving, Parting | - | - | RFQ
|
| N | GX24-3E500N08-UF8 WSM23S | Neutral | UF8 | 1/32" | 0.945" | 0° | 0.197" | Grooving, Recessing | 0.866" | €77.19 | |

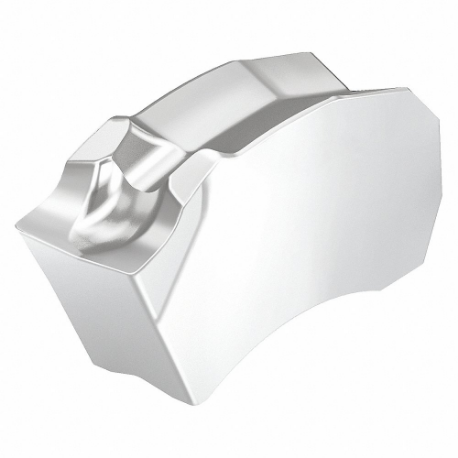

| L | SX-5E500N04-CK8 WK1 | Neutral | CK8 | 1/64" | 0.484" | 0° | 0.197" | Grooving, Parting | - | €32.46 | |
| F | GX24-3E500N030-CE4 WPP23 | Neutral | CE4 | 0.012" | 0.945" | 0° | 0.197" | Grooving, Parting | 0.866" | €59.37 | |
| E | SX-3E300N02-CE4 WSM23S | Neutral | CE4 | 0.008" | 0.484" | 0° | 0.118" | Grooving, Parting | - | €30.07 | |
| E | SX-6E600N04-CE4 WSM33S | Neutral | CE4 | 1/64" | 0.484" | 0° | 0.236" | Grooving, Parting | - | €36.05 | |
| S | SX-8E800N08-UF4 WSM33S | Neutral | UF4 | 1/32" | 0.685" | 0° | 0.315" | Grooving, Recessing | - | €46.03 | |
| T | SX-3E300N02-SK8 WK1 | Neutral | SK8 | 0.008" | 0.484" | 0° | 0.118" | Slitting | - | €22.43 | |
| P | MX22-2E150N01-GD8 WSM23S | Neutral | GD8 | 0.004" | 0.866" | - | 0.059" | Grooving, Parting | 0.197" | €102.01 |
