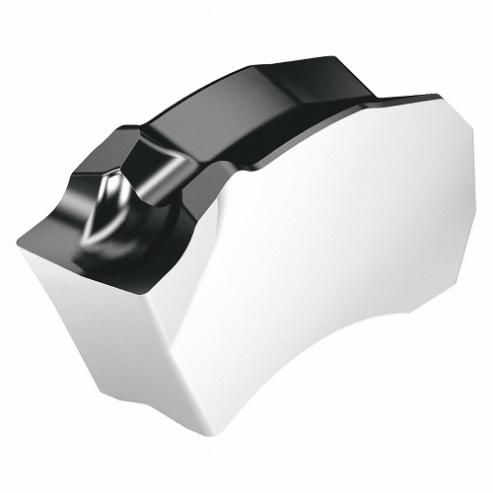

WALTER TOOLS SX-5E500N04-CF5 WSM43S 6646226 Indexable Parting And Grooving Insert, Neutral, 0.1970 Inch Max. Grooving Width
Item: CU8KGNModel: SX-5E500N04-CF5 WSM43SCross Ref: 56RX84 / 6646226
7 In Stock
Ships within 2 days via
5.00% off
€31.91 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Insert |
| Ansi Code | SX-5E500N04-CF5 |
| Chip Breaker | Yes |
| Chip-breaker Code | CF5 |
| Corner Radius | 1/64" |
| Cutting Application | Grooving, Parting |
| Cutting Direction | Neutral |
| Cutting Speed | 230 SFPM to 520 SFPM |
| Cutting Width | 0.197" |
| Cutting Width Tolerance | -0.002" to +0.002" |
| Feed Rate | 0.004" to 0.01" |
| Finish-machining | Tialn+Al2O3+(Al) |
| Hand | N |
| Iso Number | SX-5E500N04-CF5 |
| Lead Angle | 0° |
| Length Tolerance | -0.0039" to +0.0039" |
| Manufacturer Grade | Grade WSM43S |
| Max. Grooving Width | 0.197" |
| No. Of Cutting Edges | 1 |
| Overall Length | 0.484" |
| Radius | 0.016" |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Product | Model | Manufacturer Grade | Finish-machining | Cutting Depth | Cutting Edge Length | Material | Material-machining | Cutting Direction | Chip-breaker Code | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SX-6E600L6-CE4 WSM33S | WSM33S | Tialn+Al2O3+(Al) | - | - | - | - | Left Hand | CE4 | €35.50 | |
|
SX-3E300L6-CE4 WSM33S | WSM33S | Tialn+Al2O3+(Al) | - | - | - | - | Left Hand | CE4 | €30.25 | |
 |
DX18-2E250L6-CF5 WSM33S | WSM33S | Tialn+Al2O3+(Al) | 17 mm | 0.709" | - | - | Left Hand | CF5 | €45.53 | |
 |
SX-3E300L6-CF5 WSM43S | - | - | - | - | - | - | Left Hand | CF5 | €30.25 | |
 |
DX18-2E200L6-CF6 WSM43S | Grade WSM43S | Tialn+Al2O3+(Al) | 17 mm | 0.709" | - | - | Left Hand | CF6 | €43.80 | |
|
DX18-2E200L7-CF5 WSM23S | WSM23S | Tialn+Al2O3+(Al) | 17 mm | 0.709" | - | - | Left Hand | CF5 | €50.10 | |
 |
DX18-2E200L6-CE4 WSM33S | WSM33S | Tialn+Al2O3+(Al) | 17 mm | 0.709" | - | - | Left Hand | - | €43.80 |
