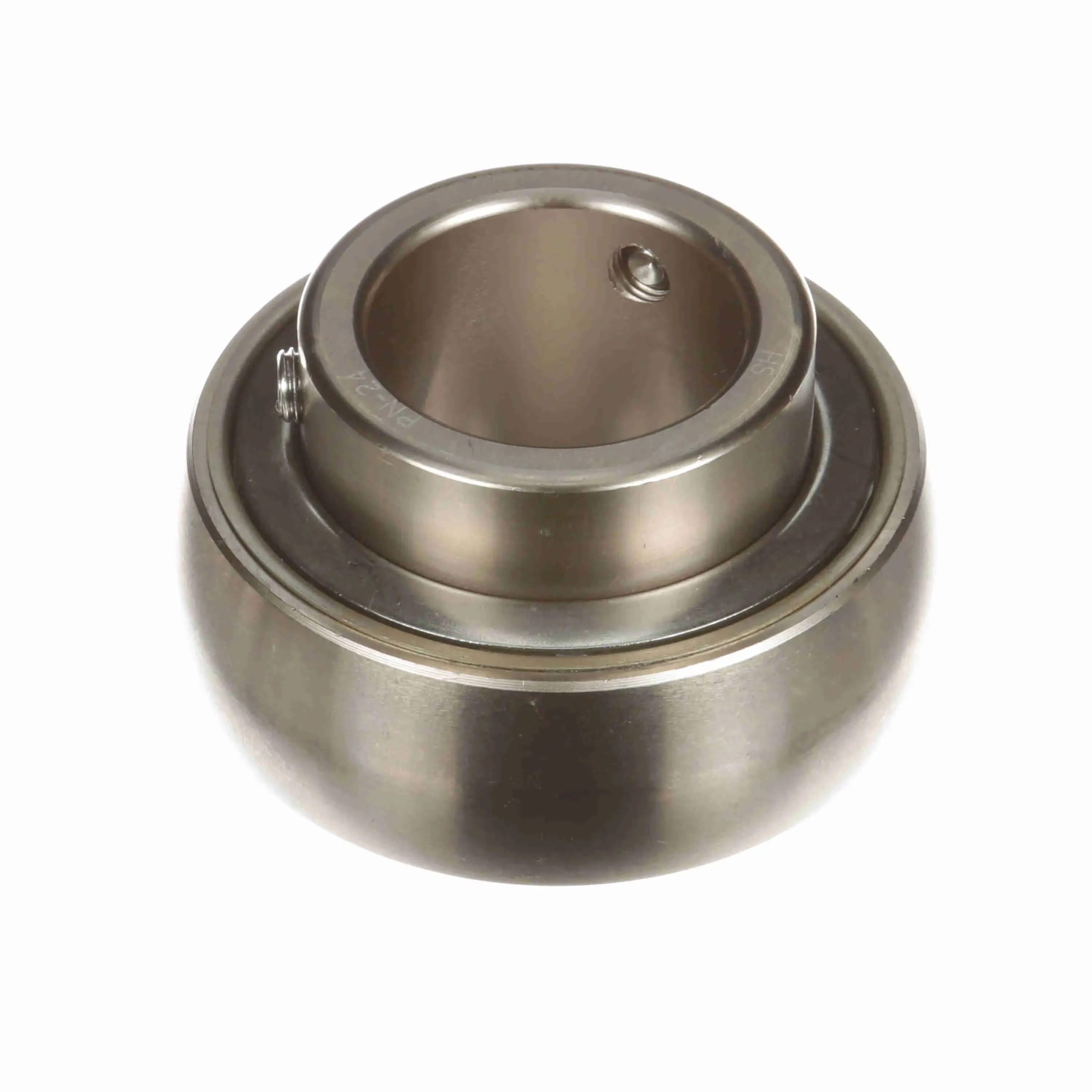

SEALMASTER PN-24 711021 Ball Insert Bearing, Cylindrical Bore, 1-1/2 Inch Inside Dia.
Get it by Thursday, Aug 27
€222.39 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Phosphorus Nickel Coated |
| Bore Dia. | 1 1/2" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Centerline To Front Face | 1.188" |
| Duty Series | Standard Series |
| Dynamic Radial Load Capacity | 7340 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | No |
| Housing Type | Insert Only |
| Htc | 8482.10.5052 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Race Length | 1.938" |
| Inner Race Profile | Wide Inner Ring |
| Insert Material | Steel |
| Insert Material Finish | Phosphorus Nickel Coated |
| Insert Material Grade | 52100 |
| Inside Ring Outside Dia. | 2.063" |
| Internal Clearance | Standard |
| Ip Rating | IP69K |
| Locking Type | Set Screw |
| Lubrication Type | Calcium Sulfonate Nlgi 2 Nsf H1 Food Grade Grease |
| Max. Operating Temp. | 220°F |
| Max. Speed | 1750 RPM |
| Measure Units | Inch |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Race Profile | Spherical |
| Outer Race Width | 1.094" |
| Outer Ring Land Profile | Standard |
| Outside Race Outside Dia. | 3.15" |
| Overall Width | 1.938" |
| Platform | PN Gold |
| Precision Rating | Abec 1 |
| Radial Static Load Capacity | 4467 lbs. |
| Radius | 0.062" |
| Replaceable Insert | No |
| Retainer Type | Land Riding Retainer |
| Rolling Element | Ball Bearing |
| Series | Pn Series |
| Set Screw Thread Size | 5/16"-24 |
| Type Of Seal | Triple Lip Contact Seal |
Shipping Info:
| Ship weight (kg) | 0.86 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 9.22 |
| Ship width (cm) | 9.22 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Seal Type | Htc | Dynamic Radial Load Capacity | Outer Race Width | Inner Race Length | Cage Material | Retainer Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PN-205T | - | Triple Lip Contact | - | 2801 lbs. | 0.688" | 36.5 mm | Brass | Land Riding | €161.77 | |
 |
PN-39 | 2 7/16" | - | 8482.10.5056 | 11789 lbs. | 1 1/4" | 2.563" | Polyphenylene Sulfide | Land Riding Retainer | €581.39 | |
 |
PN-35 | 2 3/16" | - | 8482.10.5052 | 9752 lbs. | 1.188" | 2.188" | Polyphenylene Sulfide | Land Riding Retainer | €480.57 | |
 |
PN-10 | 5/8" | - | 8482.10.5048 | - | - | - | - | - | €764.60 | |
|
PN-210 | 50 mm | - | 8482.10.5052 | 7889 lbs. | 1 1/8" | 51.54 mm | Polyphenylene Sulfide | Land Riding Retainer | €332.11 | |
 |
PN-207T | 35 mm | - | 8482.10.5052 | 5782 lbs. | 15/16" | 44.5 mm | Polyphenylene Sulfide | Land Riding Retainer | €233.96 | |
 |
PN-23T | 1 7/16" | - | 8482.10.5052 | 5782 lbs. | 0.938" | 1 3/4" | Polyphenylene Sulfide | Land Riding Retainer | €233.96 |
