NTN Radial Ball Bearings
Filter
A
B
C
D
E
F
G
H
I
J
K| Style | Model | Cage Material | Bore Dia. | Closure | Ball Material | Dynamic Load Capacity | Static Load Capacity | Max. Temp. | Min. Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | DC211TTR2 | - | 2.188" | Double Sealed | Steel | 9750 lbs. | 6550 lbs. | 250°F | -40°F | €296.09 | |

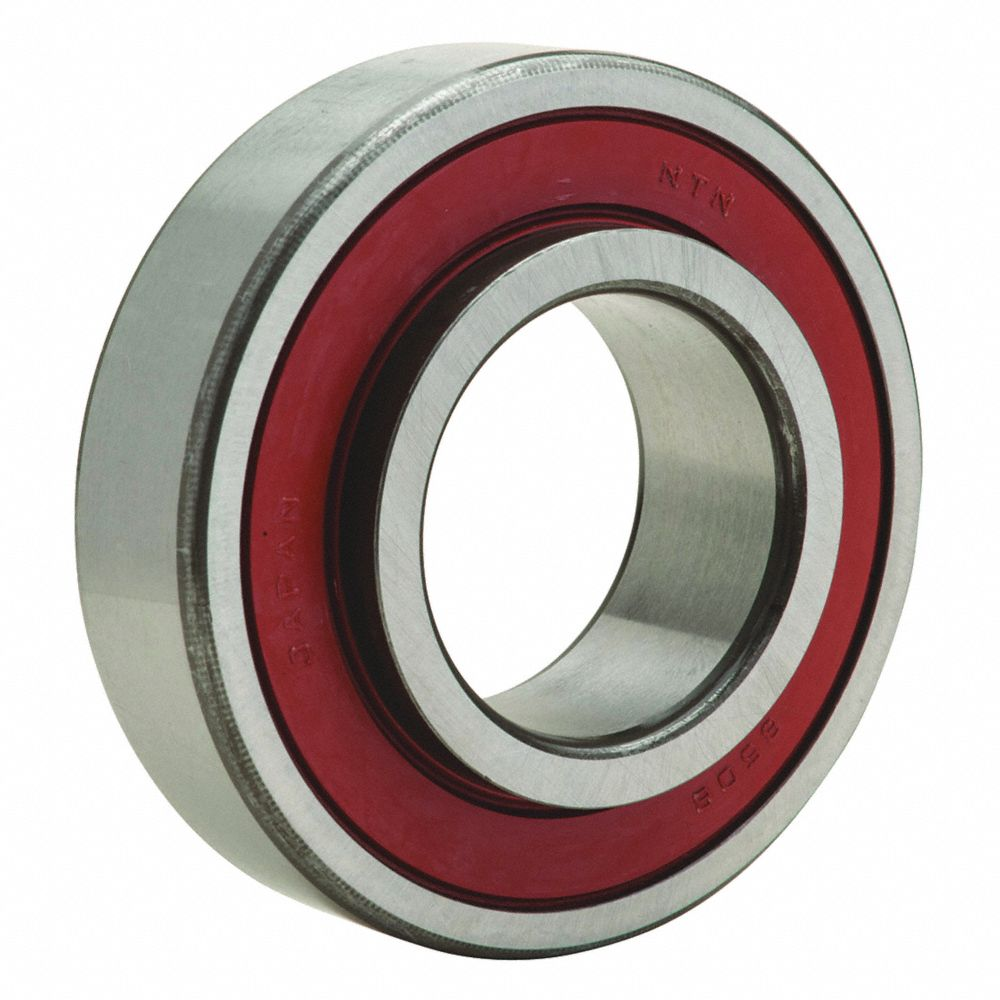

| B | 885062AS | - | 30 mm | Double Sealed | - | - | - | - | - | €79.70 | |
| C | DS208TT5 | - | 1 1/8" | Double Sealed | Steel | 6550 lbs. | 4000 lbs. | 250°F | -40°F | €145.72 | |
| D | FD209RJH | Nylon | 1 3/4" | Double Sealed | Steel | 7050 lbs. | 4550 lbs. | 250°F | -40°F | €219.90 | |
| C | DS209TT5 | Nylon | - | - | - | - | 4500 lbs. | - | - | €215.46 | |
| E | DS209TT6E | Nylon | 1.77" | Double Sealed | Steel | 7300 lbs. | 4500 lbs. | 250°F | -40°F | €263.26 | |
| E | DS211TT4 | Nylon | 2.188" | Double Sealed | Steel | 9812 lbs. | 6570 lbs. | - | - | €413.93 | |
| D | FD209RE | Nylon | 1 1/2" | Double Sealed | Steel | 7050 lbs. | 4550 lbs. | 250°F | -40°F | €271.78 | |
| D | FD209RJ | Nylon | 1 3/4" | Double Sealed | Steel | 7050 lbs. | 4550 lbs. | 250°F | -40°F | €228.28 | |
| D | FD209RJA | Nylon | 1 3/4" | Double Sealed | Steel | 7050 lbs. | 4550 lbs. | 250°F | -40°F | €231.23 | |
| F | FD209RM | Nylon | - | Double Sealed | Steel | 7050 lbs. | 4550 lbs. | 250°F | -40°F | €270.65 | |
| F | FD209RK | Nylon | 1 1/4" | Double Sealed | Steel | 7050 lbs. | 4550 lbs. | 250°F | -40°F | €305.99 | |
| G | CDS211TTR23 | Nylon | 1.78" | Double Sealed | Steel | 9750 lbs. | 6550 lbs. | 250°F | -40°F | €440.37 | |
| D | FD211REA | Nylon | 1 3/4" | Double Sealed | Steel | 9800 lbs. | 6550 lbs. | 250°F | -40°F | €447.51 | |
| D | FD211RJA | Nylon | 1.937" | Double Sealed | Steel | 9800 lbs. | 6550 lbs. | 250°F | -40°F | €529.00 | |
| F | FD211RM | Nylon | - | Double Sealed | Steel | 9800 lbs. | 6550 lbs. | 250°F | -40°F | €520.55 | |
| A | DC209TTR10 | Nylon | 1.77" | Double Sealed | Steel | 7350 lbs. | 4600 lbs. | 250°F | -40°F | €181.55 | |
| C | DC209TTR8 | Nylon | 1 1/4" | Double Sealed | Steel | 7350 lbs. | 4600 lbs. | 250°F | -40°F | €210.32 | |
| C | DS208TT6 | Nylon | - | - | - | - | 4500 lbs. | - | - | €149.56 | |
| G | CDS209TTR6P | Nylon | 1.53" | Double Sealed | Steel | 7350 lbs. | 4600 lbs. | 250°F | -40°F | €337.11 | |
| E | DS208TT2A | Nylon | 1 1/2" | - | - | 6550 lbs. | 4000 lbs. | - | - | €290.53 | |
| A | DC214TTR3 | Nylon | 2.688" | Double Sealed | Steel | 14000 lbs. | 9900 lbs. | 250°F | -40°F | €563.30 | |
| A | DC211TTR21 | Nylon | 1.78" | Double Sealed | Steel | 9750 lbs. | 6550 lbs. | 250°F | -40°F | €258.70 | |
| D | FD211RBA | Nylon | 2.187" | Double Sealed | Steel | 9800 lbs. | 6550 lbs. | 250°F | -40°F | €365.93 | |
| C | DS208TT9 | Steel | - | Double Sealed | Steel | 6550 lbs. | 4000 lbs. | 250°F | -40°F | €120.64 | |
| H | 7MC3-6216C3 | Steel | 80 mm | Open | Alloy, Steel | 80500N | 53000N | 120°C | -40°C | €1,504.49 | |
| H | 7MC3-6310C3 | Steel | 50 mm | Open | Alloy, Steel | 68500N | 38500N | 120°C | -40°C | €1,221.69 | |
| I | 627ZZC3/L627 | Steel | 7 mm | Double Shielded | Alloy, Steel | 3700N | 1400N | 120°C | -40°C | €16.61 | |
| H | 7MC3-6236C3 | Steel | 180 mm | Open | Alloy, Steel | 252000N | 241000N | 120°C | -40°C | €8,619.55 | |
| H | 7MC3-6230C3 | Steel | 150 mm | Open | Alloy, Steel | 176000N | 168000N | 120°C | -40°C | €4,663.85 | |
| H | 7MC3-6228C3 | Steel | 140 mm | Open | Alloy, Steel | 184000N | 150000N | 120°C | -40°C | €3,408.22 | |
| H | 7MC3-6224C3 | Steel | 120 mm | Open | Alloy, Steel | 172000N | 131000N | 120°C | -40°C | €2,973.71 | |
| H | 7MC3-6222C3 | Steel | 110 mm | Open | Alloy, Steel | 160000N | 117000N | 120°C | -40°C | €2,679.95 | |
| H | 7MC3-6219C3 | Steel | 95 mm | Open | Alloy, Steel | 121000N | 82000N | 120°C | -40°C | €1,999.58 | |
| H | 7MC3-6218C3 | Steel | 90 mm | Open | Alloy, Steel | 106000N | 71500N | 120°C | -40°C | €1,745.21 | |
| H | 7MC3-6217C3 | Steel | 85 mm | Open | Alloy, Steel | 92000N | 64000N | 120°C | -40°C | €1,659.36 | |
| H | 7MC3-6215C3 | Steel | 75 mm | Open | Alloy, Steel | 73500N | 49500N | 120°C | -40°C | €1,320.42 | |
| H | 7MC3-6312C3 | Steel | 60 mm | Open | Alloy, Steel | 82000N | 52000N | 120°C | -40°C | €1,316.79 | |
| J | HPS108GPH | Steel | - | Double Sealed | Steel | 7350 lbs. | 4600 lbs. | 250°F | -40°F | €249.01 | |
| J | HPS108GPB | Steel | 1 1/2" | Double Sealed | Steel | 7900 lbs. | 5200 lbs. | 250°F | -40°F | €200.94 | |
| J | HPS106GP | Steel | 1 3/8" | Double Sealed | Steel | 6550 lbs. | 4000 lbs. | 250°F | -40°F | €211.77 | |
| J | HPS104TR | Steel | 1 1/4" | Double Sealed | Steel | 6550 lbs. | 4000 lbs. | 250°F | -40°F | €197.25 | |
| J | HPS103TP2 | Steel | 1 1/4" | Double Sealed | Steel | 5750 lbs. | 3450 lbs. | 250°F | -40°F | €242.22 | |
| J | HPS103GP2A | Steel | 1 1/4" | Double Sealed | Steel | 5750 lbs. | 3450 lbs. | 250°F | -40°F | €187.19 | |
| J | HPS103GP2 | Steel | 1 1/4" | Double Sealed | Steel | 5750 lbs. | 3450 lbs. | 250°F | -40°F | €161.96 | |
| J | HPS102TR | Steel | 1 1/8" | Double Sealed | Steel | 4450 lbs. | 3150 lbs. | 250°F | -40°F | €199.36 | |
| J | HPS102GR | Steel | 1 1/8" | Double Sealed | Steel | 5750 lbs. | 3450 lbs. | 250°F | -40°F | €182.14 | |
| J | HPS102GPE | Steel | 1 1/8" | Double Sealed | Steel | 5750 lbs. | 3450 lbs. | 250°F | -40°F | €72.56 | |
| J | HPS102GP | Steel | 1 1/8" | Double Sealed | Steel | 5750 lbs. | 3450 lbs. | 250°F | -40°F | €154.43 | |
| H | 7MC3-6311C3 | Steel | 55 mm | Open | Alloy, Steel | 71500N | 45000N | 120°C | -40°C | €1,249.83 | |
| C | DC208TT5 | Steel | 1 1/8" | Double Sealed | Steel | 6550 lbs. | 4000 lbs. | 250°F | -40°F | €145.77 | |
| J | HPS100GP | Steel | 1" | Double Sealed | Steel | 4400 lbs. | 2540 lbs. | 250°F | -40°F | €131.17 | |
| H | 7MC3-6322C3 | Steel | 110 mm | Open | Alloy, Steel | - | 179000N | 120°C | -40°C | €2,928.05 | |

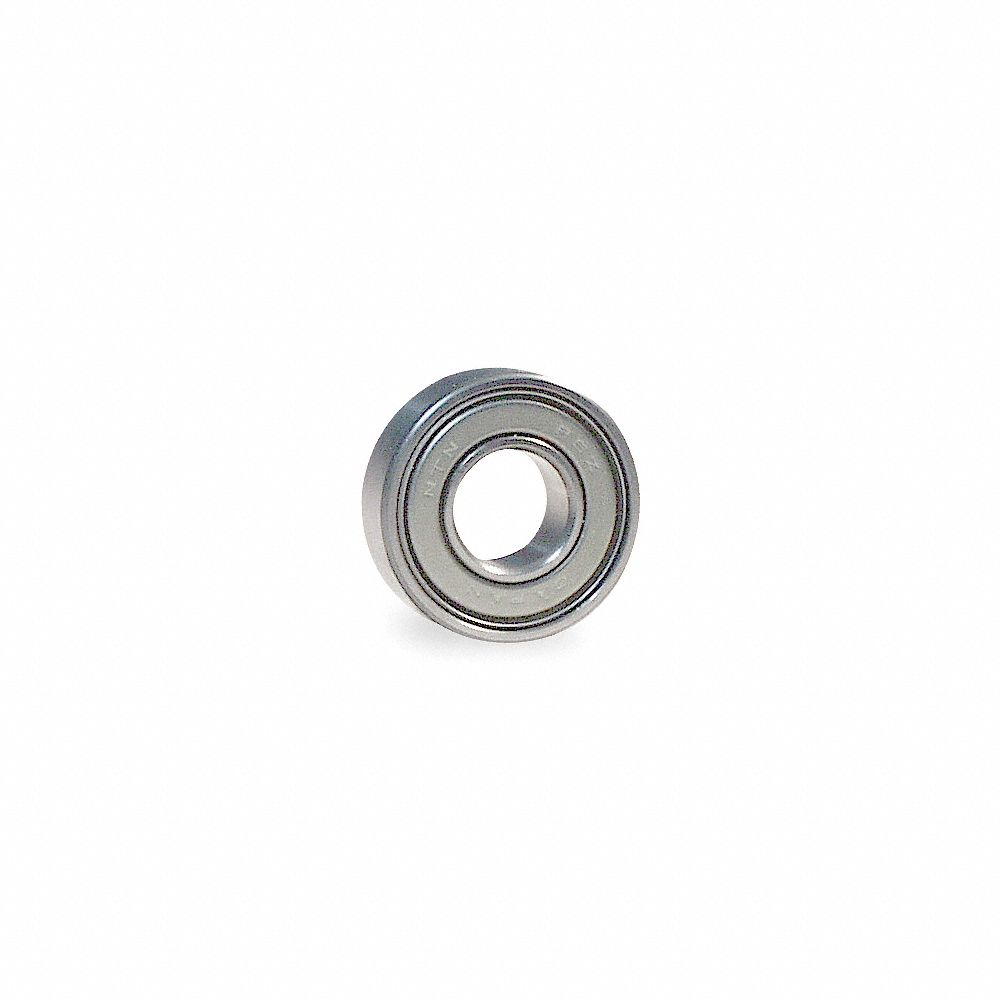

| K | 6208ZZC3L627 | Steel | 40 mm | Double Shielded | Alloy, Steel | - | - | - | - | €61.65 | |
| H | 7MC3-6316C3 | Steel | 80 mm | Open | Alloy, Steel | 123000N | 86500N | 120°C | -40°C | €1,717.17 | |
| H | 7MC3-6220C3 | Steel | 100 mm | Open | Alloy, Steel | 135900N | 93000N | 120°C | -40°C | €2,262.68 | |
| H | 7MC3-6226C3 | Steel | 130 mm | Open | Alloy, Steel | 185000N | 146000N | 120°C | -40°C | €3,293.10 | |
| H | 7MC3-6315C3 | Steel | 75 mm | Open | Alloy, Steel | 126000N | 77000N | 120°C | -40°C | €1,555.93 | |
| I | R12ZZC3/L627 | Steel | 3/4" | Double Shielded | Alloy, Steel | 6100N | 3950N | 120°C | -40°C | €48.50 | |
| H | 7MC3-6330C3 | Steel | 150 mm | Open | Alloy, Steel | 274000N | 284000N | 120°C | -40°C | €5,640.92 | |
| H | 7MC3-6328C3 | Steel | 140 mm | Open | Alloy, Steel | 280000N | 246000N | 120°C | -40°C | €4,958.82 |
