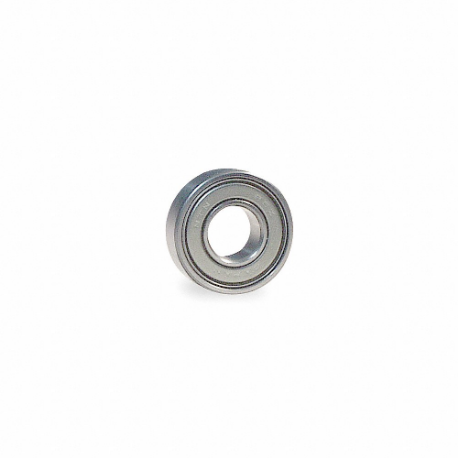

NTN 627ZZC3/L627 Radial Ball Bearing, 627, Dbl Shield, 7 mm Bore, 22 mm Od, 7 mm Width, Alloy Steel Ring
Item: CT4GUBModel: 627ZZC3/L627Cross Ref: 1L002
7 In Stock
Ships within 2 days via
13.00% off
€14.45 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Radial Ball Bearing |
| Ball Material | Alloy, Steel |
| Bearing Industry Number | 627 |
| Bore Dia. | 7 mm |
| Cage Material | Steel |
| Cage Type | Pressed |
| Closure | Double Shielded |
| Closure & Seal Type | Double Shielded |
| Dynamic Load Capacity | 3700N |
| Dynamic Radial Load Capacity | 3700N |
| Fillet Radius | 0.3 mm |
| Finish | Chrome Plated |
| Included Retaining Ring | No |
| Iso Rating | Class 0 |
| Lubricant Material | SRI 2 |
| Max. Speed | 32000 RPM |
| Max. Temp. | 120°C |
| Min. Temp. | -40°C |
| No. Of Rows | 1 |
| Outer Ring Width | 7 mm |
| Outside Dia. | 22 mm |
| Retaining Ring Groove | No |
| Ring Material | Alloy, Steel |
| Shield Material | Metal |
| Static Load Capacity | 1400N |
| Static Radial Load Capacity | 1400N |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.2 |
| Ship length (cm) | 2.2 |
| Ship width (cm) | 0.7 |
| Country of Origin | JP |
Product Variants
| Product | Model | Cage Material | Bore Dia. | Closure | Ball Material | Dynamic Load Capacity | Static Load Capacity | Max. Temp. | Min. Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CDS209TTR6P | Nylon | 1.53" | Double Sealed | Steel | 7350 lbs. | 4600 lbs. | 250°F | -40°F | €337.11 | |
|
CDS211TTR23 | Nylon | 1.78" | Double Sealed | Steel | 9750 lbs. | 6550 lbs. | 250°F | -40°F | €440.37 | |
 |
DC208TT | Steel | 1 1/8" | Double Sealed | Steel | 6550 lbs. | 4000 lbs. | 250°F | -40°F | €264.00 | |
 |
DC208TT10 | Steel | 1 1/2" | Double Sealed | Steel | 6550 lbs. | 4000 lbs. | 250°F | -40°F | €175.92 | |
|
DC208TT5 | Steel | 1 1/8" | Double Sealed | Steel | 6550 lbs. | 4000 lbs. | 250°F | -40°F | €145.77 | |
|
DC208TT6 | Steel | - | Double Sealed | Steel | 6550 lbs. | 4000 lbs. | 250°F | -40°F | €203.48 | |
|
DC208TT8 | Steel | 1 1/8" | Double Sealed | Steel | 6550 lbs. | 4000 lbs. | 250°F | -40°F | €168.10 |
