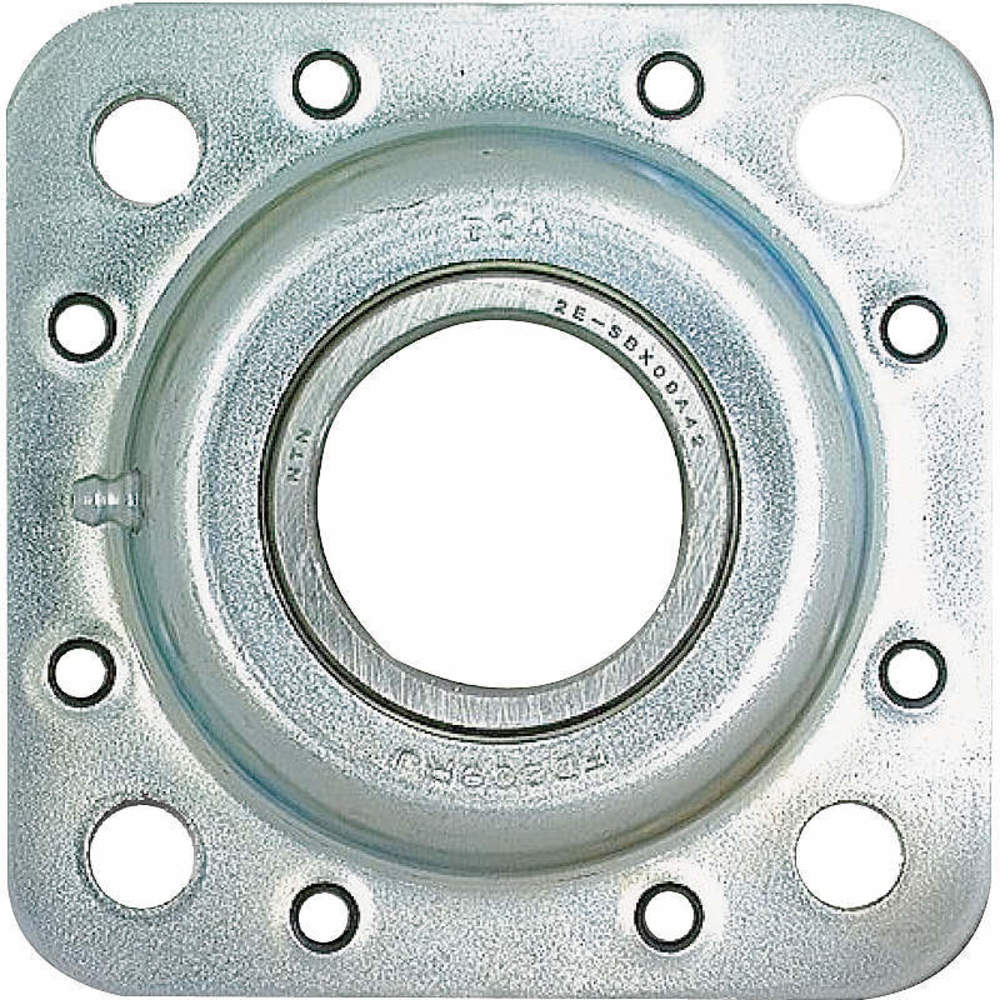

NTN FD211RBA Radial Ball Bearing Nylon 2.1870 Inch Width
Item: AE2YTHModel: FD211RBACross Ref: 4ZZA9
7 In Stock
Ships within 2 days via
10.00% off
€352.98 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Agricultural Disc Bearing |
| Abec Rating | 1 |
| Abec Tolerance | 1 |
| Application | Severe Tillage |
| Ball Material | Steel |
| Bearing Industry Number | FD211RBA |
| Bearing Material | Steel |
| Bearing Type | Ball |
| Bolt Circle Diameter | 5 1/2" |
| Bore Dia. | 2.187" |
| Bore Shape | Round |
| Bore Size | 2.187" |
| Bore Size Tolerance | -0.0006" to +0.0006" |
| Bore Tolerance | -0.0006" to 0" |
| Cage Material | Nylon |
| Closure | Double Sealed |
| Dynamic Load Capacity | 9800 lbs. |
| Dynamic Radial Load Capacity | 9800 lbf. |
| Finish | Silver Plated |
| Flange Size | 5.5000" Square |
| Flange Size | 5 1/2" |
| Flange Type | Flanged |
| Housing Material | Alloy Steel |
| Iso Rating | Class 0 |
| Lubrication | Shell Alvania #3 |
| Max. Speed | 430 RPM |
| Maximum Temperature | 250°F |
| Minimum Temperature | -40°F |
| Number Of Mount Holes | 12 |
| Number Of Rows | 1 |
| Outside Dia. | 5 1/2" |
| Outside Dia. Tolerance | -0.02" to +0.02" |
| Outside Diameter | 5.5" |
| Overall Width | 2.187" |
| Resistance Properties | Corrosion Resistant, Rust Resistant |
| Ring Material | Alloy Steel |
| Ring Material Grade | Grade 52174 |
| Seal Material | Nitrile Rubber |
| Seal Type | Contact |
| Shield Material | Metal |
| Static Load Capacity | 6550 lbs. |
| Static Radial Load Capacity | 6550 lbf. |
| Temp. Range | -13°F to +250°F |
| Width | 2.187" |
Shipping Info:
| Ship weight (kg) | 2.33 |
| Ship height (cm) | 13.97 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 5.55 |
| HS code | 8482105056 |
| Country of Origin | JP |
Product Variants
| Product | Model | Cage Material | Closure | Ball Material | Bore Dia. | Outside Dia. | Outer Ring Width | Max. Speed | Dynamic Load Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CDS209TTR6P | Nylon | Double Sealed | Steel | 1.53" | 5" | - | 520 RPM | 7350 lbs. | €357.55 | |
|
CDS211TTR23 | Nylon | Double Sealed | Steel | 1.78" | 4.438" | - | 450 RPM | 9750 lbs. | €472.73 | |
 |
DC208TT | Steel | Double Sealed | Steel | 1 1/8" | 3.149" | - | 560 RPM | 6550 lbs. | €274.57 | |
 |
DC208TT10 | Steel | Double Sealed | Steel | 1 1/2" | 3.149" | - | 560 RPM | 6550 lbs. | €194.83 | |
|
DC208TT5 | Steel | Double Sealed | Steel | 1 1/8" | 3.149" | - | 560 RPM | 6550 lbs. | €151.63 | |
|
DC208TT6 | Steel | Double Sealed | Steel | - | 3.149" | - | 560 RPM | 6550 lbs. | €218.38 | |
|
DC208TT8 | Steel | Double Sealed | Steel | 1 1/8" | 3.149" | - | 560 RPM | 6550 lbs. | €180.68 |
