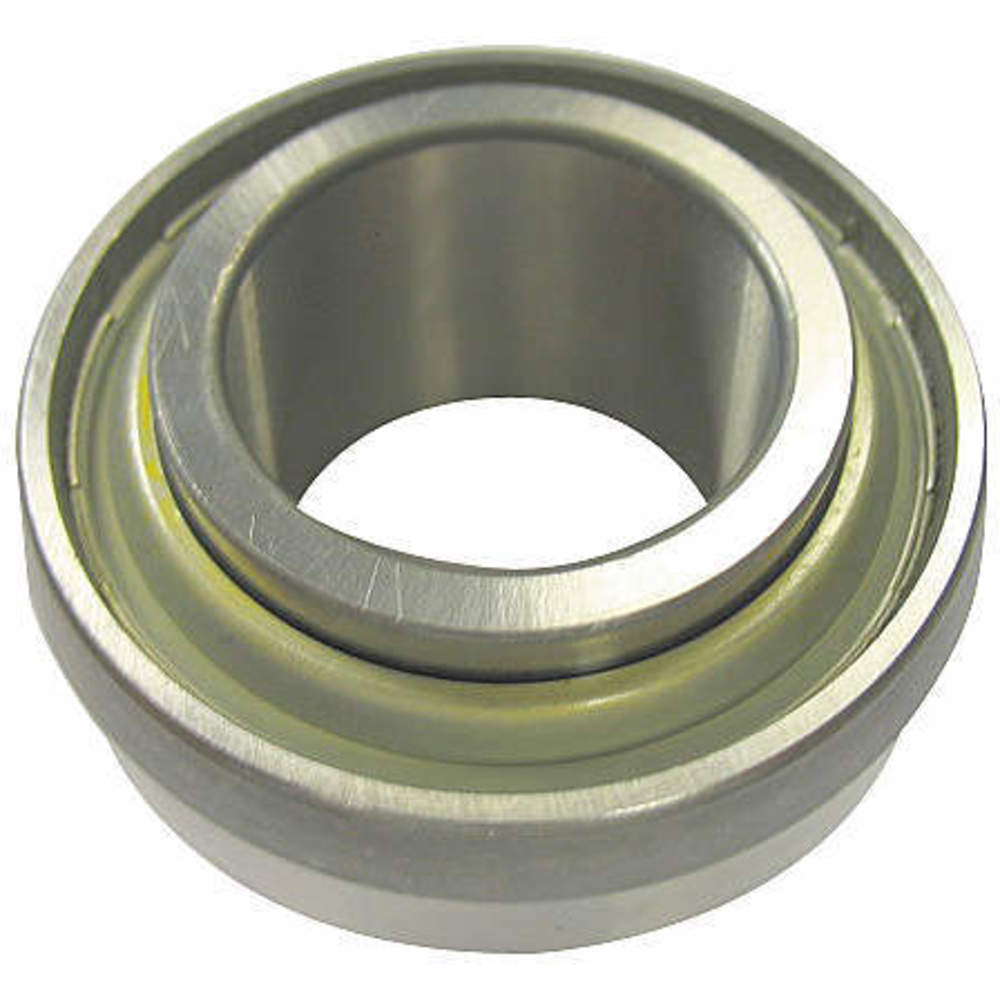

NTN DS208TT2A Radial Ball Bearing Nylon 1.6875 Inch Width
Item: AE2YPZModel: DS208TT2ACross Ref: 4ZYV7
7 In Stock
Ships within 2 days via
10.00% off
€280.03 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Agricultural Disc Bearing |
| Abec Rating | 1 |
| Abec Tolerance | 1 |
| Bearing Material | Steel |
| Bearing Type | Ball |
| Bore Dia. | 1 1/2" |
| Bore Tolerance | -0.005" to +0.005" |
| Cage Material | Nylon |
| Dynamic Load Capacity | 6550 lbs. |
| Flange Size | Not Applicable |
| Lubrication | Shell Alvania #3 |
| Max. Speed | 560 RPM |
| Outside Dia. | 3.149" |
| Outside Dia. Tolerance | -0.001" to +0.001" |
| Seal Material | Nbr |
| Static Load Capacity | 4000 lbs. |
| Temp. Range | -13°F to +250°F |
| Width | 1.687" |
Shipping Info:
| Ship weight (kg) | 0.68 |
| Ship height (cm) | 8 |
| Ship length (cm) | 8 |
| Ship width (cm) | 4.28 |
| HS code | 8482105052 |
| Country of Origin | JP |
Product Variants
| Product | Model | Cage Material | Closure | Ball Material | Bore Dia. | Outside Dia. | Outer Ring Width | Max. Speed | Dynamic Load Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CDS209TTR6P | Nylon | Double Sealed | Steel | 1.53" | 5" | - | 520 RPM | 7350 lbs. | €357.55 | |
|
CDS211TTR23 | Nylon | Double Sealed | Steel | 1.78" | 4.438" | - | 450 RPM | 9750 lbs. | €472.73 | |
 |
DC208TT | Steel | Double Sealed | Steel | 1 1/8" | 3.149" | - | 560 RPM | 6550 lbs. | €274.57 | |
 |
DC208TT10 | Steel | Double Sealed | Steel | 1 1/2" | 3.149" | - | 560 RPM | 6550 lbs. | €194.83 | |
|
DC208TT5 | Steel | Double Sealed | Steel | 1 1/8" | 3.149" | - | 560 RPM | 6550 lbs. | €151.63 | |
|
DC208TT6 | Steel | Double Sealed | Steel | - | 3.149" | - | 560 RPM | 6550 lbs. | €218.38 | |
|
DC208TT8 | Steel | Double Sealed | Steel | 1 1/8" | 3.149" | - | 560 RPM | 6550 lbs. | €180.68 |
