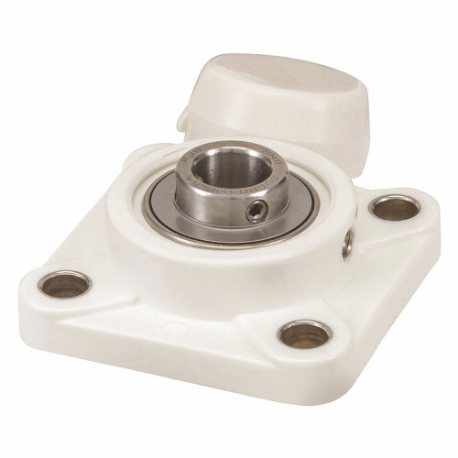

NTN SUCFPL208-24CCFG1 Flange Bearing, 4 Bolt, 1 1/2 Inch Bore, Polymer, Set Screws, 5 7/64 Inch Length, Square
Item: CT4GJVModel: SUCFPL208-24CCFG1Cross Ref: 406U45
7 In Stock
Ships within 2 days via
13.00% off
€573.91 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bearing |
| Application | Food And Beverage |
| Back Side To Center Width | 0.906" |
| Bore Dia. | 1 1/2" |
| Bore Type | Cylindrical |
| Closure Type | Double Sealed |
| Dynamic Load Capacity | 5125 lbf. |
| Flange Thickness | 0.656" |
| Grade | Grade 440C |
| Housing Material | Polymer |
| Housing Material Finish | Unfinished |
| Housing Material Grade | PBT - Thermoplastic |
| Housing Type | Square |
| Included | (4) Set Screws |
| Included Bearing | SUC208-24FG1 |
| Included Bearing Cap | Closed Cap |
| Insert Material | Stainless Steel |
| Insert Type | Radial Ball |
| Lubricant Material Grade | FDA/USDA-H1 Solid Grease |
| Lubrication Openings | None |
| Max. Speed | 3300 RPM |
| Max. Temp. | 250°F |
| Min. Temp. | -4°F |
| Mount Hole Center To Center Height | 4.016" |
| Mount Hole Center To Center Length | 4.016" |
| Mount Hole Size | 0.551" |
| Mounting Bolt Size | 1/2" |
| No. Of Mounting Holes | 4 |
| Overall Height | 5.109" |
| Overall Length | 5.109" |
| Overall Width | 2.078" |
| Resistance Properties | Corrosion Resistant |
| Rolling Element Rows | 1 |
| Seal Material | Silicone |
| Seal Type | Contact |
| Shaft Locking Type | Set Screw |
| Static Radial Load Capacity | 4092 lbf. |
| Sub-brand | Sentinel |
Shipping Info:
| Ship weight (kg) | 0.97 |
| Ship height (cm) | 12.98 |
| Ship length (cm) | 12.98 |
| Ship width (cm) | 5.28 |
Product Variants
| Product | Model | Bore Dia. | Insert Material | Housing Material | Overall Height | Overall Width | Dynamic Load Capacity | Bearing Insert Material | Bolt Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SUCNFL208-24C0FG1 | 1 1/2" | Stainless Steel | Polymer | 3 15/16" | 2 51/64" | 5126 lbf. | Stainless Steel | - | €667.79 | |
 |
SUCFL208-24C0FG1 | 1 1/2" | Stainless Steel | Stainless Steel | 3 59/64" | 2 1/32" | 5125 lbf. | Stainless Steel | - | €916.65 | |
|
SUCNFL206-20C0FG1 | 1 1/4" | Stainless Steel | Polymer | 3 9/64" | 2 1/4" | 3440 lbf. | Stainless Steel | - | €523.65 | |
 |
SUCNFL206-20CCFG1 | 1 1/4" | Stainless Steel | Polymer | 3 9/64" | 2 1/4" | 3440 lbf. | Stainless Steel | - | €537.81 | |
|
SUCNFL207-20C0FG1 | 1 1/4" | Stainless Steel | Polymer | 3 17/32" | 2 27/64" | 4519 lbf. | Stainless Steel | - | €581.75 | |
 |
SUCFL207-20CCFG1 | 1 1/4" | Stainless Steel | Stainless Steel | 3 33/64" | 1 3/4" | 4510 lbf. | Stainless Steel | 1/2" | €855.53 | |
|
SUCFL207-20C0FG1 | 1 1/4" | Stainless Steel | Stainless Steel | 3 33/64" | 1 3/4" | 4510 lbf. | Stainless Steel | - | €812.18 |
