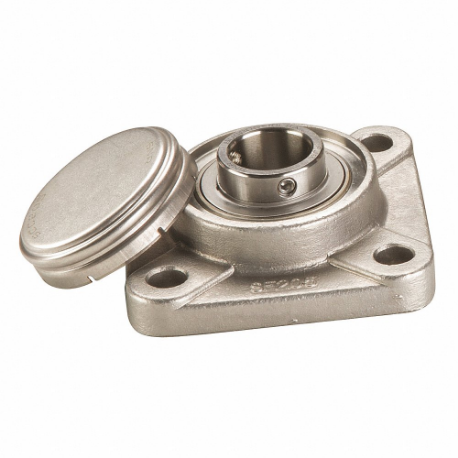

NTN SUCF206-20CCFG1 Flange Bearing, 4 Bolt, 1 1/4 Inch Bore, Ss, Set Screws, 4 1/4 Inch Length, 1 37/64 Inch Width
Item: CT4GLBModel: SUCF206-20CCFG1Cross Ref: 406V14
7 In Stock
Ships within 2 days via
10.00% off
€630.61 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bearing |
| Application | Agriculture, Automotive, Cosmetic/Pharmaceutical, Food Processing, Industrial Machinery, Machine Tools, Material Handling, Refinery/Petrochemical |
| Back Side To Center Width | 0.709" |
| Bearing Insert Material | Stainless Steel |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | 440C |
| Bore Dia. | 1 1/4" |
| Bore Type | Cylindrical |
| Closure | Double Sealed |
| Closure Type | Double Sealed |
| Dynamic Load Capacity | 3440 lbf. |
| Expansion Type | Fixed |
| Flange Thickness | 35/64" |
| Grade | Grade 440C |
| Housing Material | Stainless Steel |
| Housing Material Finish | Unfinished |
| Housing Type | Square |
| Included Bearing Cap | Closed Cap |
| Includes | (2) Set Screw |
| Insert Material | Stainless Steel |
| Insert Type | Radial Ball |
| Lubricant Material | FDA, USDA-H1 Solid Grease |
| Lubricant Material Grade | FDA/USDA-H1 Solid Grease |
| Lubrication Openings | None |
| Max. Speed | 4300 RPM |
| Max. Temp. | 250°F |
| Minimum Temperature | -20°F |
| Mount Hole Center-to-center Height | 3 17/64" |
| Mount Hole Size | 0.472" |
| Mounting Bolt Size | 7/16" |
| Number Of Mounting Holes | 4 |
| Overall Height | 4 1/4" |
| Overall Length | 4 1/4" |
| Overall Width | 1 37/64" |
| Resistance Properties | Corrosion Resistant |
| Rolling Element Rows | 1 |
| Seal Material | Silicone |
| Seal Type | Contact |
| Shaft Locking Type | Set Screws |
| Static Radial Load Capacity | 2585 lbf. |
| Sub-brand | Sentinel |
Shipping Info:
| Ship weight (kg) | 1.12 |
| Ship height (cm) | 10.8 |
| Ship length (cm) | 10.8 |
| Ship width (cm) | 4.01 |
Product Variants
| Product | Model | Number Of Mounting Holes | Housing Type | Overall Length | Flange Thickness | Housing Material | Overall Width | Overall Height | Mount Hole Center-to-center Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SUCNFL208-24C0FG1 | 2 | Rhombus | 6 7/8" | 25/32" | Polymer | 2 51/64" | 3 15/16" | 5 21/32" | €749.38 | |
 |
SUCFL208-24C0FG1 | 2 | Rhombus | 6 49/64" | 19/32" | Stainless Steel | 2 1/32" | 3 59/64" | 5 43/64" | €1,036.22 | |
|
SUCNFL206-20C0FG1 | 2 | Rhombus | 5 53/64" | 33/64" | Polymer | 2 1/4" | 3 9/64" | 4 39/64" | €582.53 | |
 |
SUCNFL206-20CCFG1 | 2 | Rhombus | 5 53/64" | 33/64" | Polymer | 2 1/4" | 3 9/64" | 4 39/64" | €604.52 | |
|
SUCNFL207-20C0FG1 | 2 | Rhombus | 6 13/32" | 5/8" | Polymer | 2 27/64" | 3 17/32" | 5 7/64" | €709.82 | |
 |
SUCFL207-20CCFG1 | 2 | Rhombus | 5 13/32" | 19/32" | Stainless Steel | 1 3/4" | 3 33/64" | 5 1/8" | €999.24 | |
|
SUCFL207-20C0FG1 | 2 | Rhombus | 5 13/32" | 19/32" | Stainless Steel | 1 3/4" | 3 33/64" | 5 1/8" | €977.97 |
