MKT FASTENING Grade 316 Standard Wedge Anchors
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1| Style | Model | Thread Size | Anchor Length | Anchor Dia. | Icc Approved For Cracked Concrete | Min. Embedment | Max. Work Thickness | Ultimate Shear | Ultimate Tension | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 2711200S | 1"-8 | 12" | 1" | No | 4 1/2" | 3" | 28023 lbs. | 24375 lbs. | 4 | €399.22 | |
| B | 271900S | 1"-8 | 9" | 1" | No | 4 1/2" | 4 1/2" | 28023 lbs. | 15829 lbs. | 4 | €301.92 | |
| C | 271600S | 1"-8 | 6" | 1" | No | 4 1/2" | 1 1/2" | 28023 lbs. | 15829 lbs. | 4 | €213.62 | |
| D | 271270S | 1/2"-13 | 7" | 1/2" | No | 2 1/4" | 2 1/2" | 6828 lbs. | 5772 lbs. | 150 | €2,572.05 | |
| E | 271241SB | 1/2"-13 | 4 1/4" | 1/2" | No | 2 1/4" | 2" | 6828 lbs. | 5068 lbs. | 200 | €2,035.36 | |
| F | 271223S | 1/2"-13 | 2 3/4" | 1/2" | No | 2 1/4" | 1/2" | 6828 lbs. | 5068 lbs. | 10 | €62.59 | |
| G | 271233S | 1/2"-13 | 3 3/4" | 1/2" | No | 2 1/4" | 1 1/2" | 6828 lbs. | 5068 lbs. | 10 | €103.69 | |
| H | 271241S | 1/2"-13 | 4 1/4" | 1/2" | No | 2 1/4" | 2" | 6828 lbs. | 5068 lbs. | 10 | €106.79 | |
| I | 271251S | 1/2"-13 | 5 1/2" | 1/2" | No | 2 1/4" | 1" | 6828 lbs. | 5772 lbs. | 10 | €123.21 | |
| D | 271270S | 1/2"-13 | 7" | 1/2" | No | 2 1/4" | 2 1/2" | 6828 lbs. | 5772 lbs. | 10 | €204.85 | |
| J | 271413S | 1/4"-20 | 1 3/4" | 1/4" | No | 1 1/8" | 5/8" | 1472 lbs. | 1173 lbs. | 20 | €33.29 | |
| K | 271431S | 1/4"-20 | 3 1/4" | 1/4" | Yes | 1 1/8" | 1" | 1472 lbs. | 2711 lbs. | 20 | €50.26 | |
| L | 271421S | 1/4"-20 | 2 1/4" | 1/4" | No | 1 1/8" | 1 1/8" | 1472 lbs. | 1173 lbs. | 20 | €46.06 | |
| M | 273443S | 3/4"-10 | 4 3/4" | 3/4" | No | 3 3/8" | 1 3/8" | 15126 lbs. | 11975 lbs. | 5 | €200.91 | |
| N | 273481S | 3/4"-10 | 8 1/2" | 3/4" | No | 3 3/8" | 1 3/4" | 15126 lbs. | 16201 lbs. | 5 | €284.29 | |
| O | 273470S | 3/4"-10 | 7" | 3/4" | No | 3 3/8" | 1/4" | 15126 lbs. | 16201 lbs. | 5 | €249.37 | |
| P | 273461S | 3/4"-10 | 6 1/4" | 3/4" | No | 3 3/8" | 2 7/8" | 15126 lbs. | 11975 lbs. | 5 | €244.18 | |
| Q | 273410S | 3/4"-10 | 10" | 3/4" | No | 3 3/8" | 3 1/4" | 15126 lbs. | 16201 lbs. | 4 | €236.31 | |
| R | 273412S | 3/4"-10 | 12" | 3/4" | No | 3 3/8" | 5 1/4" | 15126 lbs. | 16201 lbs. | 4 | €289.34 | |
| S | 273451S | 3/4"-10 | 5 1/2" | 3/4" | No | 3 3/8" | 2 1/8" | 15126 lbs. | 11975 lbs. | 5 | €216.12 | |
| T | 273833S | 3/8"-16 | 3 3/4" | 3/8" | No | 1 5/8" | 2 1/8" | 3151 lbs. | 3556 lbs. | 20 | €110.84 | |
| U | 273833SB | 3/8"-16 | 3 3/4" | 3/8" | No | 1 5/8" | 2 1/8" | 3151 lbs. | 3556 lbs. | 400 | €1,791.14 | |
| V | 273821S | 3/8"-16 | 2 1/4" | 3/8" | No | 1 5/8" | 5/8" | 3151 lbs. | 2289 lbs. | 20 | €86.99 | |
| W | 273823S | 3/8"-16 | 2 3/4" | 3/8" | No | 1 5/8" | 1 1/8" | 3151 lbs. | 2289 lbs. | 20 | €95.42 | |
| X | 273830S | 3/8"-16 | 3" | 3/8" | No | 1 5/8" | 1 3/8" | 3151 lbs. | 2289 lbs. | 20 | €96.56 | |
| Y | 275831S | 5/8"-11 | 3 1/2" | 5/8" | No | 2 3/4" | 3/4" | 9659 lbs. | 5556 lbs. | 5 | €98.99 | |
| Z | 275881S | 5/8"-11 | 8 1/2" | 5/8" | No | 2 3/4" | 2 3/8" | 9659 lbs. | 9294 lbs. | 5 | €188.59 | |
| A1 | 2758700S | 5/8"-11 | 7" | 5/8" | No | 2 3/4" | 1 3/8" | 9659 lbs. | 9294 lbs. | 5 | €172.65 | |
| B1 | 275841S | 5/8"-11 | 4 1/2" | 5/8" | No | 2 3/4" | 1 3/4" | 9659 lbs. | 5556 lbs. | 5 | €142.97 | |

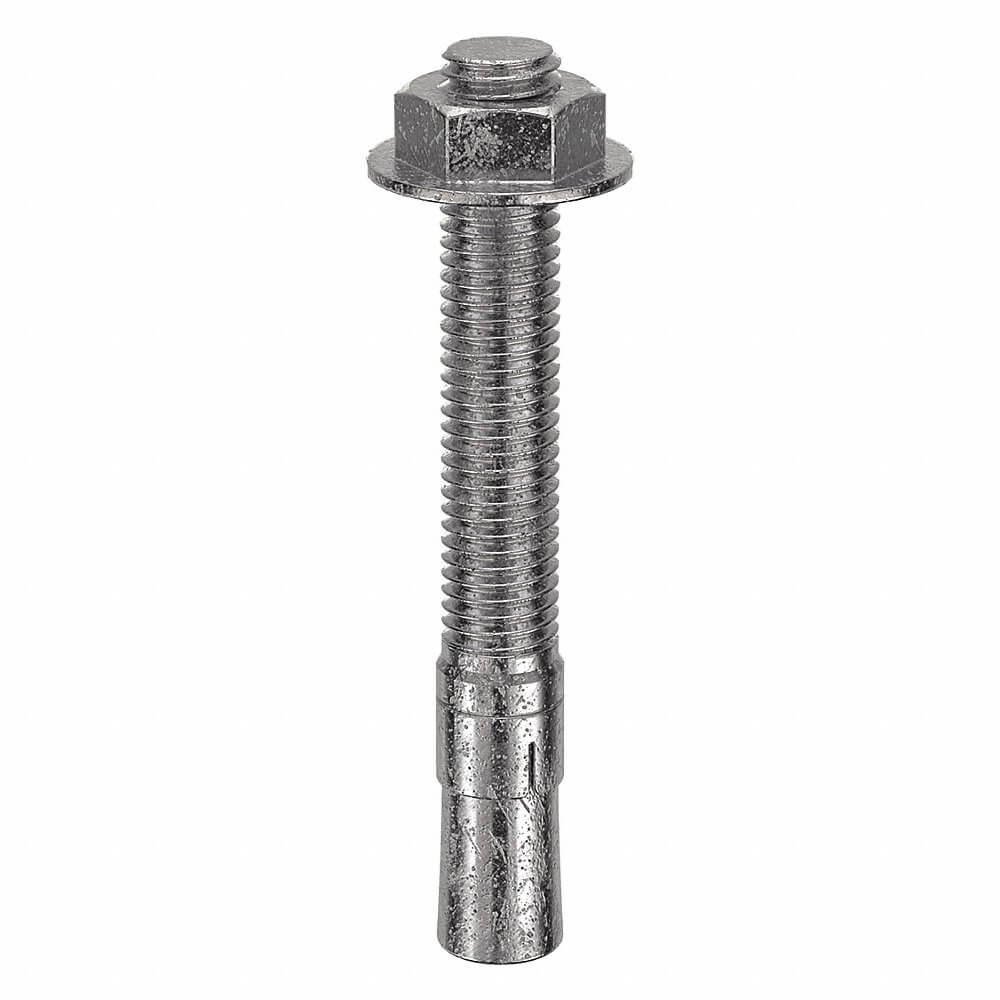

| C1 | 275850S | 5/8"-11 | 5" | 5/8" | No | 2 3/4" | 2 1/4" | 9659 lbs. | 5556 lbs. | 5 | €152.17 | |

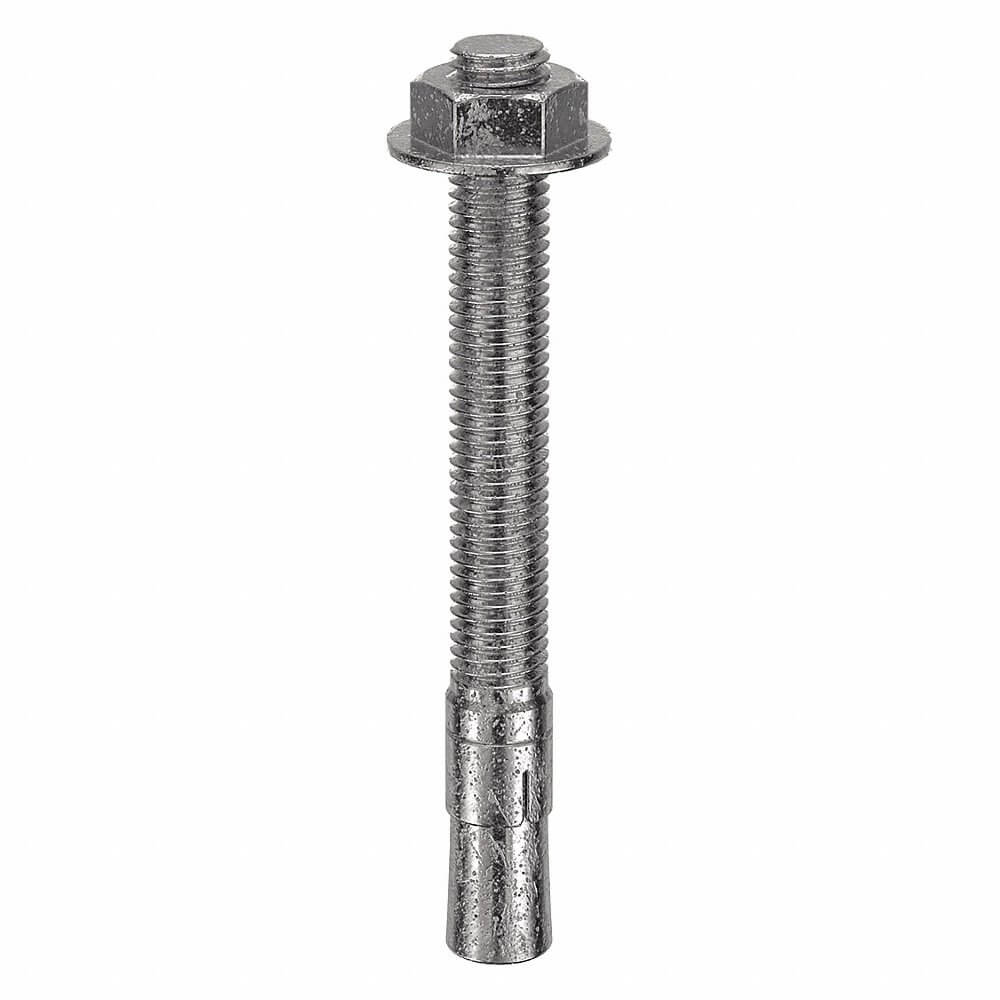

| D1 | 275860S | 5/8"-11 | 6" | 5/8" | No | 2 3/4" | 3/8" | 9659 lbs. | 9294 lbs. | 5 | €161.48 | |
| E1 | 277810S | 7/8"-9 | 10" | 7/8" | - | 4" | 2" | 21574 lbs. | 20288 lbs. | 4 | €258.55 | |
| F1 | 277880S | 7/8"-9 | 8" | 7/8" | No | 4" | 4" | 21574 lbs. | 13902 lbs. | 4 | €235.53 | |
| G1 | 277860S | 7/8"-9 | 6" | 7/8" | No | 4" | 2" | 21574 lbs. | 13902 lbs. | 4 | €205.81 |
