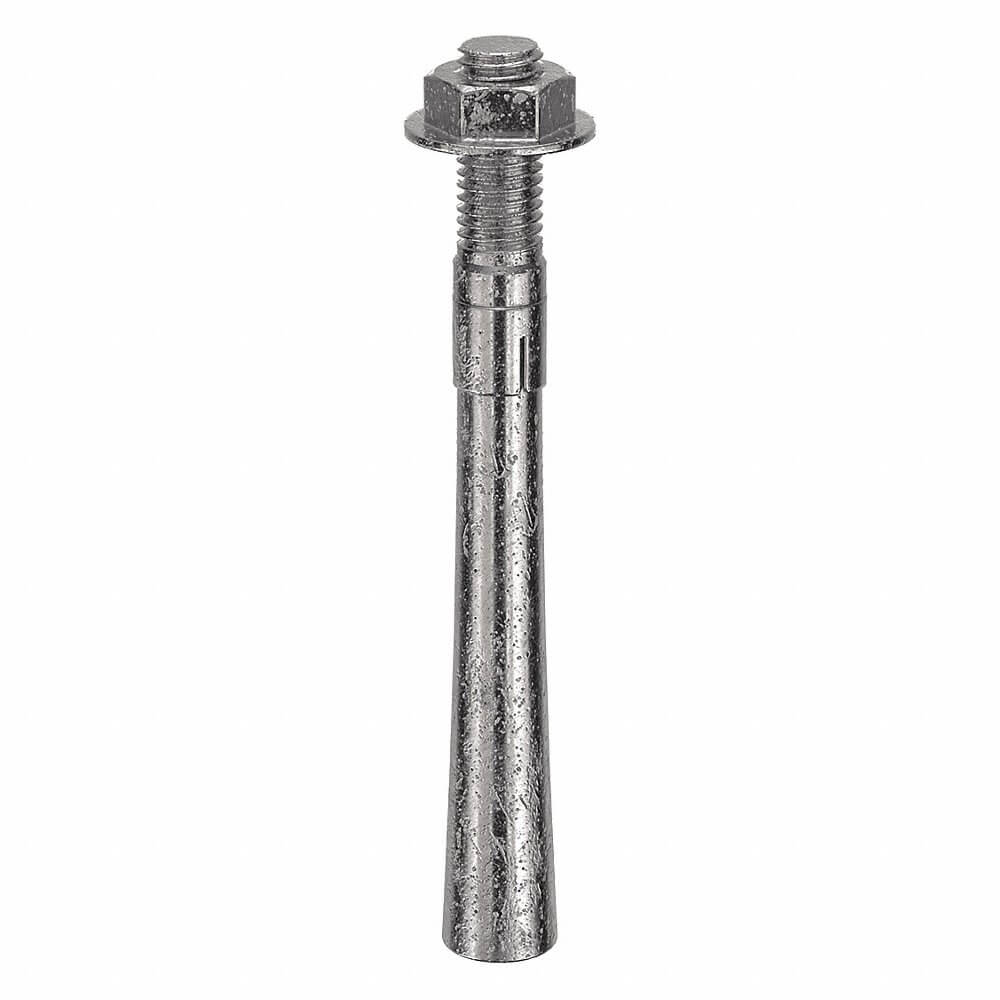

MKT FASTENING 2758700S Wedge Anchor, 5/8 In - 11 Thread Size, 7 In Anchor Lg., 1 1/2 In Thread Lg., Gr. 316
Get it by Tuesday, Feb 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€234.30 /pkg. of 5
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Wedge Anchor |
| Anchor Dia. | 5/8" |
| Anchor Diameter | 5/8" |
| Anchor Length | 7" |
| Compatible Material | Concrete |
| Display Qty | 5 |
| Drill Bit Size | 5/8" |
| Finish | Plain |
| Grade | Grade 316 |
| Icc Approved For Cracked Concrete | No |
| Icc Approved For Un-cracked Concrete | Yes |
| Includes | Nut And Washer |
| Industry Standards | Dot Metro Dade Nca No: 10-0928.01, Fm Approved, Gsa Specification Ff-S-325C, Group Ii, Type 4, Class 1, Icc Esr-3782 C-Stl, Zp 1/4" Ss, Ul Listed |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Max. Work Thickness | 1 3/8" |
| Maximum Installation Torque | 75 lbs.-ft. |
| Maximum Material Thickness | 3 5/8" |
| Maximum Ultimate Shear Strength | 9659 lbs. |
| Maximum Ultimate Tension Strength | 9294 lbs. |
| Min. Embedment | 2 3/4" |
| Minimum Installation Depth | 2 3/4" |
| Minimum Installation Torque | 40 lbs.-ft. |
| Minimum Material Thickness | 4" |
| Nut Width | 0.9375" |
| Overall Length | 7" |
| Seismic Approved | No |
| System Of Measurement | Imperial |
| Thread Length | 1 1/2" |
| Thread Size | 5/8"-11 |
| Ultimate Pullout (lb.) | 9294 |
| Ultimate Shear | 9659 lbs. |
| Ultimate Shear Strength (4,000 Psi Concrete) | 9659 lbs. |
| Ultimate Tension | 9294 lbs. |
| Ultimate Tension In 3000 Psi Concrete | 6957 lbs. |
| Ultimate Tension In 4000 Psi Concrete | 9294 lbs. |
| Washer Outside Diameter | 1.312" |
| Wedge Anchor Type | Standard |
Shipping Info:
| Ship weight (kg) | 1.51 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 18.03 |
| Ship width (cm) | 8.89 |
| HS code | 7316000000 |
| Country of Origin | US |
Product Variants
| Product | Model | Thread Size | Anchor Length | Anchor Dia. | Thread Length | Icc Approved For Cracked Concrete | Min. Embedment | Max. Work Thickness | Ultimate Tension In 4000 Psi Concrete | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
271421S | 1/4"-20 | 2 1/4" | 1/4" | 1 3/8" | No | 1 1/8" | 1 1/8" | 1015 lbs. | 20 | €65.81 | |
 |
271431S | 1/4"-20 | 3 1/4" | 1/4" | 2 1/4" | Yes | 1 1/8" | 1" | 2711 lbs. | 20 | €71.80 | |
 |
273821S | 3/8"-16 | 2 1/4" | 3/8" | 1 3/16" | No | 1 5/8" | 5/8" | 2367 lbs. | 20 | €110.98 | |
 |
273823S | 3/8"-16 | 2 3/4" | 3/8" | 1 5/8" | No | 1 5/8" | 1 1/8" | 2367 lbs. | 20 | €121.96 | |
 |
273830S | 3/8"-16 | 3" | 3/8" | 1 7/8" | No | 1 5/8" | 1 3/8" | 2367 lbs. | 20 | €129.48 | |
 |
273833S | 3/8"-16 | 3 3/4" | 3/8" | 2 5/8" | No | 1 5/8" | 2 1/8" | 5203 lbs. | 20 | €141.41 | |
 |
271223S | 1/2"-13 | 2 3/4" | 1/2" | 1 1/2" | No | 2 1/4" | 1/2" | 5068 lbs. | 10 | €79.30 |
