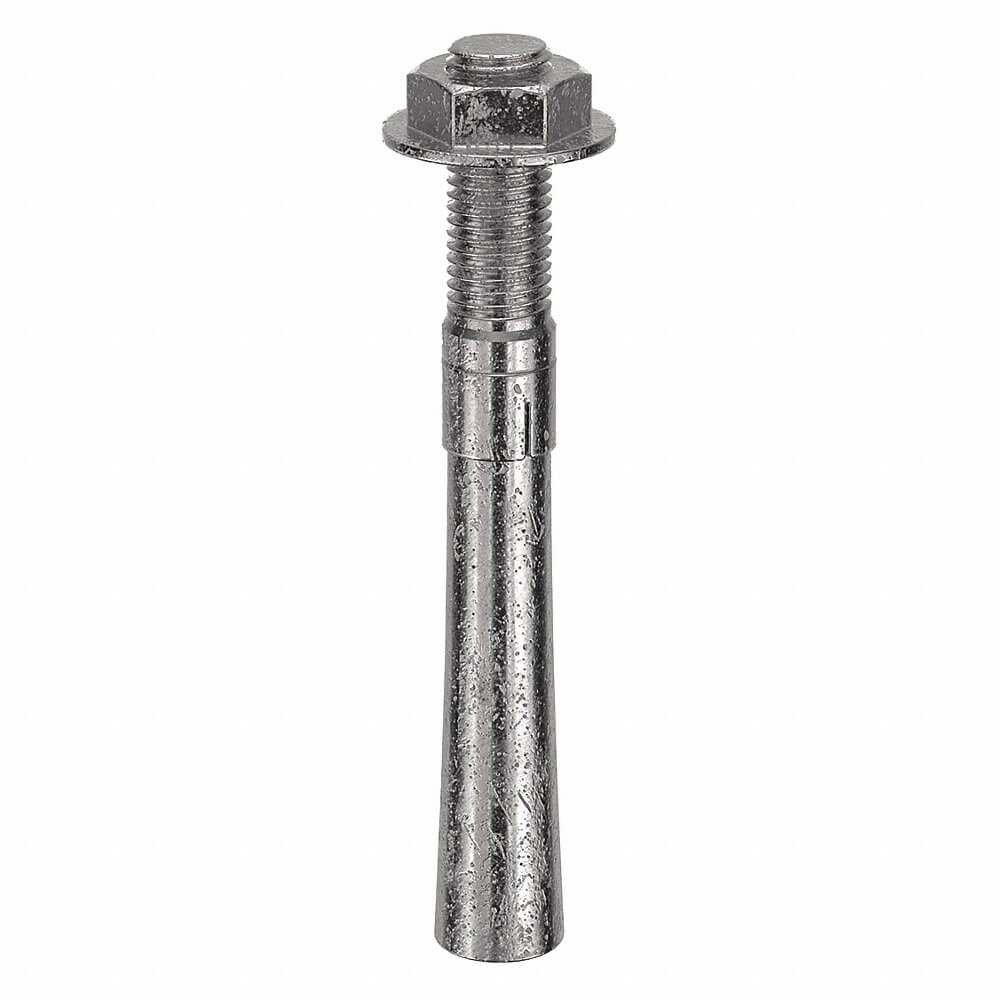

MKT FASTENING 277880S Wedge Anchor, 7/8 In - 9 Thread Size, 8 In Anchor Lg., 2 1/4 In Thread Lg., 7/8 In Anchor Dia., 4 In Max. Work Thk.
Item: AB6KMEModel: 277880SCross Ref: 21U936
7 In Stock
Ships within 2 days via
13.00% off
€245.67 /pkg. of 4
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Wedge Anchor |
| Anchor Length | 8" |
| Compatible Material | Concrete |
| Display Qty | 4 |
| Drill Bit Size | 7/8" |
| Finish | Plain |
| Grade | Grade 316 |
| Icc Approved For Cracked Concrete | No |
| Icc Approved For Un-cracked Concrete | Yes |
| Included | Nut And Washer |
| Industry Standards | Dot Metro Dade Nca No: 10-0928.01, Gsa Specification Ff-S-325C, Group Ii, Type 4, Class 1, Icc Esr-3782 C-Stl, Zp 1/4" Ss |
| Material | Stainless Steel |
| Material Grade/class | 316 |
| Max. Installation Torque | 225 lbs.-ft. |
| Max. Material Thickness | 3 1/8" |
| Max. Ultimate Shear Strength | 21574 lbs. |
| Max. Ultimate Tension Strength | 13902 lbs. |
| Max. Work Thickness | 4" |
| Min. Embedment | 4" |
| Min. Installation Depth | 4" |
| Min. Installation Torque | 125 lbs.-ft. |
| Min. Material Thickness | 6" |
| Nut Width | 1.3125" |
| Overall Length | 8" |
| Seismic Approved | No |
| System Of Measurement | Imperial |
| Thread Length | 2 1/4" |
| Thread Size | 7/8"-9 |
| Ultimate Pullout (lb.) | 13902 |
| Ultimate Shear | 21574 lbs. |
| Ultimate Shear Strength 4000 Psi Concrete | 21574 lbs. |
| Ultimate Tension | 13902 lbs. |
| Ultimate Tension Strength 3000 Psi Concrete | 9746 lbs. |
| Ultimate Tension Strength 4000 Psi Concrete | 13902 lbs. |
| Washer Outside Dia. | 1.75" |
| Wedge Anchor Type | Standard |
Shipping Info:
| Ship weight (kg) | 2.84 |
| Ship height (cm) | 8.26 |
| Ship length (cm) | 38.74 |
| Ship width (cm) | 13.34 |
| HS code | 7316000000 |
| Country of Origin | US |
Product Variants
| Product | Model | Anchor Dia. | Anchor Length | Thread Length | Max. Work Thickness | Min. Installation Depth | Drill Bit Size | Material Grade/class | Max. Material Thickness | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
271421S | 1/4" | 2 1/4" | 1 3/8" | 1 1/8" | 1 1/8" | 1/4" | 316 | 1 1/8" | 20 | €55.26 | |
 |
271431S | 1/4" | 3 1/4" | 2 1/4" | 1" | 1 1/8" | 1/4" | 316 | 1 7/8" | 20 | €63.09 | |
 |
273821S | 3/8" | 2 1/4" | 1 3/16" | 5/8" | 1 5/8" | 3/8" | 316 | 1/4" | 20 | €96.65 | |
 |
273823S | 3/8" | 2 3/4" | 1 5/8" | 1 1/8" | 1 5/8" | 3/8" | 316 | 3/4" | 20 | €106.02 | |
 |
273830S | 3/8" | 3" | 1 7/8" | 1 3/8" | 1 5/8" | 3/8" | 316 | 1" | 20 | €107.30 | |
 |
273833S | 3/8" | 3 3/4" | 2 5/8" | 2 1/8" | 1 5/8" | 3/8" | 316 | 1 3/4" | 20 | €123.16 | |
 |
271223S | 1/2" | 2 3/4" | 1 1/2" | 1/2" | 2 1/4" | 1/2" | 316 | 1/8" | 10 | €69.54 |
