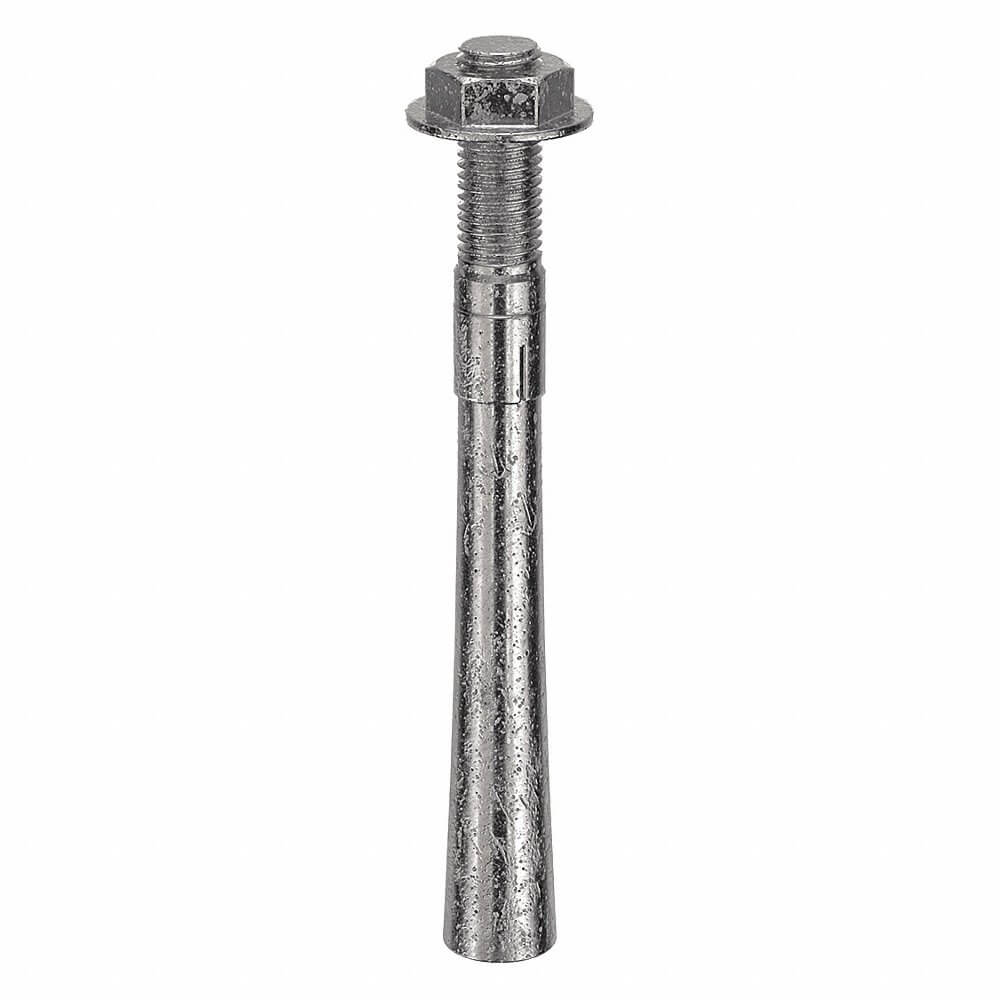

MKT FASTENING 277810S Wedge Anchor, 7/8 In - 9 Thread Size, 10 In Anchor Lg., 2 1/4 In Thread Lg., Gr. 316
Item: AB6KMFModel: 277810SCross Ref: 21U937
7 In Stock
Ships within 2 days via
13.00% off
€273.22 /pkg. of 4
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Wedge Anchor |
| Anchor Dia. | 7/8" |
| Anchor Length | 10" |
| Finish | Plain |
| Grade | Grade 316 |
| Included | Nut And Washer |
| Material | Stainless Steel |
| Max. Work Thickness | 2" |
| Min. Embedment | 4" |
| System Of Measurement | Imperial |
| Thread Length | 2 1/4" |
| Thread Size | 7/8"-9 |
| Ultimate Pullout (lb.) | 20288 |
| Ultimate Shear | 21574 lbs. |
| Ultimate Tension | 20288 lbs. |
| Ultimate Tension Strength 3000 Psi Concrete | 14378 lbs. |
| Ultimate Tension Strength 4000 Psi Concrete | 20288 lbs. |
| Wedge Anchor Type | Standard |
Shipping Info:
| Ship weight (kg) | 3.51 |
| Ship height (cm) | 8.26 |
| Ship length (cm) | 26.67 |
| Ship width (cm) | 13.34 |
| HS code | 7316000000 |
| Country of Origin | US |
Product Variants
| Product | Model | Anchor Dia. | Anchor Length | Thread Length | Max. Work Thickness | Min. Installation Depth | Drill Bit Size | Material Grade/class | Max. Material Thickness | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
271421S | 1/4" | 2 1/4" | 1 3/8" | 1 1/8" | 1 1/8" | 1/4" | 316 | 1 1/8" | 20 | €55.26 | |
 |
271431S | 1/4" | 3 1/4" | 2 1/4" | 1" | 1 1/8" | 1/4" | 316 | 1 7/8" | 20 | €63.09 | |
 |
273821S | 3/8" | 2 1/4" | 1 3/16" | 5/8" | 1 5/8" | 3/8" | 316 | 1/4" | 20 | €96.65 | |
 |
273823S | 3/8" | 2 3/4" | 1 5/8" | 1 1/8" | 1 5/8" | 3/8" | 316 | 3/4" | 20 | €106.02 | |
 |
273830S | 3/8" | 3" | 1 7/8" | 1 3/8" | 1 5/8" | 3/8" | 316 | 1" | 20 | €107.30 | |
 |
273833S | 3/8" | 3 3/4" | 2 5/8" | 2 1/8" | 1 5/8" | 3/8" | 316 | 1 3/4" | 20 | €123.16 | |
 |
271223S | 1/2" | 2 3/4" | 1 1/2" | 1/2" | 2 1/4" | 1/2" | 316 | 1/8" | 10 | €69.54 |
