MERSEN FERRAZ Protistor fuses, 750 to 1250VAC/1300VAC

Filter

Style	Model	Amps	Mounting	Connection/terminal Type	Connection/terminal Material	Ac Max. I R Breaking Capacity I1	Rated Voltage Ac Ul	Power Dissipation @ Rated Amps Value	Clearing I2t @ Rated Voltage	Pkg. Qty.	Price
A	D300751	160A	Bolted	Din 110 Blades	Copper	126 kA	1300V	46 W	21 sq. kA sec.	3	€2,366.81
B	B301025	160A	Bolted	Flush Ends	Brass	126 kA	1300V	46 W	21 sq. kA sec.	1	€742.98
C	B300749	160A	Bolted	Flush Ends	Brass	126 kA	1300V	46 W	21 sq. kA sec.	3	€2,732.56
C	E300752	160A	Bolted	Slotted Blades	Copper	126 kA	1300V	46 W	21 sq. kA sec.	1	€729.05
D	M301219	160A	Clip	Plain Blades	Copper	126 kA	1300V	46 W	21 sq. kA sec.	1	€995.63
C	F300661	200A	Bolted	Slotted Blades	Copper	126 kA	1300V	54 W	38 sq. kA sec.	1	€729.05
E	C301026	200A	Bolted	Flush Ends	Brass	126 kA	1300V	54 W	38 sq. kA sec.	1	€742.98
F	Z300609	200A	Bolted	Open Slot Blades	Copper	126 kA	1300V	54 W	38 sq. kA sec.	1	€844.47
G	A300518	250A	Bolted	Flush Ends	Brass	126 kA	1300V	61 W	72 sq. kA sec.	3	€2,732.56
H	D301027	250A	Bolted	Flush Ends	Brass	126 kA	1300V	61 W	72 sq. kA sec.	1	€742.98
I	B301163	250A	Clip	Plain Blades	Copper	126 kA	1300V	61 W	72 sq. kA sec.	3	€2,598.39
J	A300610	250A	Bolted	Open Slot Blades	Copper	126 kA	1300V	61 W	72 sq. kA sec.	1	€886.69
C	G300662	250A	Bolted	Slotted Blades	Copper	126 kA	1300V	61 W	72 sq. kA sec.	1	€729.05
K	F300546	250A	Bolted	Din 110 Blades	Copper	126 kA	1300V	61 W	72 sq. kA sec.	3	€2,366.81
C	R300717	280A	Bolted	Slotted Blades	Copper	126 kA	1300V	70 W	96 sq. kA sec.	1	€775.48
L	E301028	280A	Bolted	Flush Ends	Brass	126 kA	1300V	68 W	96 sq. kA sec.	1	€823.45
M	K300711	280A	Bolted	Din 110 Blades	Copper	126 kA	1300V	70 W	96 sq. kA sec.	1	€878.28
N	P300715	280A	Bolted	Flush Ends	Brass	126 kA	1300V	68 W	96 sq. kA sec.	3	€2,732.56
O	B300611	315A	Bolted	Open Slot Blades	Copper	126 kA	1300V	76 W	129 sq. kA sec.	1	€800.44
P	F301029	315A	Bolted	Flush Ends	Brass	126 kA	1300V	73 W	129 sq. kA sec.	1	€742.98
C	H300663	315A	Bolted	Slotted Blades	Copper	126 kA	1300V	76 W	129 sq. kA sec.	1	€775.48
Q	G300547	315A	Bolted	Din 110 Blades	Copper	126 kA	1300V	76 W	129 sq. kA sec.	1	€739.20
R	A300840	315A	Clip	Plain Blades	Copper	126 kA	1300V	76 W	129 sq. kA sec.	3	€2,430.85
S	B300519	315A	Bolted	Flush Ends	Brass	126 kA	1300V	73 W	129 sq. kA sec.	3	€2,732.56
T	G301030	350A	Bolted	Flush Ends	Brass	126 kA	1300V	76 W	178 sq. kA sec.	1	€742.98
C	J300664	350A	Bolted	Slotted Blades	Copper	126 kA	1300V	80 W	178 sq. kA sec.	1	€775.48
U	H300548	350A	Bolted	Din 110 Blades	Copper	126 kA	1300V	80 W	178 sq. kA sec.	3	€2,366.81
V	C300520	350A	Bolted	Flush Ends	Brass	126 kA	1300V	76 W	178 sq. kA sec.	3	€2,732.56
C	K300665	400A	Bolted	Slotted Blades	Copper	126 kA	1300V	80 W	308 sq. kA sec.	3	€2,326.42
W	D300613	400A	Bolted	Open Slot Blades	Copper	126 kA	1300V	80 W	308 sq. kA sec.	3	€2,533.41
X	D300521	400A	Bolted	Flush Ends	Brass	126 kA	1300V	76 W	308 sq. kA sec.	3	€2,732.56
Y	H301031	400A	Bolted	Flush Ends	Brass	126 kA	1300V	76 W	308 sq. kA sec.	1	€742.98

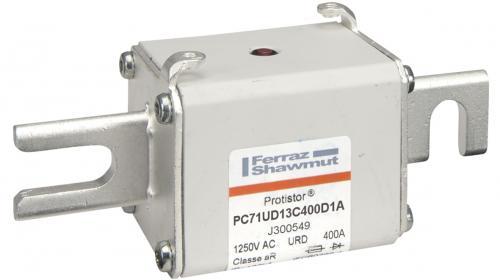

Z	J300549	400A	Bolted	Din 110 Blades	Copper	126 kA	1300V	80 W	308 sq. kA sec.	3	€2,498.48
A1	Q301222	400A	Clip	Plain Blades	Copper	126 kA	1300V	80 W	308 sq. kA sec.	3	€2,565.88
C	L300666	450A	Bolted	Slotted Blades	Copper	126 kA	1300V	95 W	378 sq. kA sec.	3	€2,531.47
B1	K300550	450A	Bolted	Din 110 Blades	Copper	126 kA	1300V	95 W	378 sq. kA sec.	3	€2,497.53
C1	E300522	450A	Bolted	Flush Ends	Brass	126 kA	1300V	87 W	378 sq. kA sec.	3	€3,090.15
D1	J301032	450A	Bolted	Flush Ends	Brass	126 kA	1300V	87 W	378 sq. kA sec.	1	€891.13
E1	F300523	500A	Bolted	Flush Ends	Brass	150 kA	1200V	90 W	441 sq. kA sec.	3	€3,090.15
F1	F300615	500A	Bolted	Open Slot Blades	Copper	150 kA	1200V	100 W	441 sq. kA sec.	3	€2,929.73
C	K301033	500A	Bolted	Flush Ends	Brass	150 kA	1200V	90 W	441 sq. kA sec.	1	€891.13
C	M300667	500A	Bolted	Slotted Blades	Copper	150 kA	1200V	100 W	441 sq. kA sec.	3	€2,531.47
C	L300551	500A	Bolted	Din 110 Blades	Copper	150 kA	1200V	100 W	441 sq. kA sec.	3	€2,497.53
G1	L301034	550A	Bolted	Flush Ends	Brass	150 kA	1200V	98 W	548 sq. kA sec.	1	€888.10
C	N300668	550A	Bolted	Slotted Blades	Copper	167 kA	1200V	112 W	548 sq. kA sec.	1	€843.83
H1	G300524	550A	Bolted	Flush Ends	Brass	150 kA	1200V	98 W	548 sq. kA sec.	3	€3,090.15
I1	M300552	550A	Bolted	Din 110 Blades	Copper	150 kA	1200V	112 W	548 sq. kA sec.	3	€2,497.53
J1	N300553	630A	Bolted	Din 110 Blades	Copper	167 kA	1100V	120 W	725 sq. kA sec.	3	€2,497.53
K1	M301035	630A	Bolted	Flush Ends	Brass	126 kA	1100V	105 W	820 sq. kA sec.	1	€888.10
L1	H300525	630A	Bolted	Flush Ends	Brass	150 kA	1100V	105 W	725 sq. kA sec.	3	€3,090.15
M1	P300669	630A	Bolted	Slotted Blades	Copper	167 kA	1100V	120 W	725 sq. kA sec.	3	€2,531.47
N1	M301288	700A	Bolted	Flush Ends	Brass	150 kA	1100V	105 W	1040 sq. kA sec.	3	€3,941.27
