MERSEN FERRAZ

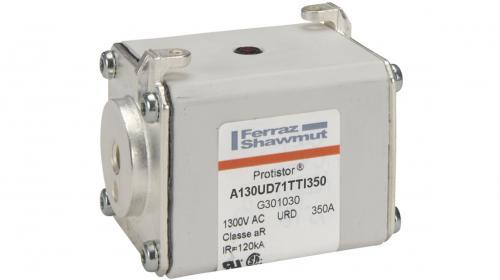

MERSEN FERRAZ G301030 A130UD71TTI350 Fuse, 350A

Item: CH4XNGModel: G301030Cross Ref: A130UD71TTI350

In Stock

Get it by Friday, Aug 21

€742.98 /unit

Add To Cart

Request a Quote

Payment

Delivery

Product Specifications:

Item	Fuse
Ac Max. I R Breaking Capacity I1	126 kA
Ac/dc	AC
Amps	350A
Body/insulating Material	Ceramic
Clearing I2t @ Rated Voltage	178 sq. kA sec.
Connection/terminal Material	Brass
Connection/terminal Type	Flush Ends
Finish	Silver Plated
Fuse Size	71
Height	56.5 mm
Indication System	Yes
Indication System Type	Striker
Length	74 mm
Melting I2t	22 sq. kA sec.
Mounting	Bolted
Power Dissipation @ Rated Amps Value	76 W
Product Group	Semiconductor Protection Fuses
Rated Voltage Ac Iec	1250V
Rated Voltage Ac Ul	1300V
Speed Characteristic	AR
Width	51 mm

Model	Amps	Mounting	Connection/terminal Type	Connection/terminal Material	Ac Max. I R Breaking Capacity I1	Rated Voltage Ac Ul	Power Dissipation @ Rated Amps Value	Clearing I2t @ Rated Voltage	Pkg. Qty.	Price
A300518	250A	Bolted	Flush Ends	Brass	126 kA	1300V	61 W	72 sq. kA sec.	3	€2,732.56
A300610	250A	Bolted	Open Slot Blades	Copper	126 kA	1300V	61 W	72 sq. kA sec.	1	€886.69
A300840	315A	Clip	Plain Blades	Copper	126 kA	1300V	76 W	129 sq. kA sec.	3	€2,430.85
B300519	315A	Bolted	Flush Ends	Brass	126 kA	1300V	73 W	129 sq. kA sec.	3	€2,732.56
B300611	315A	Bolted	Open Slot Blades	Copper	126 kA	1300V	76 W	129 sq. kA sec.	1	€800.44
B300749	160A	Bolted	Flush Ends	Brass	126 kA	1300V	46 W	21 sq. kA sec.	3	€2,732.56
B301025	160A	Bolted	Flush Ends	Brass	126 kA	1300V	46 W	21 sq. kA sec.	1	€742.98
