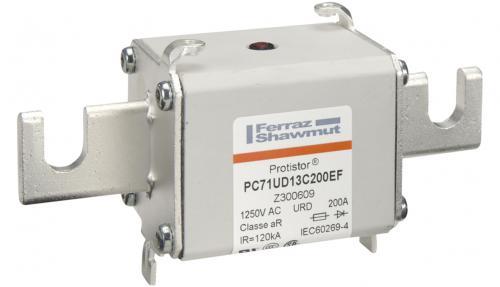

MERSEN FERRAZ Z300609 PC71UD13C200EF Fuse, 200A
Get it by Tuesday, Sep 1
€844.47 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse |
| Ac/dc | AC |
| Amps | 200A |
| Body/insulating Material | Ceramic |
| Clearing I2t @ Rated Voltage | 38 sq. kA sec. |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Open Slot Blades |
| Finish | Silver Plated |
| Fuse Size | 71 |
| Height | 56.5 mm |
| Indication System | Yes |
| Indication System Type | Striker |
| Length | 149.4 mm |
| Melting I2t | 4.7 sq. kA sec. |
| Mounting | Bolted |
| Power Dissipation @ Rated Amps Value | 54 W |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Ac Iec | 1250V |
| Rated Voltage Ac Ul | 1300V |
| Speed Characteristic | AR |
| Width | 51 mm |
Shipping Info:
| Ship weight (kg) | 1.61 |
| Ship height (cm) | 7.11 |
| Ship length (cm) | 17.4 |
| Ship width (cm) | 14 |
Product Variants
| Product | Model | Amps | Mounting | Connection/terminal Type | Connection/terminal Material | Ac Max. I R Breaking Capacity I1 | Rated Voltage Ac Ul | Power Dissipation @ Rated Amps Value | Clearing I2t @ Rated Voltage | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A300518 | 250A | Bolted | Flush Ends | Brass | 126 kA | 1300V | 61 W | 72 sq. kA sec. | 3 | €2,732.56 | |
 |
A300610 | 250A | Bolted | Open Slot Blades | Copper | 126 kA | 1300V | 61 W | 72 sq. kA sec. | 1 | €886.69 | |
 |
A300840 | 315A | Clip | Plain Blades | Copper | 126 kA | 1300V | 76 W | 129 sq. kA sec. | 3 | €2,430.85 | |
 |
B300519 | 315A | Bolted | Flush Ends | Brass | 126 kA | 1300V | 73 W | 129 sq. kA sec. | 3 | €2,732.56 | |
 |
B300611 | 315A | Bolted | Open Slot Blades | Copper | 126 kA | 1300V | 76 W | 129 sq. kA sec. | 1 | €800.44 | |
 |
B300749 | 160A | Bolted | Flush Ends | Brass | 126 kA | 1300V | 46 W | 21 sq. kA sec. | 3 | €2,732.56 | |
 |
B301025 | 160A | Bolted | Flush Ends | Brass | 126 kA | 1300V | 46 W | 21 sq. kA sec. | 1 | €742.98 |
